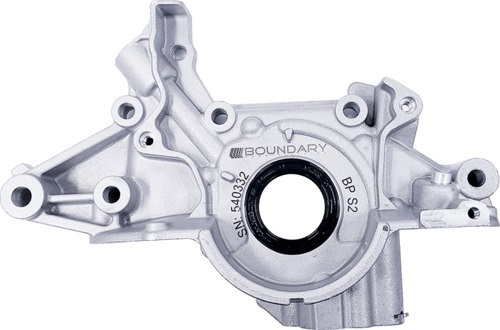

Boundary BP-S2 Stage 2 High Flow Oil Pump with Billet Gears

The Boundary BP-S2 is a precision-engineered Stage 2 high-flow oil pump assembly designed for Ford/Mazda BP I4 engines (1991.5-2005), including Mazda Miata, Ford Escort GT, and other BP-powered applications. This performance oil pump features upgraded billet steel gears and increased flow capacity to protect high-performance and racing engines.

Stage 2 Performance Upgrades:

• Machined Housing: Deeper pump pocket machined to accommodate larger gears for increased overall flow
• Billet Steel Gears: 4140 billet steel construction provides nearly 110,000 PSI yield strength versus less than 6,000 PSI in OEM powdered metal gears
• Increased Pressure: Factory shimmed with 2 shims to raise maximum warm pressure from 60 PSI to 72 PSI
• Enhanced Mid-Range Protection: Larger gears increase mid-range oil pressure and ensure VVT system compatibility
• Mirror-Finished Gears: Precision-machined with mirror finish for optimal flow and durability

Professional Assembly Process:

• Complete disassembly with ultrasonic cleaning and air blast of all components
• Hand de-burred and inspected by qualified machinists
• Blueprinted with specification sheet documenting critical clearances
• Anaerobic sealant applied to critical areas to reduce aeration and improve pump-up speed
• Assembly lubricant applied to all surfaces for fast oil flow on startup

Ideal Applications: The BP-S2 is recommended for engines with larger bearing clearances, high-performance builds, racing applications, and any BP engine requiring additional oil pressure to handle increased bearing loads. Made in the USA by Boundary Pumps in Dallas, Texas. Does not include crank seal.
