VDO Gauges A2C59514165 Marine 2-1/16" ViewLine Oil Temperature Gauge 120-300°F Black

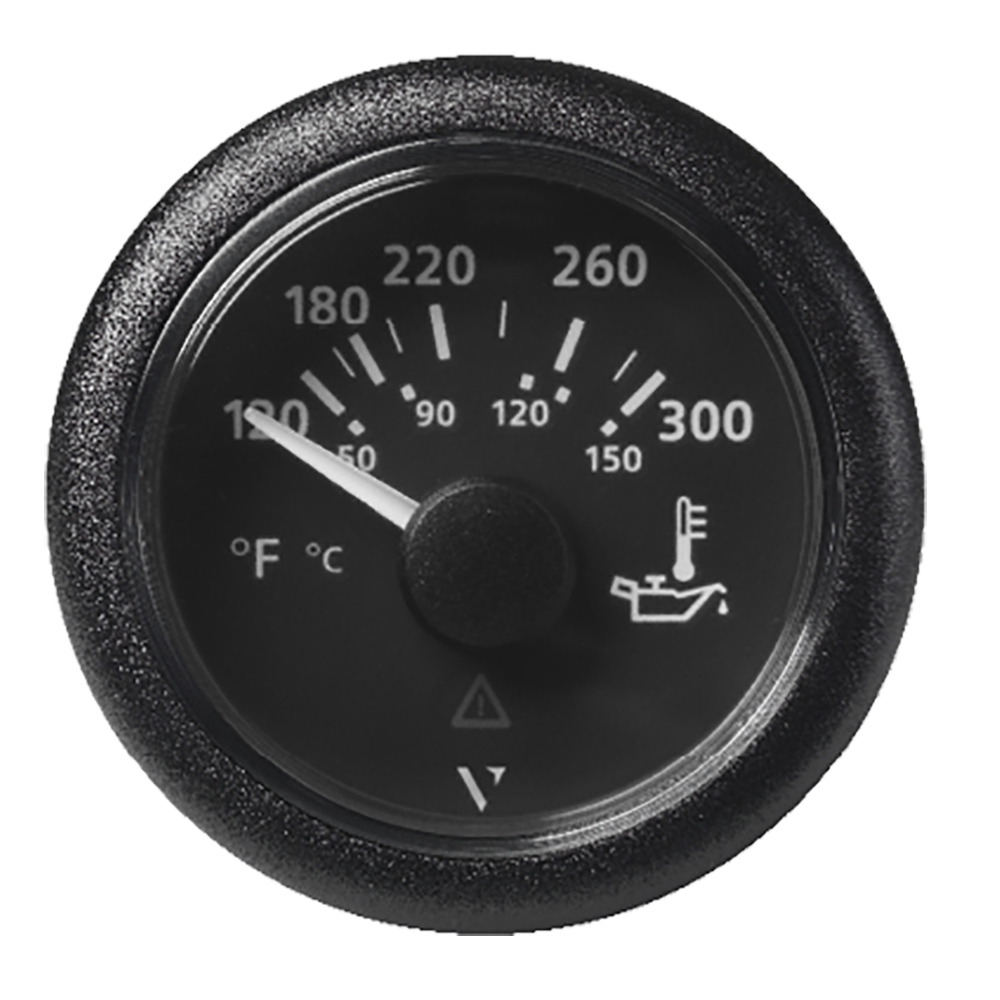

The VDO ViewLine 52mm (2-1/16") Oil Temperature Gauge provides precise engine oil temperature monitoring for marine applications with a temperature range of 120-300°F. This gauge displays any sudden rise in oil temperature, helping to prevent serious damage to the engine. The black dial features white graphics with through-dial amber lighting and an illuminated red LED pointer for excellent nighttime visibility.

Key Features:

• 52mm (2-1/16") installation diameter with 50mm installation depth
• Temperature range: 120-300°F (50-150°C)
• Operating voltage: 8-32V DC (compatible with 12V and 24V systems)
• Input resistance: 322.8-18.6 Ω
• 8-pole Tyco/Hirschmann MQS plug connector
• Red LED via plus and minimum warning light
• Anti-fog double lens design for maximum clarity
• Front side protection rating: IP67 (waterproof)
• Reverse polarity protection
• Optional make-point switch can be connected
• Interchangeable bezel system for custom styling

Included Components:

• Oil temperature gauge with black dial and black bezel
• Connection cable with MQS plug
• Rubber seal
• Spinlock mounting nut
• Installation instructions
• Safety instructions

VDO ViewLine provides maximum freedom to customize the cockpit and is the natural choice for an attractive price/performance ratio. This gauge is part of the comprehensive ViewLine modular instrumentation system, offering professional-grade engine monitoring for recreational and commercial marine vessels. Requires a compatible VDO oil temperature sender (not included) with matching ohm resistance.

Note: VDO temperature senders are designed to work with VDO gauges only. Sold as an individual gauge. This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.
