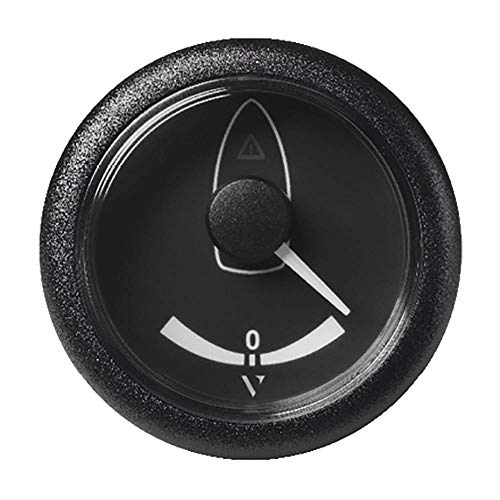

VDO Gauges A2C59514154 Veratron 52mm ViewLine Rudder Angle Gauge 40° Black

The VDO Veratron ViewLine 52mm (2-1/16") Rudder Angle Gauge delivers precise rudder position monitoring with a measurement range of 40° starboard to 40° port. Featuring a black dial with matching bezel, this marine-grade instrument combines modern design with exceptional reliability for sailboat and powerboat applications.

Key Features:

• 52mm (2-1/16") diameter gauge with black dial and bezel
• 40° starboard/port rudder angle display range
• Anti-fog double lens for superior visibility in marine conditions
• IP67 front-side protection rating for water and dust resistance
• Wide operating voltage range: 8-32V DC with reverse polarity protection
• Red LED VIA Plus and Min warning lights for status indication
• 8-pole Tyco/Hirschmann MQS connector for reliable connections
• Interchangeable bezel system for customization options
• Compact 50mm installation depth fits tight spaces
• Optional make-point switch compatibility

Part of the comprehensive Veratron ViewLine series, this gauge offers modular flexibility and can be mixed with other 52mm ViewLine instruments for a cohesive cockpit appearance. The instrument accepts standard ohm value input signals and provides maximum freedom for custom installations.

Complete Package Includes:

• Rudder angle gauge
• Connection cable with MQS connector
• Black bezel
• Rubber mounting seal
• Spinlock mounting hardware
• Installation and safety instructions

Ideal for sailboats requiring accurate rudder position feedback, this gauge provides professional-grade monitoring with the quality and durability VDO Veratron is known for in marine instrumentation.
