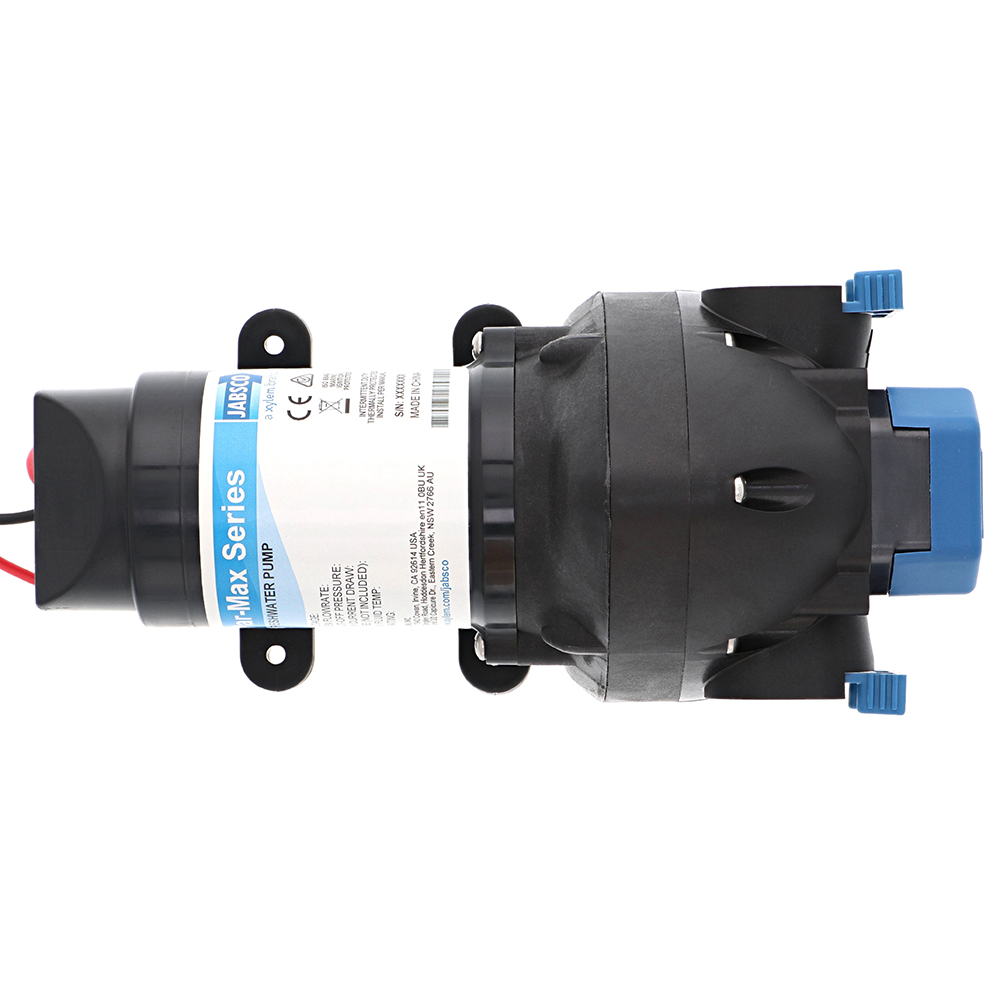

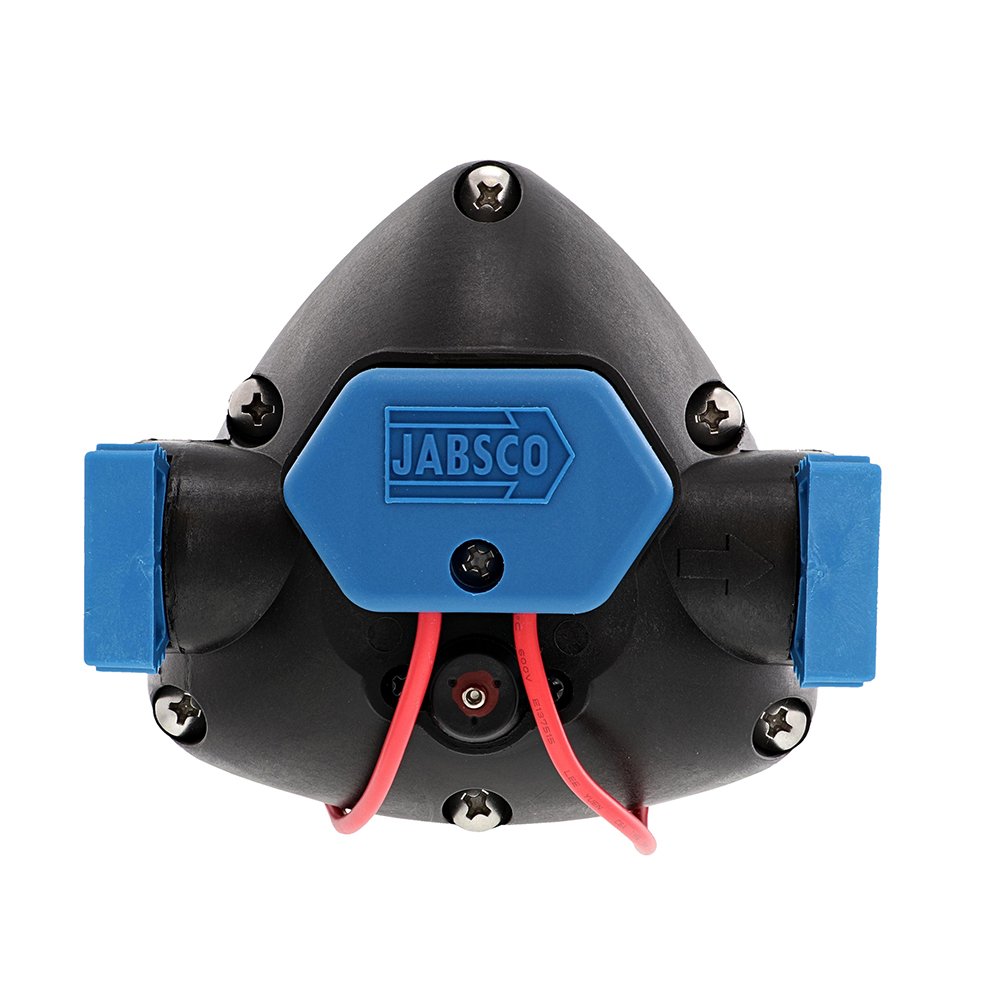

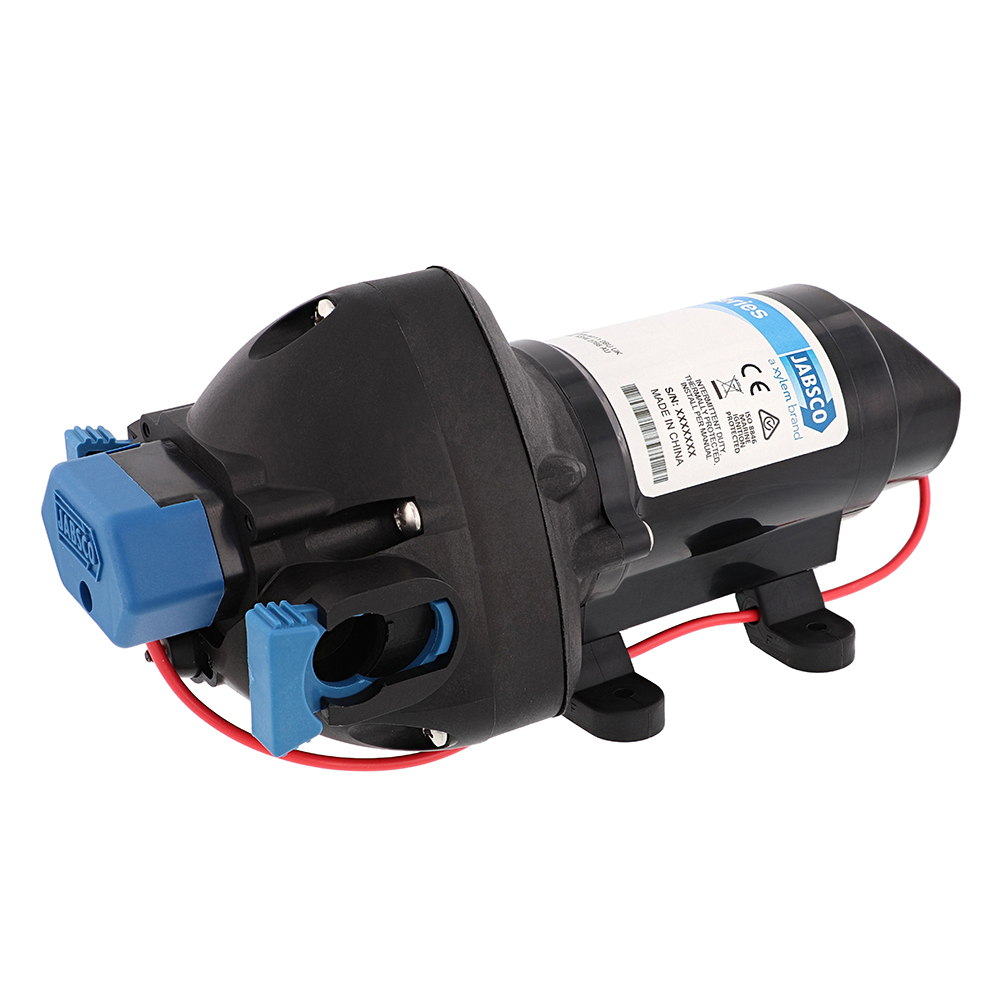

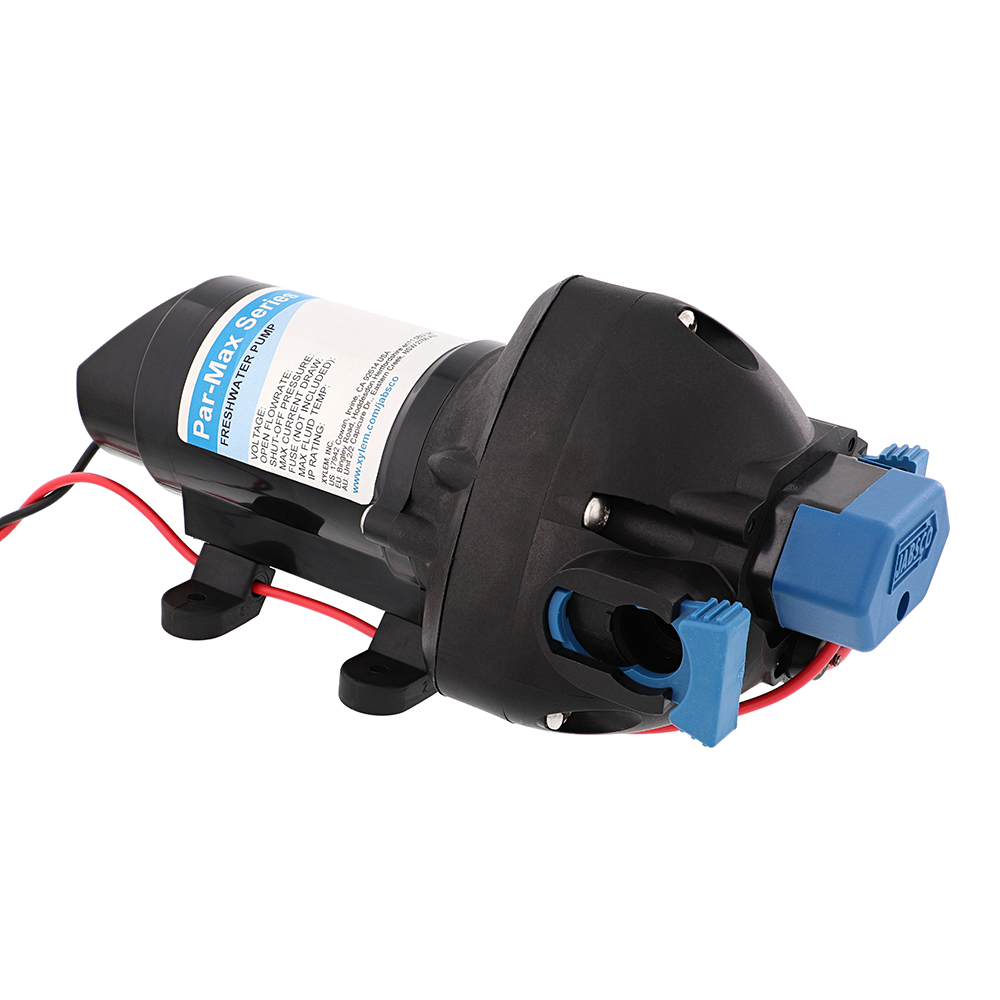

Jabsco 31395-4024-3A Par-Max 3 Water Pressure Pump 24V 3GPM 40PSI

The Jabsco Par-Max 3 Water Pressure Pump delivers reliable on-demand fresh water pressure for marine, RV, and mobile applications. This 24-volt pump provides 3 gallons per minute at 40 PSI, making it ideal for vessels or vehicles with 1-3 water outlets. The standard configuration features an economical design with a corrosion-resistant plastic housing that protects the motor while maintaining excellent performance.

Key Features:

• Co-molded diaphragm technology ensures long service life and durability
• Integrated sealed pressure switch provides automatic on-demand operation
• Self-priming design allows flexible installation up to 7 feet above water source
• Can run dry without damage to the pump
• Quick-connect ports simplify installation, servicing, and maintenance
• Vibration-dampening mounting feet reduce noise and improve stability
• Integrated bypass module minimizes cycling and delivers smoother water flow
• Efficient brushed permanent magnet motor operates quietly

Technical Specifications:

• Voltage: 24V DC
• Flow Rate: 3 GPM (11.4 LPM)
• Pressure: 40 PSI (2.8 Bar)
• Motor: Brushed permanent magnet, TENV design
• Pumphead Housing: Glass fiber reinforced polypropylene
• Diaphragm: Co-molded TPV
• Check Valves: EPDM rubber
• Maximum Inlet Pressure: 30 PSI (2.1 Bar)
• Fluid Temperature Range: 32°F to 140°F (0°C to 60°C)
• Self-Priming Capability: 7 feet minimum (2.13 meters)
• Ingress Protection: IPX6 rated
• Certifications: CE, ISO 8846, RCM compliant

Perfect for pressurizing fresh water systems in boats, RVs, campers, and other mobile applications where reliable automatic water delivery is essential. The Par-Max 3 combines proven Jabsco engineering with user-friendly features for dependable performance.
