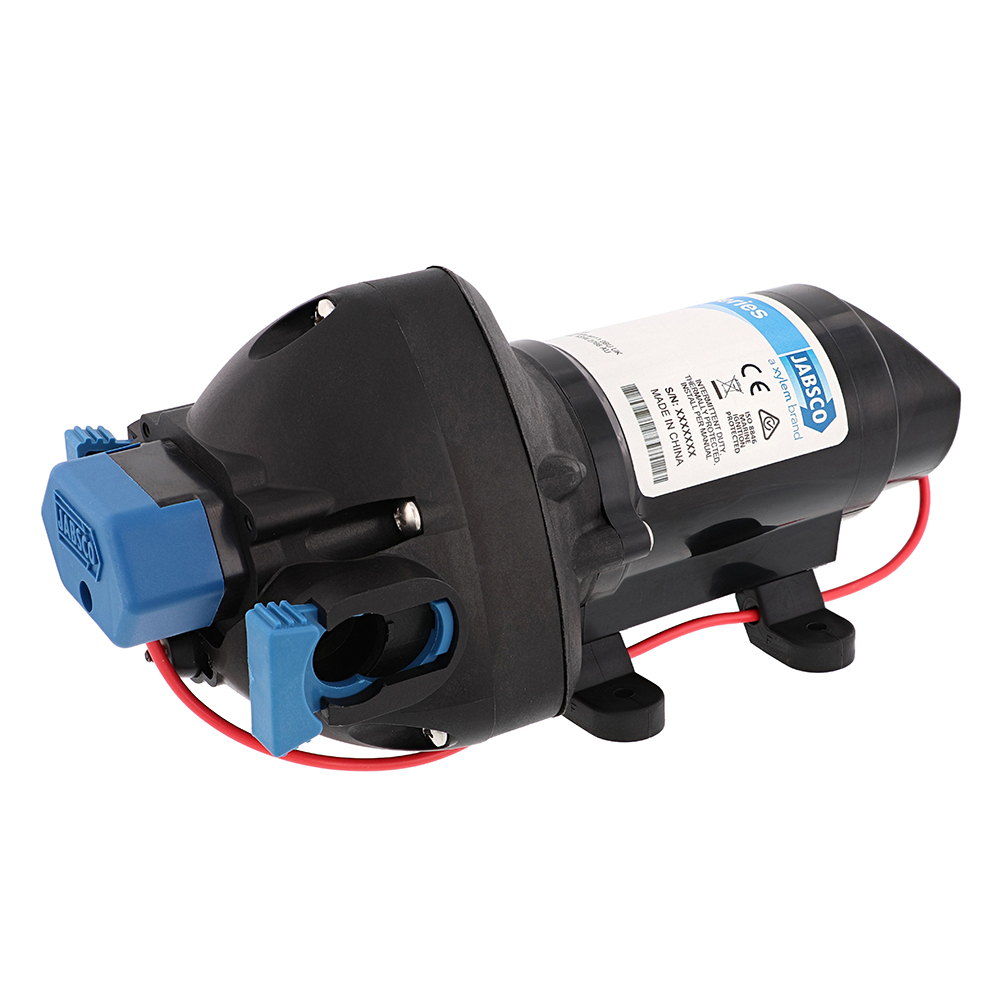

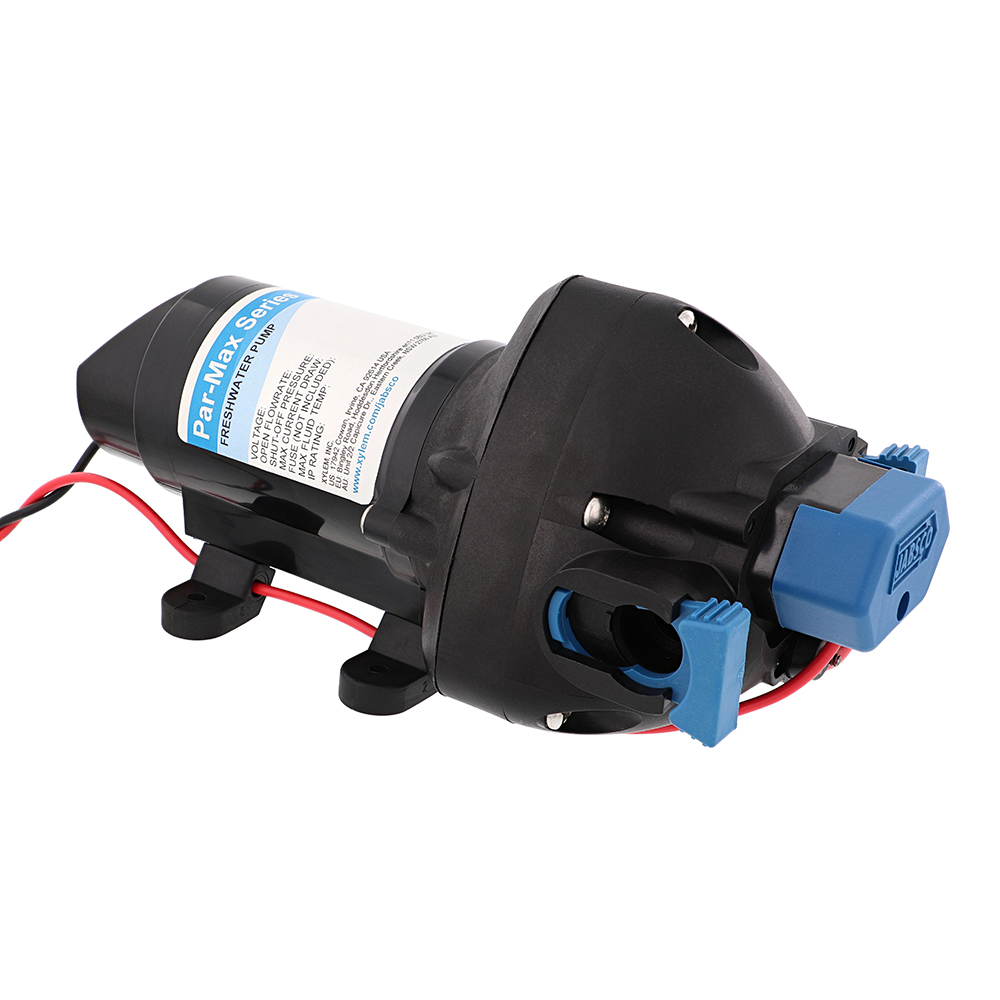

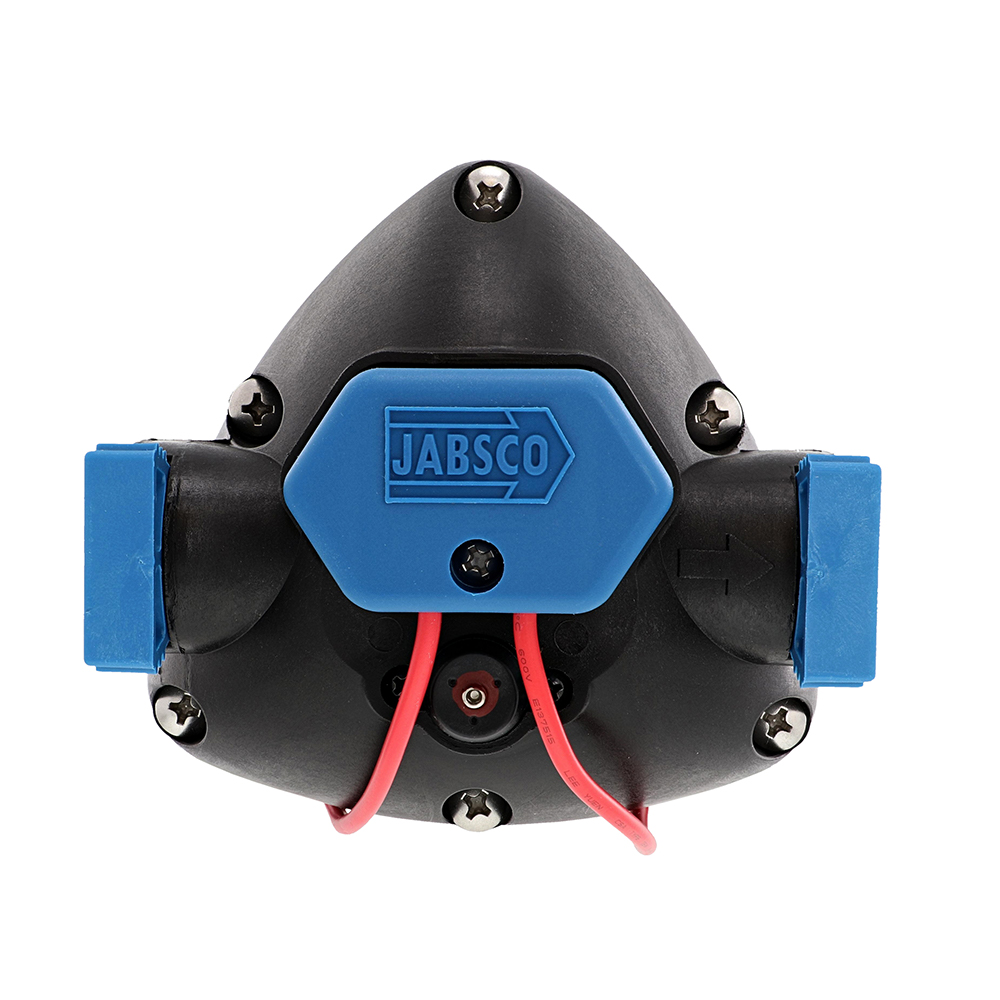

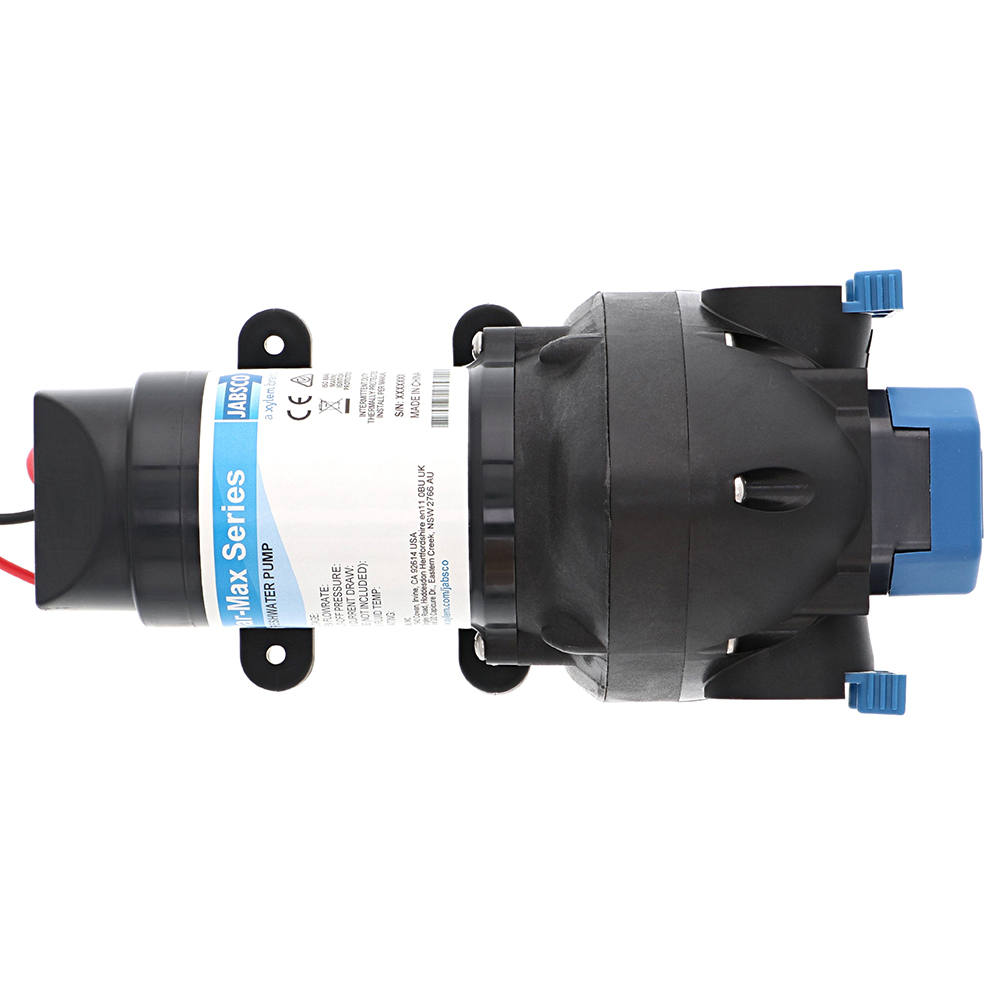

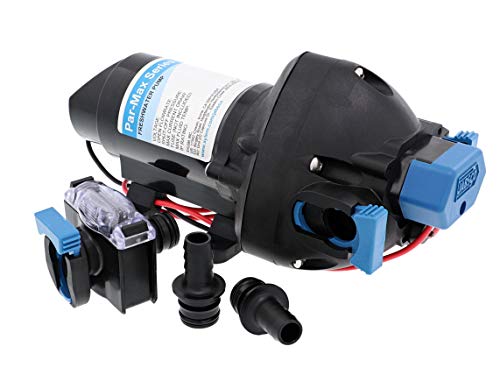

Jabsco 31395-2512-3A Par-Max 3 Water Pressure Pump 12V 3 GPM 25 PSI

The Jabsco Par-Max 3 Water Pressure Pump delivers reliable on-demand water pressure for marine vessels, RVs, and other mobile applications. This 12-volt pump provides 3 gallons per minute flow rate at 25 PSI, making it ideal for systems with 1-3 water outlets. The standard configuration features an economical design with a corrosion-resistant plastic housing that protects the motor while maintaining excellent performance.

Key Features:

• Co-molded TPV diaphragm technology provides exceptional durability and long service life
• Integrated sealed pressure switch enables automatic on-demand operation
• Self-priming design allows flexible installation positioning with 7-foot minimum dry priming capability
• Can run dry without damage to pump components
• Quick-connect ports simplify installation, servicing, and maintenance
• Vibration-dampening mounting feet reduce noise and system vibration
• Built-in bypass module minimizes pump cycling and ensures smoother, more consistent flow
• Quiet and efficient brushed permanent magnet TENV motor

Technical Specifications:

• Voltage: 12V DC
• Flow Rate: 3 GPM (11.4 LPM)
• Pressure: 25 PSI (1.7 Bar)
• Maximum Inlet Pressure: 30 PSI (2.1 Bar)
• Pumphead Upper Housing: Glass fiber reinforced polypropylene
• Check Valves: EPDM rubber
• Fluid Temperature Range: 32°F to 140°F (0°C to 60°C)
• Ingress Protection: IPX6 (water-resistant)
• Certifications: CE, ISO 8846, RCM compliant

This pump is designed for fresh water pressure systems in galleys, heads, washdown stations, and general water distribution applications. The combination of reliable performance, easy installation, and low maintenance requirements makes the Par-Max 3 an excellent choice for marine and RV water systems.
