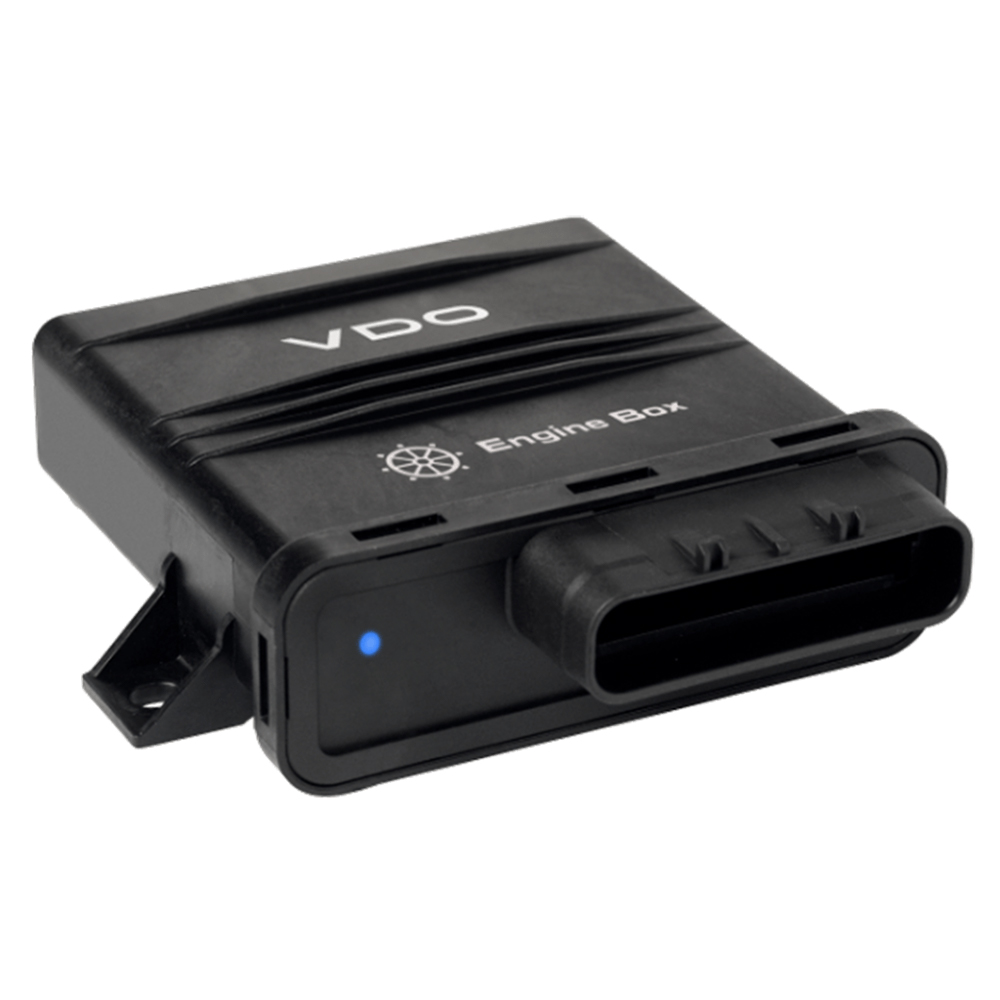

VDO Gauges A2C1767000001 Veratron EngineBox Dual Engine NMEA 2000 Gateway

The VDO Veratron EngineBox Dual Engine is a versatile marine data gateway that expands monitoring capabilities for twin-engine vessels. This compact module converts analog engine sensors and J1939 CAN data to NMEA 2000® format, enabling comprehensive engine monitoring on modern marine displays and multifunction systems.

Key Features:

• Dual engine configuration with 2x J1939 CAN ports for modern diesel engines
• Analog-to-NMEA 2000® gateway supports legacy engines without digital outputs
• 2x RPM inputs (0-4 kHz) for tachometer signals from each engine
• 8x resistive sensor inputs (0-400 Ohm) for temperature and pressure sensors
• 2x current loop inputs (4-20 mA) for industrial sensors
• 2x voltage inputs (0-5V) for additional analog sensors
• M12 5-pin NMEA 2000® connector for network integration
• ISO 8846:1990 certified for installation in engine compartments
• Wide operating temperature range: -40°C to +85°C (-40°F to +185°F)
• Status LED for troubleshooting and operation verification

Configuration is performed using the free Veratron Configuration Software via PC. The Veratron Diagnostic Tool USB to NMEA 2000 adapter (A2C3931270001, sold separately) is required for initial setup and programming. The intuitive software allows custom mapping of analog inputs to specific engine parameters.

Package Includes:

• EngineBox Dual Engine module
• Engine cable
• Cable harness
• Safety instructions

Ideal for repowering projects, engine monitoring upgrades, or integrating older analog engines into modern NMEA 2000® networks. Compatible with VDO ViewLine and AcquaLink displays, as well as third-party NMEA 2000® compatible chartplotters and MFDs.
