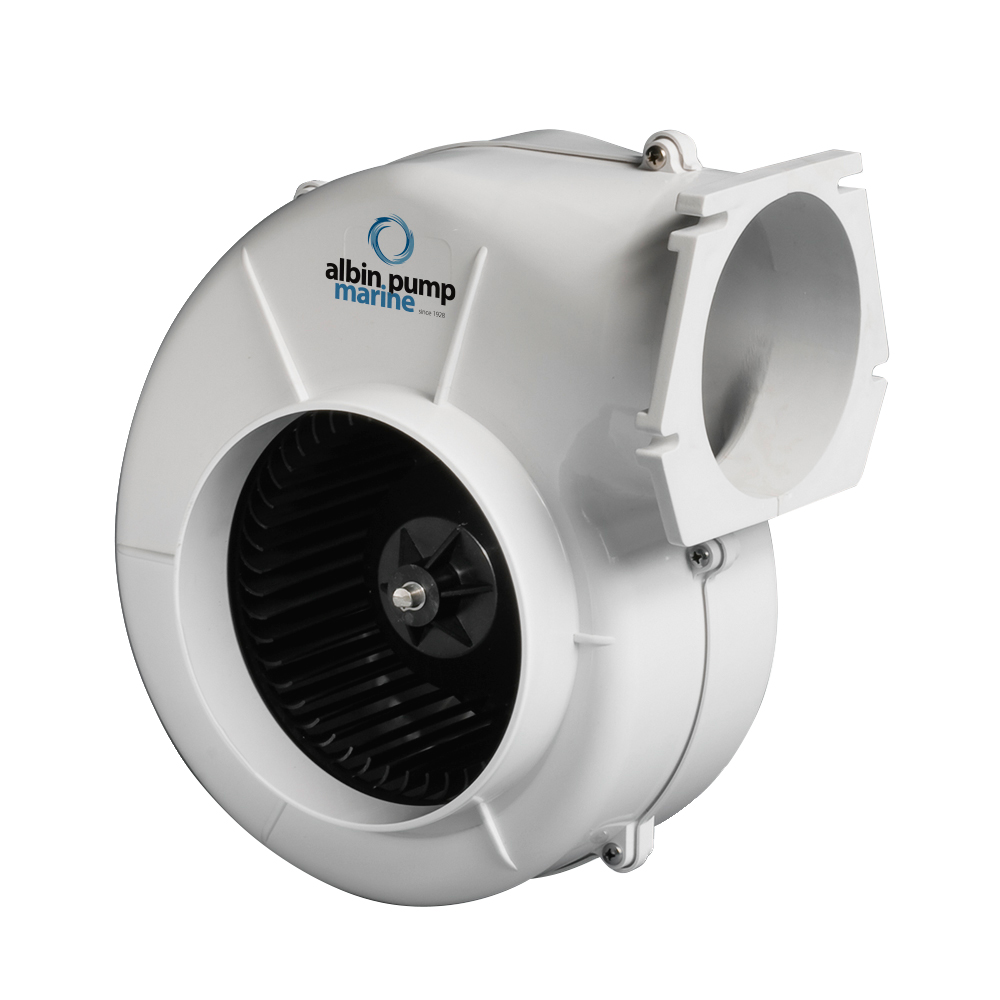

Albin 10-02-004 Marine Air Blower 500 CFM 4-Inch Flange Mount 24V

The Albin Pump 10-02-004 is a 4-inch flange-mounted marine radial air blower designed for reliable bilge and cabin ventilation aboard small craft. Rated at 500 m³/h (324 CFM) and operating on a 24V DC electrical system, this blower delivers powerful airflow in a compact, durable package. It is a direct interchangeable replacement for Johnson Pump 80-47417-02.

The housing is constructed from high-impact thermoplastic PA6 Nylon in white, providing excellent resistance to the harsh marine environment. The motor is fully integrated into the blower body for a clean, space-saving installation. A 100mm inlet and 103mm outlet allow straightforward ducting connections, and the 4-inch flange mount simplifies installation on bulkheads and deck panels.

Key Features:

• Airflow capacity: 500 m³/h / 324 CFM
• Operating voltage: 24V DC
• Mounting type: 4-inch flange
• Inlet diameter: 100mm | Outlet diameter: 103mm
• Housing material: Thermoplastic PA6 high-durability white Nylon
• Integrated blower motor design
• Recommended fuse: 6A
• Direct replacement for Johnson Pump 80-47417-02
• Weight: 2.4 kg / 5 lbs
• Dimensions: 290mm L x 257mm H x 150mm W (11.4" x 10.1" x 5.9")

Certifications:

• CE Marked
• ISO 9097:1991 – Marine small craft electrical fans
• ISO 8846:1990 – Ignition protection
• ISO 10133:2000 – Electrical systems on small craft
• EN 55014-1:2006 (2004/108/EC) – Electromagnetic compatibility

Built to meet the rigorous safety and performance standards required for marine applications, the Albin 10-02-004 is an ideal choice for engine room ventilation, bilge blowers, and cabin air circulation on powerboats and sailboats.
