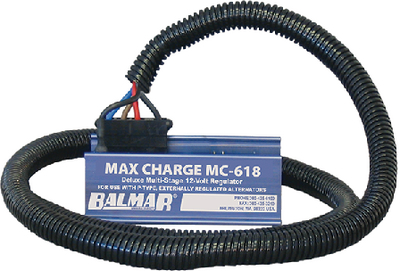

Balmar MC618HC Max Charge Multi-Stage Voltage Regulator with Harness 12V

The Balmar MC-618HC Max Charge Multi-Stage Voltage Regulator is an advanced 12-volt charging system controller designed for marine applications with P-type externally regulated alternators. This upgraded successor to the MC-614 features Bluetooth connectivity and integrates seamlessly with the SG200 Battery Monitor for remote monitoring and control.

Key Features:

• Intelligent multi-stage charging regulation with 9 selectable battery chemistry-specific programs including deep cycle flooded, gel, AGM, spiral wound AGM, carbon foam, and LiFePO4 batteries
• Communicates with SG200 Battery Monitor for real-time monitoring via 2-inch color display or Bluetooth smartphone app
• 15 amp maximum field current capacity for high-output alternator applications
• Advanced temperature sensing and compensation for both alternator and battery when equipped with optional sensors
• Unique lithium-ion battery protection prevents charging in below-freezing conditions when battery temperature sensor is installed
• Adjustable belt load manager and start delay features protect engine and drive components during startup
• 3-digit LED alphanumeric display for on-regulator programming and diagnostics
• Capable of controlling dual alternators in twin-engine installations when used with Balmar's Centerfielder II
• Includes complete wiring harness with power, field, ignition, stator, ground wires, and fused sensor wire pigtail

Multi-Stage Charging Process: The MC-618 automatically progresses through seven intelligent charging stages including start delay, soft ramp, bulk charging, calculated bulk, absorption, calculated absorption, and float. This sophisticated charging algorithm ensures faster, more complete charging while preventing overcharging and extending battery life.

The MC-618HC connects to the SmartLink network using an optional SG2-0404 SmartLink Adapter cable (sold separately), enabling integration with SmartShunts for comprehensive battery bank monitoring. Advanced programming functions are accessible through the Bluetooth smartphone app, while basic setup can be completed using the on-regulator controls or SG200 display.
