VDO A2C59514117 Veratron ViewLine 52mm Engine Oil Pressure Gauge 0-150 PSI Black

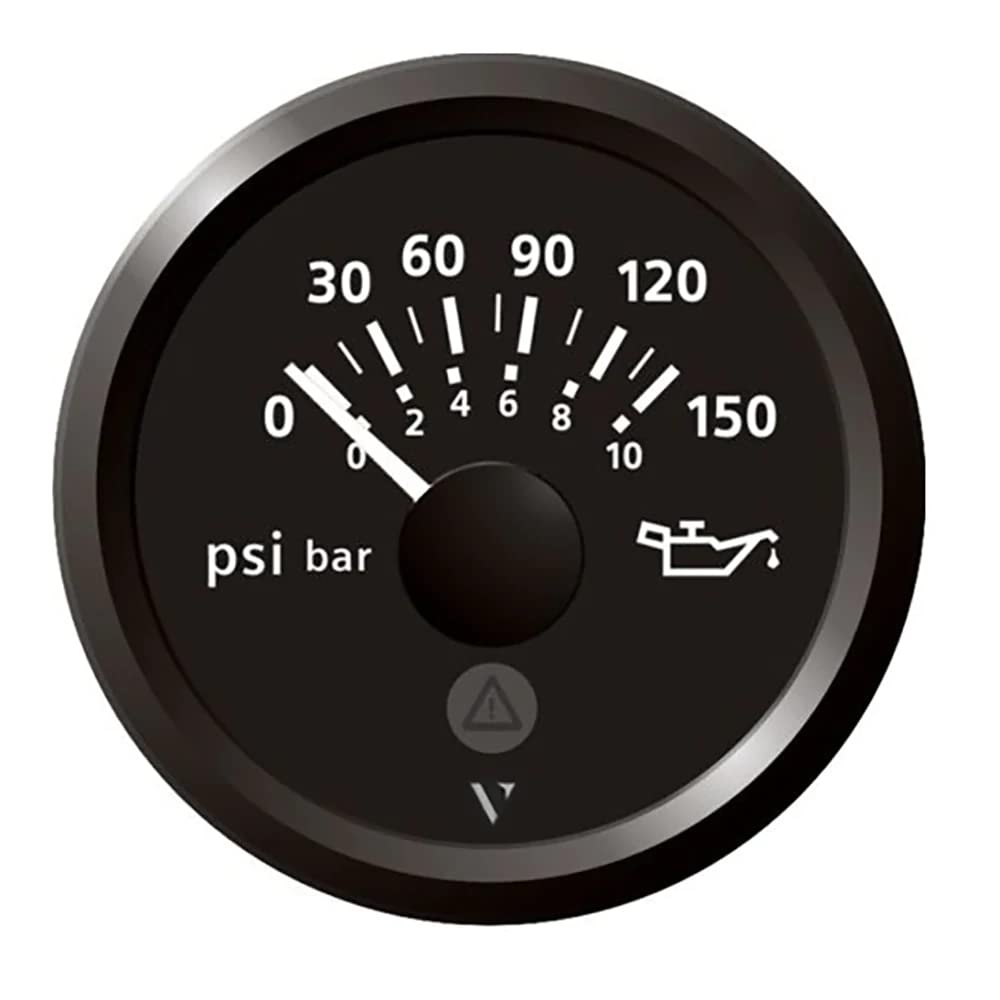

The Veratron ViewLine A2C59514117 is a 52mm (2-1/16") analog engine oil pressure gauge designed for demanding marine and powersports applications. Measuring from 0 to 150 PSI with a dual-scale dial that also displays 0–10 Bar, it delivers at-a-glance readings across the full pressure range common to both gasoline and diesel engines. The gauge features a sleek black dial and interchangeable black triangular clip-on bezel for a clean, integrated look on any helm or instrument panel.

Key Features:

• Installation Dimension: 52mm (2-1/16") panel cutout; 59mm (2-1/3") outside diameter
• Installation Depth: 50mm; locking height 0.5–20mm with included Spinlock nut
• Measurement Range: 0–150 PSI / 0–10 Bar (dual scale)
• Lens: Dual anti-glare, anti-fog plastic lens
• Dial Illumination: Amber LED backlight (605nm) with white LED-lit pointer
• Warning Light: Red LED (632nm) via plus and minus terminals
• Signal Input: Analog, 10–184 Ohm (compatible with Veratron/VDO pressure senders)
• Connector: Hirschmann 8-pin MQS connector
• Operating Voltage: 8–32V DC (12V/24V compatible)
• Current Consumption: Less than 140 mA including warning LED
• Accuracy: Less than 3.6° angular degrees across full display range
• IP Protection: IP67 front face (IEC 60529) — dust-tight and submersion-resistant
• Reverse Polarity Protection: Yes (5 minutes); Short Circuit Protection: Yes (1 minute)
• Bezel: Black triangular style; interchangeable clip-on design
• Deflection Angle: 90°
• Programming: Compatible with Veratron USB software kit

Part of the Veratron ViewLine Marine instrument series, this gauge integrates seamlessly with other 52mm ViewLine instruments for a unified panel appearance. The modular, interchangeable bezel system allows panel aesthetics to be updated without replacing the gauge unit. An optional flush-mount kit (A2C59510864) is available separately.
