Sierra FS84130 Marine Battery Fuse Holder 60A with Gold Plated Terminals

The Sierra FS84130 is a marine-rated battery fuse holder designed to provide reliable circuit protection directly at the battery source. This robust fuse holder fits onto the positive battery stud and is engineered specifically for the demanding conditions of marine electrical systems.

Key Features:

• Ignition protected when used with Sierra MRBF fuses for enhanced safety
• Bolt-down design withstands high-vibration marine environments
• Standard isolated M8 stud design allows stacking of multiple terminals
• Protective insulating cap prevents accidental short circuits
• Compact footprint ideal for tight engine compartments and battery boxes
• Clear fuse window provides easy visual fault indication
• 300A maximum amperage capacity with high-interrupt rating
• Gold-plated terminals resist corrosion in marine environments

Applications:

Perfect for DC main circuit protection, bow thrusters, inverters, and windlass systems. Meets ABYC requirements for DC main circuit protection on large battery banks, making it ideal for both recreational and commercial marine vessels.

Specifications:

• Rated Current: 60 Amperes
• Maximum Amperage: 300A
• Stud Size: M8 (isolated design)

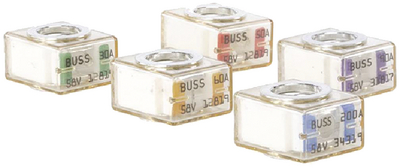

• Fuse Type: MRBF (Marine Rated Blade Fuse)
• Terminal Finish: Gold plated for corrosion resistance
