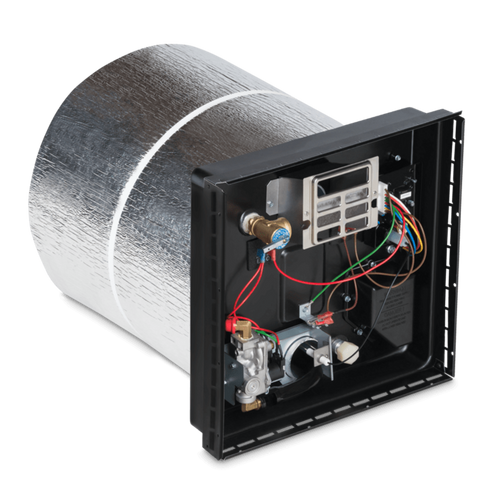

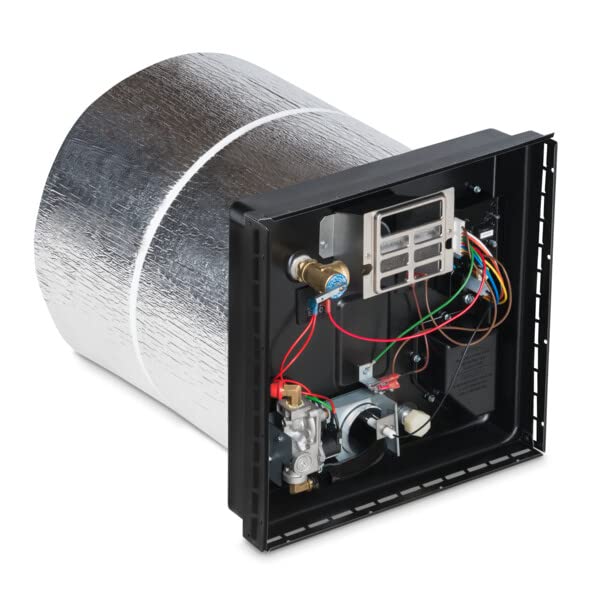

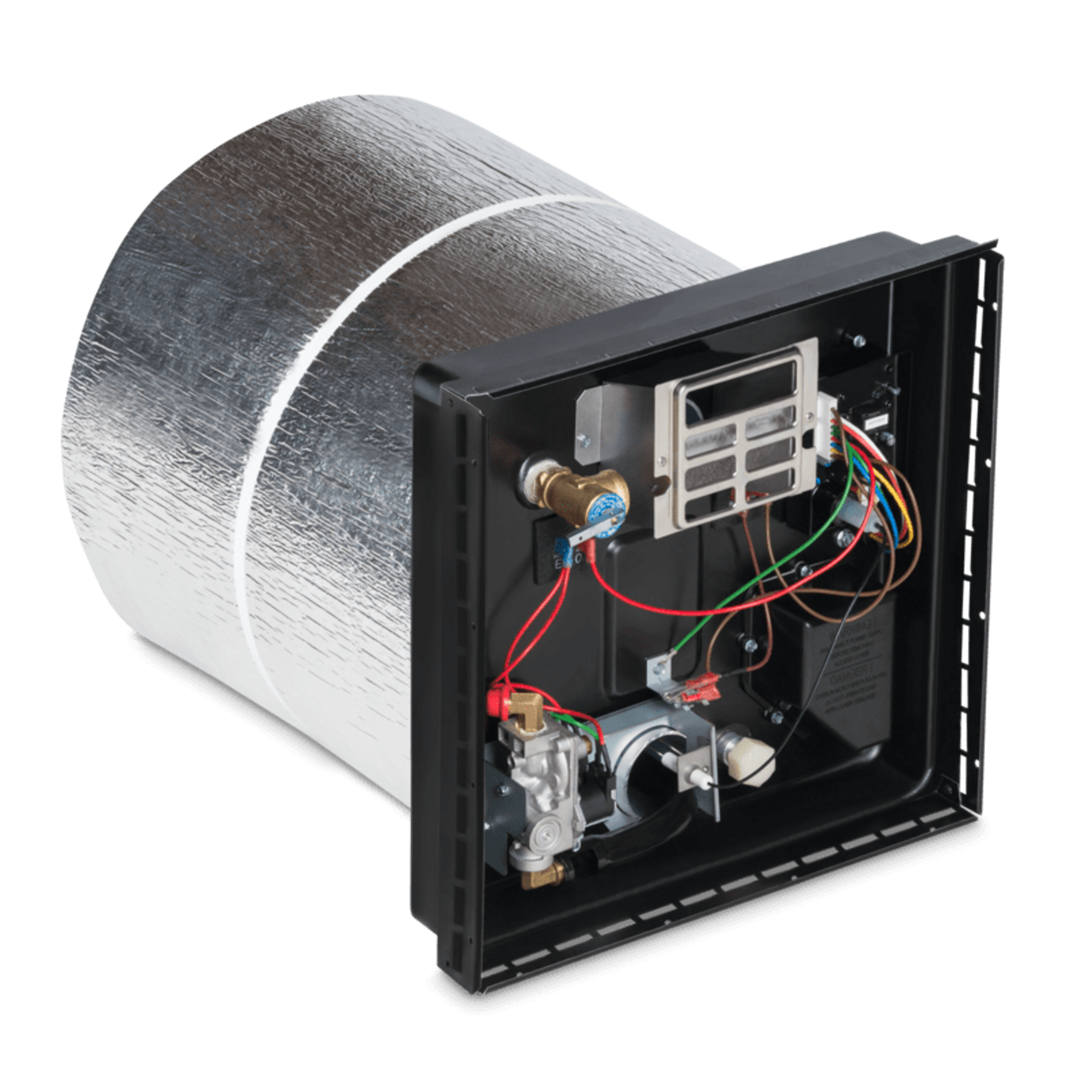

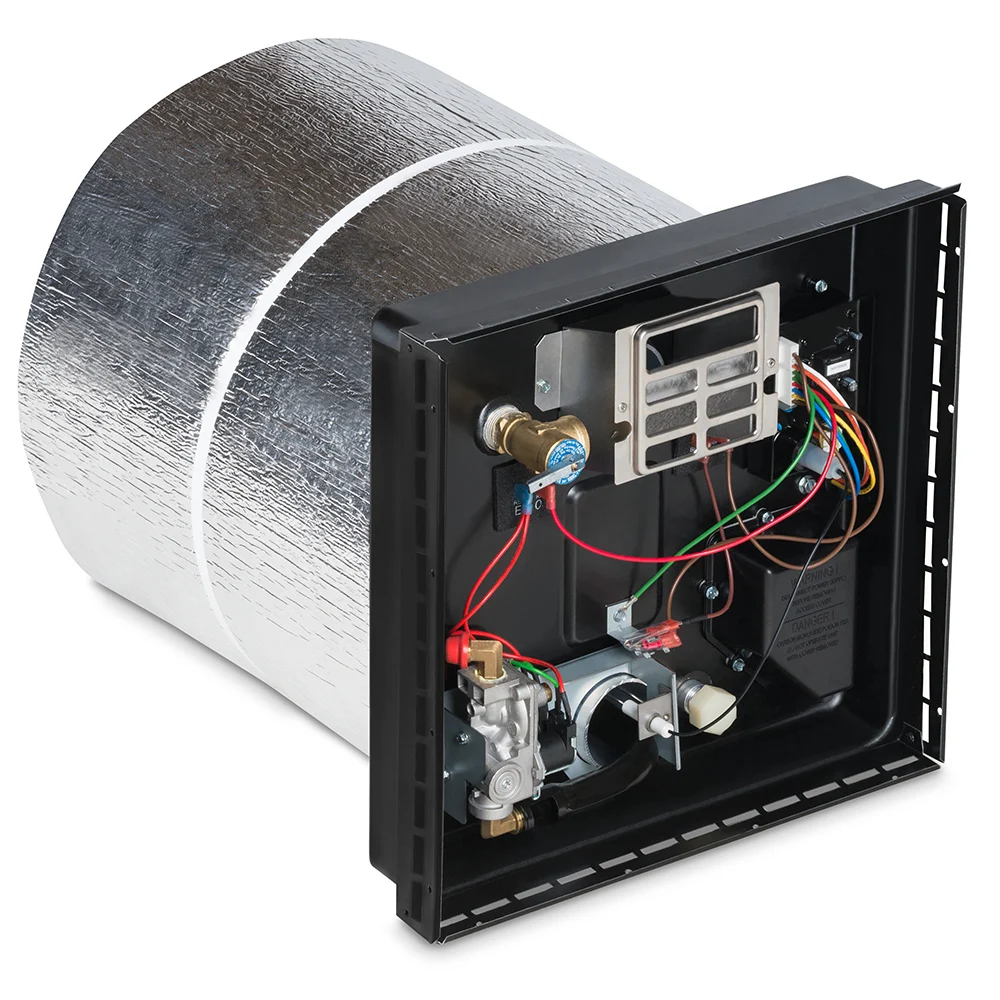

Dometic 95002SP WH-16GEA XT 10 Gallon LP Gas/Electric RV Water Heater

The Dometic WH-16GEA XT is a high-performance 10-gallon LP gas and electric water heater designed for RVs and mobile applications, featuring an innovative XT Mixing Valve that delivers the equivalent of 16 gallons of hot water from its compact 10-gallon tank. This market-leading water heater features a powerful 10,000 BTU electronic ignition burner that provides exceptional heat to keep water hot and deliver essential home comfort while on the road.

Key Features:

• XT Mixing Valve technology delivers up to 50% more hot water without increasing size or adding weight
• Dual power source capabilities - operates on propane, electric (120V AC), or both simultaneously for improved recovery rate
• Direct spark ignition (DSI) system with 12V electric ignition for easy and reliable startup
• Lightweight aluminum tank maximizes capacity while requiring no anode rod, extending product lifespan and minimizing maintenance
• Male thread water inlet and outlet eliminate the need for adapters
• Improved environmentally friendly insulation and heavy gauge stainless steel door hinge design
• Pre-installed winterization bypass kit included

Specifications:

• Tank Capacity: 10 gallons (delivers equivalent of 16 gallons)
• BTU Rating: 10,000 BTU electronic ignition burner
• Power: LP Gas and 120V AC Electric
• Cut-Out Dimensions: 15-3/4"H x 16-1/4"W x 25-1/4"D
• Unit Dimensions: 15-3/4"H x 15-3/4"W x 25"D
• Weight: 25 lbs
• Tank Material: Lightweight aluminum
• Connection: 3-prong plug electrical connection

The aluminum tank is 50% lighter than traditional steel tanks and requires no anode rod, making it both efficient and durable for long-term RV use. Please note: Access door is not included and must be purchased separately.
