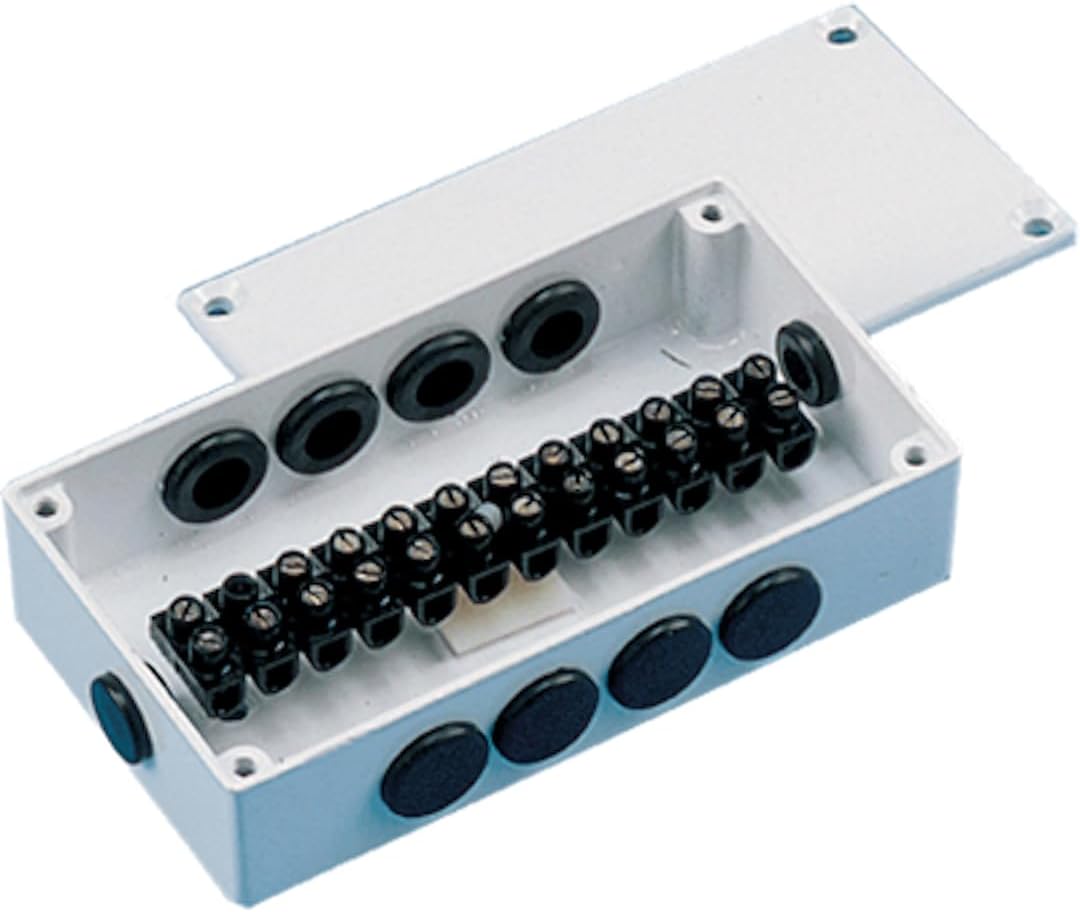

NewMar BX2 Splashproof Junction Box IP54 Marine Grade

The NewMar BX2 Thru-Dex junction box provides secure, protected wiring connections for marine applications in wheelhouses, below decks, and engine rooms. This splashproof electrical enclosure features an IP54 rating for reliable protection against water intrusion in harsh marine environments.

Key Features:

• IP54 rated splashproof protection for marine environments
• Rugged cast aluminum construction with white enamel finish
• Metal housing reduces electrical interference and EMI
• Multiple grommeted cable entries for easy wiring access
• Includes high-quality connector strips with compression fittings—no terminals required
• 8 cable entry points accommodate 0.37-inch diameter cables

Technical Specifications:

• Connector Strips: 1 strip with 12 positions
• Maximum Wire Gauge: 16 AWG
• Maximum Amperage: 6 amps per position
• Box Dimensions: 4.4" L x 2.4" W x 1.2" H
• Cable Entry Diameter: 0.37 inches

The BX2 junction box provides a professional solution for organizing and protecting electrical connections in marine applications where moisture and splash exposure are concerns. The compression-style connectors eliminate the need for crimp terminals, simplifying installation and maintenance.
