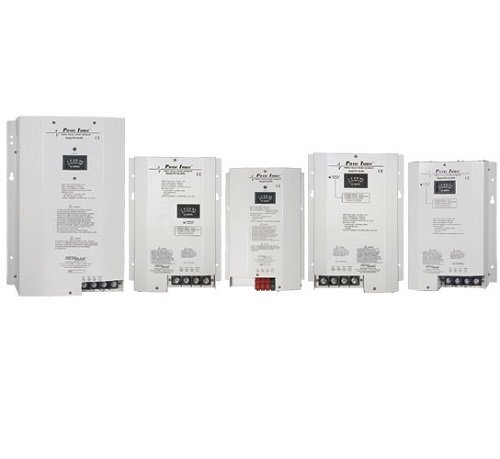

NewMar PT2420U 24V 20A Marine Battery Charger 115/230V Input

The NewMar PT2420U is a professional-grade "smart" marine battery charger designed for 24-volt systems aboard workboats, military vessels, commercial vessels, and recreational craft. This intelligent charger delivers optimum three-stage charging (bulk, absorption, float) for fast battery recovery and conditioning, maximizing performance and extending battery life.

A selector switch adjusts output voltage to adapt to gel-cell, flooded lead-acid, or AGM battery types, ensuring proper charging for your specific battery configuration. The unit features three isolated output banks with a total maximum output of 20 amps, and an ammeter displays total output current. An optional temperature compensation sensor (TCS-12/24) adjusts output voltage based on battery ambient temperature for ideal charging conditions.

Key Features:

• Three-stage smart charging technology (bulk, absorption, float)
• Adjustable battery type selector for gel-cell, flooded lead-acid, or AGM batteries

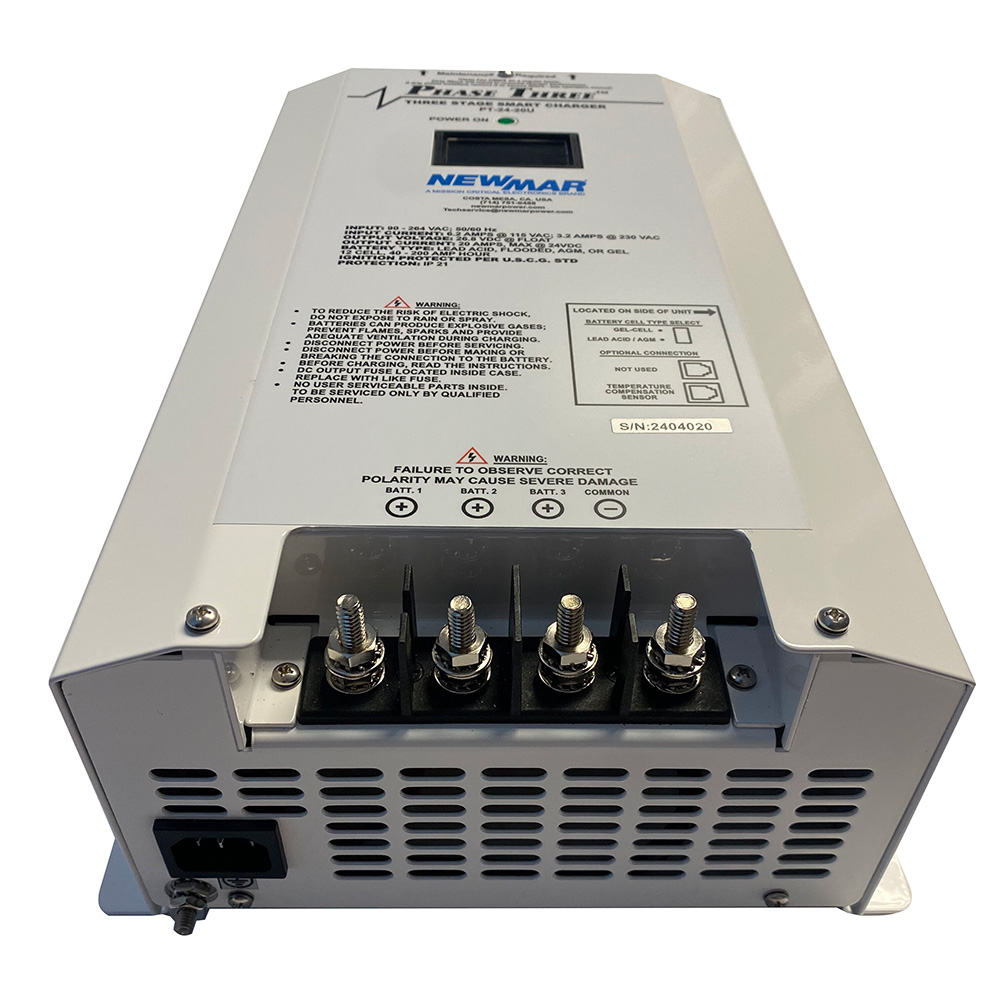

• Three isolated output banks with 20-amp maximum total output
• Dual input voltage capability: 115/230 VAC, 50-60 Hz
• Can function as a power supply without battery in line
• Current limiting protection prevents overload damage
• Rugged stainless steel case with durable white powder coat finish
• Polyurethane-coated internal circuitry for maximum corrosion resistance
• Optional drip shield available for harsh environments
• ABS type-approved for battery charging and power supply applications
• Compatible with PT-MCU for additional control and monitoring

Technical Specifications:

• Input Voltage: 85-135 VAC or 170-270 VAC (50-60 Hz)
• Input Current: 6.8A @ 115 VAC, 4.3A @ 230 VAC at full load
• Maximum Output: 20 amps DC
• Output Banks: 3 isolated
• Recommended Battery Capacity: 40-200 amp-hours
• Gel-Cell Output: 28.0 VDC charge, 27.2 VDC float
• Flooded/AGM Output: 28.4 VDC charge, 26.8 VDC float
• Operating Temperature: -20°C to +60°C (derate linearly from 100% @ 50°C to 60% @ 60°C)
• Dimensions: 13.85" H x 9.5" W x 4.8" D (with drip shield add 0.75" H, 1.35" D)
• Weight: 12 lbs

Certifications:

• UL 1950 compliant
• USCG CFR 183.410 ignition protected
• EN 60335-1 compliant
• CE marked
• ABS type-approved meeting SVR 2009, Under 90 meters Rules 2006, and HSNC 2007 standards

Built for demanding marine environments, the PT2420U combines intelligent charging technology with rugged construction to deliver reliable performance and extended battery life. Ideal for professional marine applications requiring dependable 24-volt battery management.
