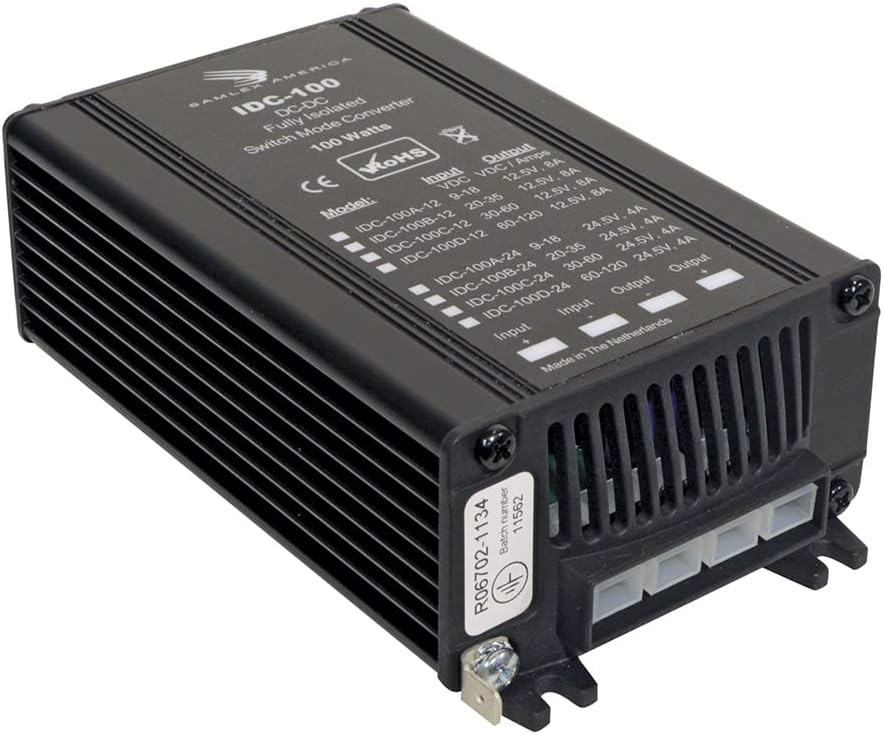

Samlex IDC-100C-12 DC-DC Step-Up Converter 30-60V to 12.5V 8A 100W Isolated

The Samlex IDC-100C-12 is a fully isolated DC-DC step-up converter that delivers 100 watts of power with exceptional regulation and efficiency. This converter steps up input voltages from 30-60 VDC to a stable 12.5 VDC output, making it ideal for powering 12-volt equipment from higher voltage systems commonly found in heavy trucks, buses, marine vessels, and industrial equipment.

Key Features:

• Fully galvanically isolated design separates input and output for enhanced safety and noise reduction
• High-efficiency switching design minimizes heat and power loss
• Rated output current of 8 amps at 60V input
• Compact housing measures just 6" × 3.5" × 1.9" for easy installation
• Fold-back current limiting prevents overload damage
• Comprehensive protection: short circuit, overheating, overvoltage, and reverse polarity
• 1/4" push-on quick disconnect terminals for fast, secure connections
• EMI/EMC compliant to European standards EN50081-1 and EN50082-1
• CE certified for safety and quality assurance

Technical Specifications:

• Input Voltage Range: 30-60 VDC
• Output Voltage: 12.5 VDC (regulated)
• Maximum Output Current: 8 Amps
• Power Rating: 100 Watts
• Dimensions: 6" L × 3.5" W × 1.9" H
• Weight: 1.2 lbs
• Connector Type: 1/4" quick disconnect flat blade terminals
• Warranty: 2 Year Limited

Common Applications:

• Heavy duty trucks and earth moving equipment with 24V, 36V, or 48V electrical systems
• Bus and coach auxiliary power systems
• Marine vessels requiring isolated power conversion
• CB radios and amateur radio equipment
• 12-volt LED lighting systems
• Audio and entertainment systems
• Industrial control and monitoring equipment

The IDC-100C-12 is part of Samlex's IDC-100 series of high-reliability isolated converters, engineered for demanding mobile and industrial environments where stable, noise-free power is critical.
