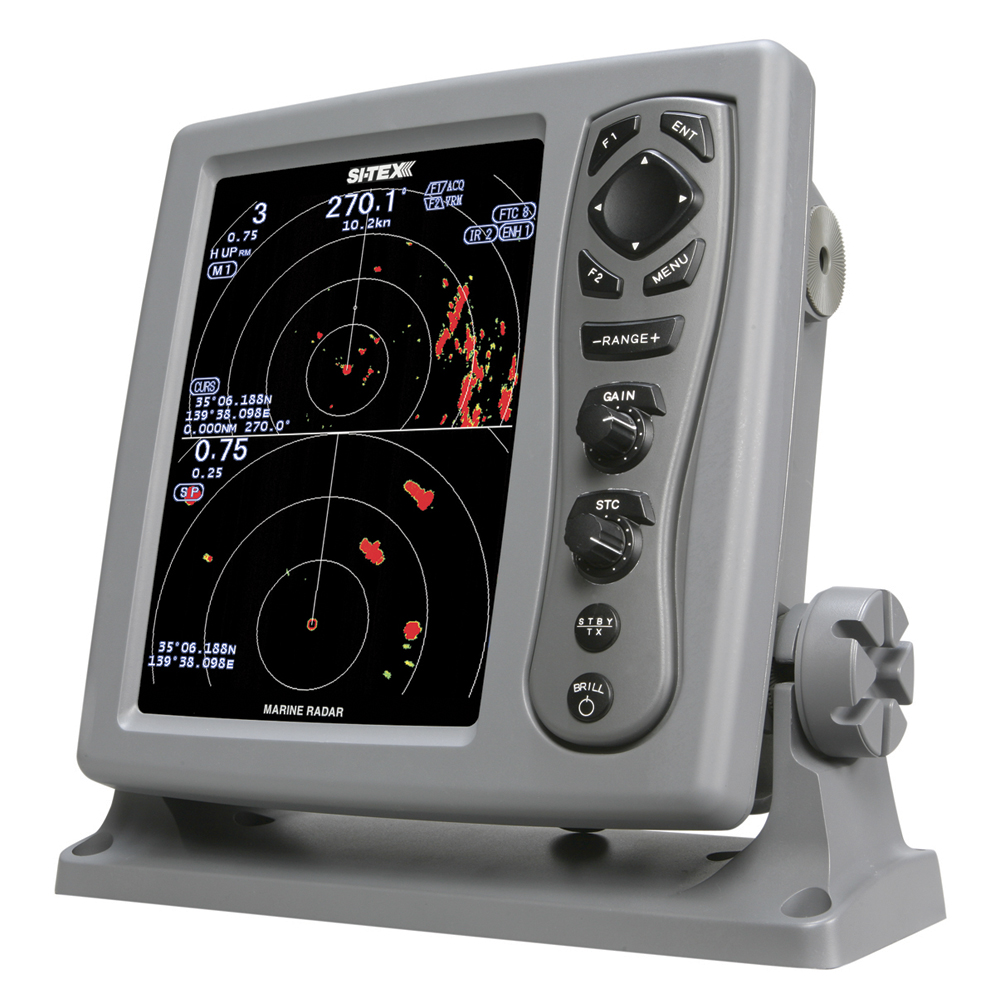

Si-Tex T-941A 8.5" Color LCD Radar 4kW 36nm Range with 25" Radome

The Si-Tex T-941A is a professional-grade marine radar system featuring an 8.5" color LCD display paired with a powerful 4kW output radome antenna. Utilizing advanced Hyper-Digital Processing (HDP) Technology, this radar delivers real-time target presentation with superior discrimination, virtually eliminating unwanted noise for clearer, more detailed imaging of both large and small targets at ranges from 1/16 to 36 nautical miles.

Key Features:

• Brilliant 8.4" TFT color LCD display with 480 x 640 pixel resolution and anti-reflective coating for excellent daylight visibility
• True-color radar display shows echoes in different colors based on signal strength for enhanced target identification
• Dual-speed antenna rotation: 48 RPM standard or 24 RPM for tracking fast-moving close-range targets (requires 24V DC)
• 25" radome scanner with 4kW peak power output and 9410 MHz operating frequency
• Dual Range function displays split-screen long and short-range targets simultaneously
• True Trail function differentiates moving targets from stationary objects, showing vessel movement as trailing paths
• Warning Zone alerts for targets entering or departing preset guard zones
• Automatic hands-off tuning with manual override option maintains optimal sensitivity
• RGB output supports connection of two optional external monitors
• CCD camera input for split-screen radar and camera display
• Optional ATA (Automatic Tracking Aid) tracks up to 50 designated targets with distance, speed, bearing, course, and CPA data
• Optional AIS interface displays information on up to 100 AIS-equipped vessels including MMSI, name, course, and speed
• Multiple display modes: Heads Up, North Up, Course Up, WPT Up, and True Motion
• Waterproof IPX5-rated display unit with flush-mount installation system
• Comprehensive NMEA data input compatibility for integration with existing marine electronics

Technical Specifications:

• Display: 8.4" TFT Color LCD, 480 x 640 pixels
• Range Scales: 1/16 to 36 NM in 17 selectable increments
• Antenna: 25" radome, 4kW peak output, 3.9° horizontal beam width
• Range Accuracy: Better than 8 meters
• Minimum Detection Distance: Within 25 meters
• Bearing Accuracy: Better than ±1°
• Power Requirements: 10.8-31.2V DC, 55W consumption
• Off-Centering: Maximum 66%

Package Includes:

• MRD-103 Display Unit with protective hard cover
• 10-meter connecting cable with connectors
• 2-meter DC power cable
• 0.3-meter CCD camera cable
• 8A fuse
• Operation manual and quick reference guide

This advanced radar system combines professional-grade performance with user-friendly operation, making it ideal for serious cruisers and commercial operators who demand reliable target detection and tracking in all conditions.
