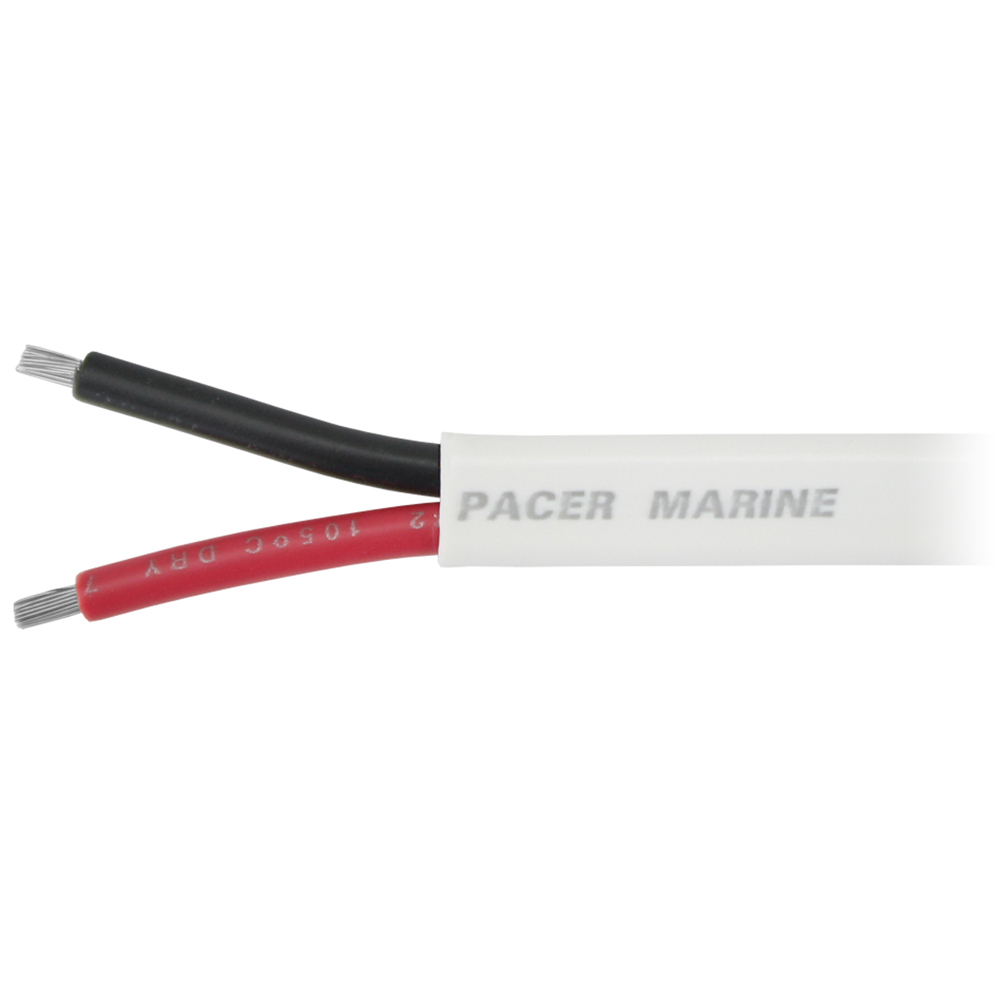

The Pacer Performance W6/2DC-FT is a premium 6/2 AWG duplex marine cable designed for both low voltage AC and DC applications in marine environments. Manufactured in the USA, this high-quality boat cable features two color-coded conductors (red and black) in a single extruded jacket, sold by the foot for custom installation lengths.
Superior Construction for Marine Environments:
Built with Type III annealed finely stranded tinned copper conductors conforming to ASTM B172 Class K standards, this cable delivers exceptional flexibility while providing superior corrosion resistance in harsh saltwater conditions. The tinned copper construction ensures long-lasting performance and reliable electrical connections even when exposed to moisture.
Advanced Moisture Protection:
The extruded PVC jacket employs a unique manufacturing process that fills all spaces between conductors during extrusion, eliminating voids where moisture or air could accumulate. The interior wires are coated with talcum powder to facilitate easy jacket removal during installation. This design makes the cable highly resistant to acid, alkali, abrasion, flame, gasoline, oil, and moisture.
Key Features:
- 6/2 AWG duplex cable with red and black color-coded conductors
- Type III annealed finely stranded tinned copper conductors (ASTM B172 Class K)
- Extruded PVC insulation with no gaps for maximum moisture protection
- Highly flexible construction for easy routing and installation
- Temperature range: -20°C to 105°C
- 600V voltage rating
- Manufactured in the USA to exacting quality standards
Certifications and Compliance:
- UL Standard 1426
- U.S. Coast Guard 33 CFR Part 183
- ABYC E-11.14 compliant
- Exceeds NMMA requirements
Ideal for marine electrical systems, battery connections, windlass installations, bow thrusters, and other high-current applications requiring reliable, corrosion-resistant wiring. Sold by the foot to accommodate any installation length needed.
