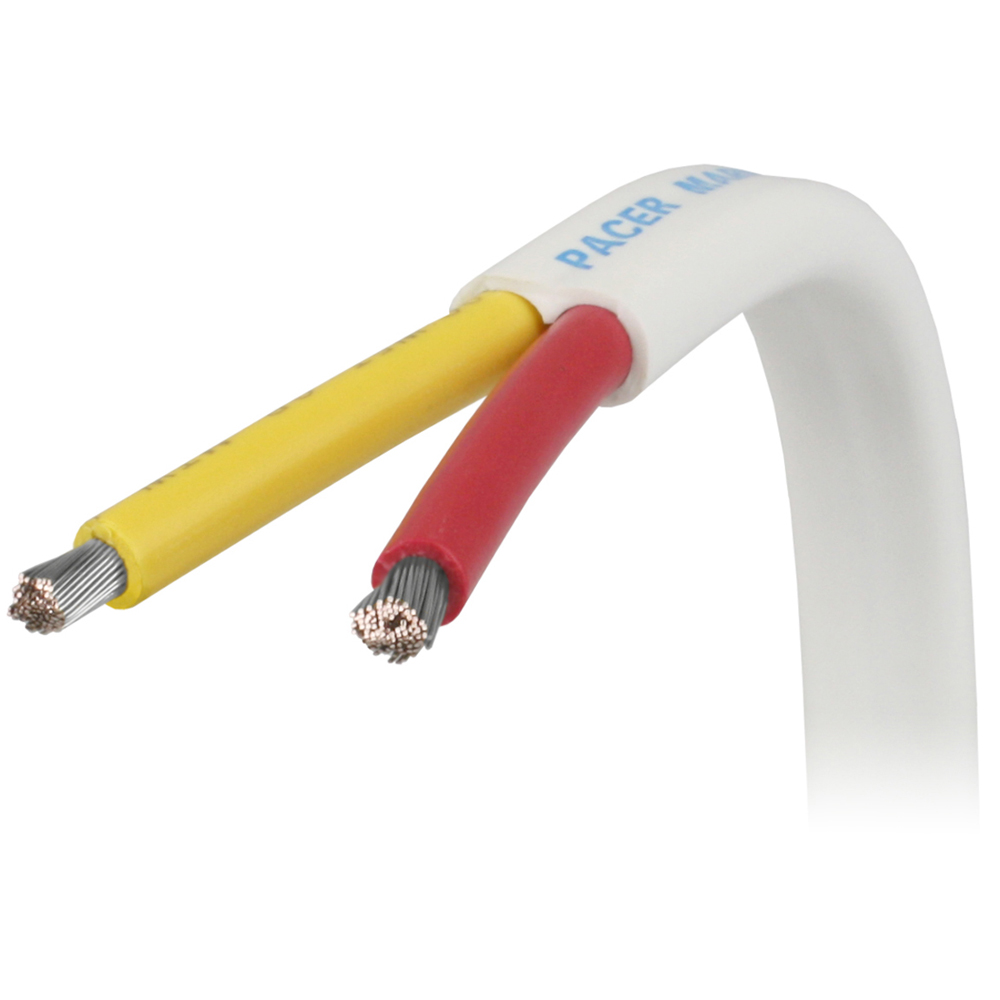

Pacer Performance W14/2RYW-500 14/2 AWG Safety Duplex Marine Wire 500ft Red/Yellow

The Pacer Performance W14/2RYW-500 is a premium 14/2 AWG safety duplex marine cable designed for demanding low voltage AC and DC applications in marine, RV, and automotive environments. This 500-foot spool features red and yellow color-coded conductors manufactured in the USA to exceed industry standards for marine electrical systems.

Superior Construction:

• Type III annealed finely stranded tinned copper conductors (ASTM B172 Class K) for maximum flexibility and corrosion resistance
• Extruded PVC jacket with no gaps between conductors prevents moisture and air accumulation
• Talcum powder coating on interior wires for easy jacket removal during installation
• Highly flexible color-coded insulation for easy wire identification

Technical Specifications:

• Gauge: 14/2 AWG duplex cable
• Voltage Rating: 600V
• Temperature Range: -20°C to 105°C
• Number of Conductors: 2 (Red and Yellow)
• Length: 500 feet

Resistance Properties:

• Resistant to acid, alkali, abrasion, flame, gasoline, oil, and moisture

Certifications and Compliance:

• UL Standard 1426
• U.S. Coast Guard 33 CFR Part 183
• ABYC E-11.14
• Exceeds requirements of UL, ABYC, and NMMA

This marine-grade duplex cable is ideal for boat electrical systems, bilge pumps, navigation lights, and other critical marine applications where reliability and corrosion resistance are essential. Sold individually as a 500-foot spool.
