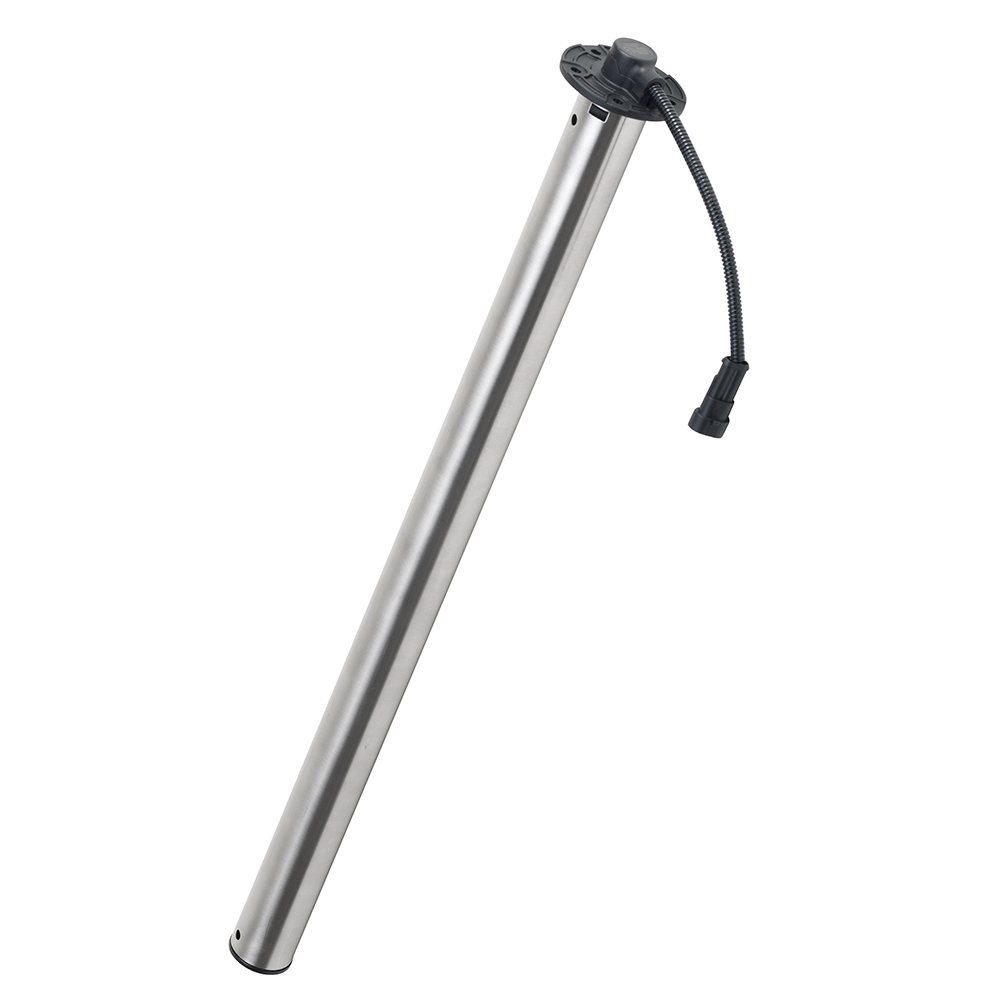

VDO Gauges A2C1746030001 Veratron Deep-Pipe Fuel Level Sender 160mm Stainless Steel

The VDO Veratron Deep-Pipe Level Sender is a precision fuel tank level sensor designed for marine and automotive applications where accurate fuel monitoring is critical. This 160mm stainless steel sensor features a unique tubular design that eliminates erratic gauge readings caused by fuel sloshing in rough conditions.

Key Features:

• 38mm diameter stainless steel vertical tube with internal float mechanism
• Anti-slosh baffle design with small holes at top and bottom stabilizes float position in all sea states
• 240 to 33 OHM resistance signal range for accurate analog fuel level measurement
• 5-hole SAE flange (54mm) for secure, standardized mounting
• TE Superseal 2-pole IP67 waterproof connector with 200mm wiring harness
• Compatible with fuel (gasoline, diesel, petroleum) and water applications
• Operating range: -25°C to 65°C (-13°F to 149°F)
• Operates on 6 to 24 VDC systems
• Compensation chamber design for improved accuracy

Installation Notes:

• Ensure at least 4mm clearance from tank bottom when selecting sensor length
• Complete installation kit, safety instructions, and installation instructions included
• IP67 protection rating for marine and harsh environments

This sensor provides stable, reliable fuel level readings even in challenging conditions, making it ideal for boats, RVs, and other vehicles where fuel slosh can cause inaccurate gauge readings.
