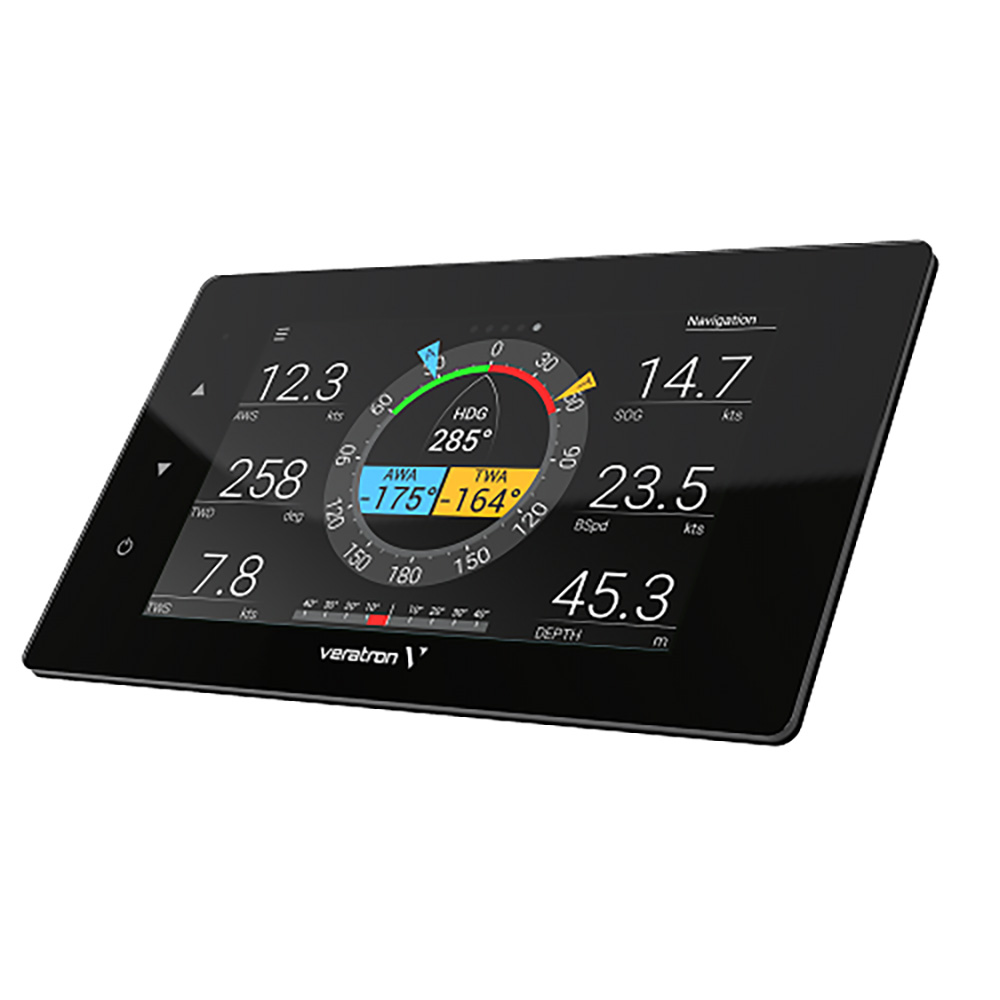

The Veratron VMH 70 is a best-in-class multifunction touchscreen display engineered to manage large amounts of complex data from your vessel's systems. Thanks to its real-time operating system, it ensures full control of vital engine information immediately after power up, making it ideal for both powerboat and sailboat applications.

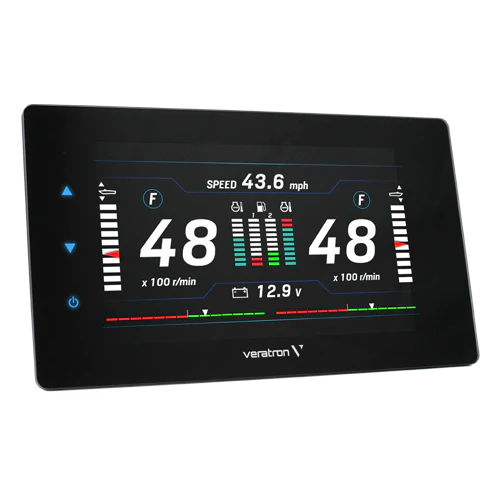

Easily configured to display information from up to four engines when connected to NMEA 2000 or two engines via J1939 or analog inputs simultaneously, the VMH 70 offers extensive customization options. Users can group and monitor similar systems such as single or dual engines, battery performance, fuel, water, waste, tank levels, rudder and trim position, onboard systems, navigation data, and weather information across more than 40 available data types.
The 7-inch sun-readable IPS TFT touchscreen features a mineral glass front lens and integrated light sensor that automatically adjusts brightness for easy reading without eye strain in any lighting conditions. Two composite video inputs allow you to monitor camera feeds from the engine compartment during navigation or keep an eye on the main deck while maneuvering.
The embedded NMEA 2000 gateway brings all sensor readings and alarms to your external multifunction display, eliminating the need for an additional converter. The display manages up to six resistive sensors, three voltage sensors, and one digital alarm, with all data distributed across two EasyLink channels to a maximum of 16 VMH 14 satellite gauges per channel.
Key Features:
- 7" sun-readable IPS TFT touchscreen with mineral glass front lens
- Slim panel installation profile with aluminum housing
- IPX7 protection rating for exposed device applications
- NMEA 2000 certified with embedded gateway functionality
- Dual SAE J1939 CAN ports for commercial engine compatibility
- Fully configurable analog inputs for direct sensor connections
- Customizable startup screen and GUI layouts
- Reliably operates in high-temperature marine environments
- Two composite video inputs for camera integration
- Compatible with up to 16 VMH 14 satellite displays per EasyLink channel
Technical Specifications:
- Nominal Voltage: 12/24V
- Operating Voltage: 9-32V DC
- Display Dimensions: 7 inches (220 x 128 mm outer)
- Mounting Hole: 206 x 118 mm
- Housing: Aluminum case with mineral glass front lens
- Mounting: Front panel mount via included mounting kit
- Connectors: 2x Molex MX-150 (12 pins), 1x DeviceNet M12 (5 pins NMEA 2000), 2x TE SuperSeal 1.5 (3 pins EasyLink), 1x M12 (4 pins video)
- Compliance: CE, UKCA, REACH, RoHS
What's Included:
- VMH 70 Display Unit
- Sun Cover
- Panel Mounting Kit
- Engine 1 Power and Data Cable
- Engine 2 Data Cable
- EasyLink Extension Cable
Sold as an individual unit. This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.
