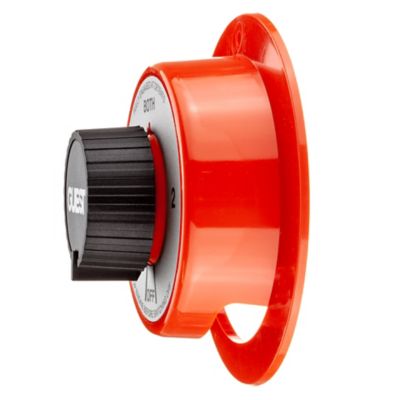

Seachoice 50-11504 Marine Battery Selector Switch 4 Position 1/2/Both/Off

The Seachoice 50-11504 Battery Select Switch is a marine-grade battery management solution that allows boaters to choose between two batteries for starting or charging, with the option to operate both batteries in parallel. This essential electrical component provides reliable switching capability for managing onboard power systems.

Key Features:

• Four-position rotary switch with positive click-stop on all positions: Battery 1, Battery 2, Both, and Off
• Compatible with 6-volt, 12-volt, 24-volt, and 36-volt systems
• Heavy-duty rating: 230 amps continuous duty, 345 amps momentary (5 minutes)
• 60% larger sweep contact area for improved performance and extended switch life
• Durable marine-grade polycarbonate case for corrosion resistance
• Conforms to U.S. Coast Guard standards for ignition protection
• 3/8-inch cable lug terminals for secure connections

This battery selector switch measures 5-1/2 inches in diameter by 2-5/8 inches high, making it suitable for most marine electrical panels. The robust construction and high amperage rating make it ideal for boats with multiple battery banks, allowing you to isolate batteries for charging, combine them for additional starting power, or switch between them to preserve battery life.
