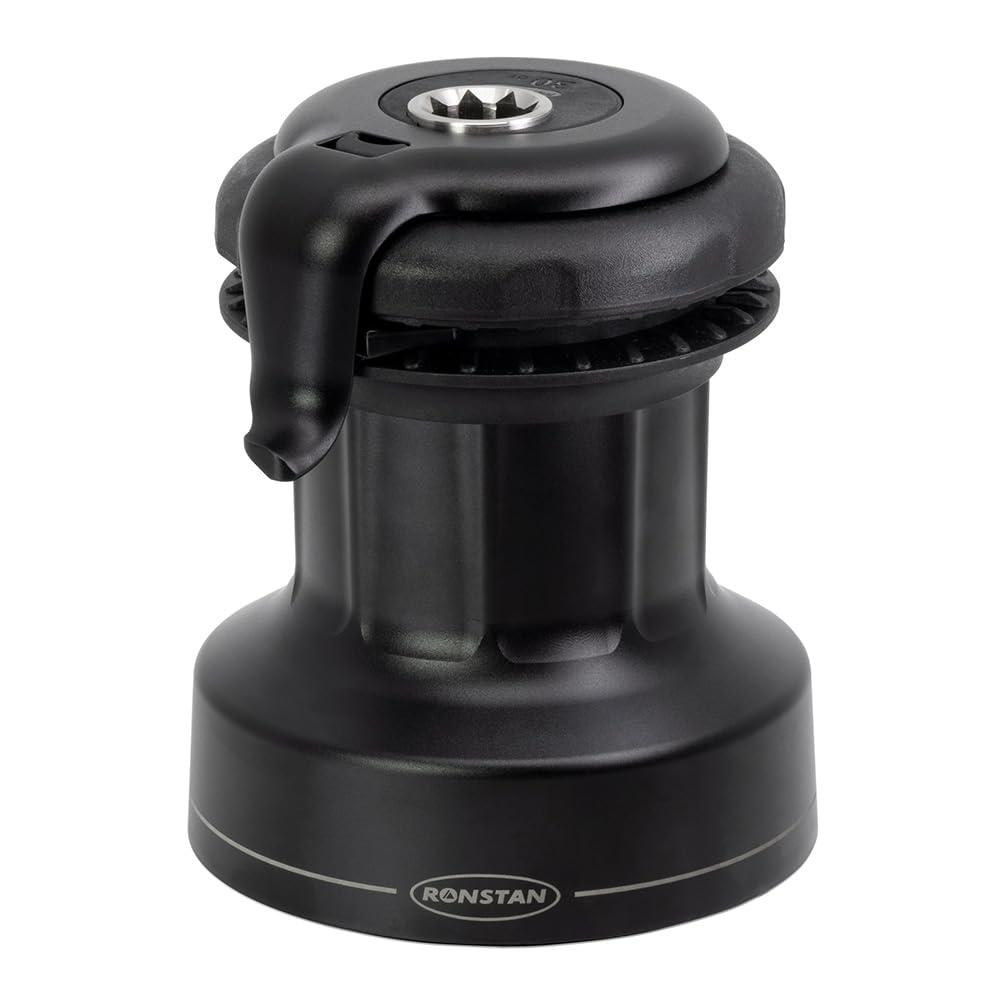

The Ronstan 30QT Orbit Winch represents a breakthrough in high-performance alloy winch design, combining lightweight construction with exceptional functionality. This two-speed winch features Ronstan's innovative QuickTrim self-tailer system, allowing sailors to ease lines smoothly without removing the winch handle or disengaging the self-tailer—a significant advantage during sail adjustments.
Power Ribs Technology:
The machined aluminum drum incorporates Ronstan's distinctive Power Ribs design, delivering superior line grip while minimizing rope wear. This advanced drum surface requires fewer wraps, reduces load on the self-tailer, and encourages lines to slide upward naturally to prevent riding turns. The non-abrasive surface provides smooth, controlled easing even under high loads.
Tool-Free Maintenance:
Orbit Winches are engineered for convenient servicing without any tools required. A spring-loaded release latch allows the self-tailing arm to be removed with a slight counter-clockwise rotation, providing full access to internal components. During reassembly, an audible click confirms proper engagement, and the self-tailing arm can lock in eight different positions at 45-degree increments.
QuickTrim Self-Tailer:

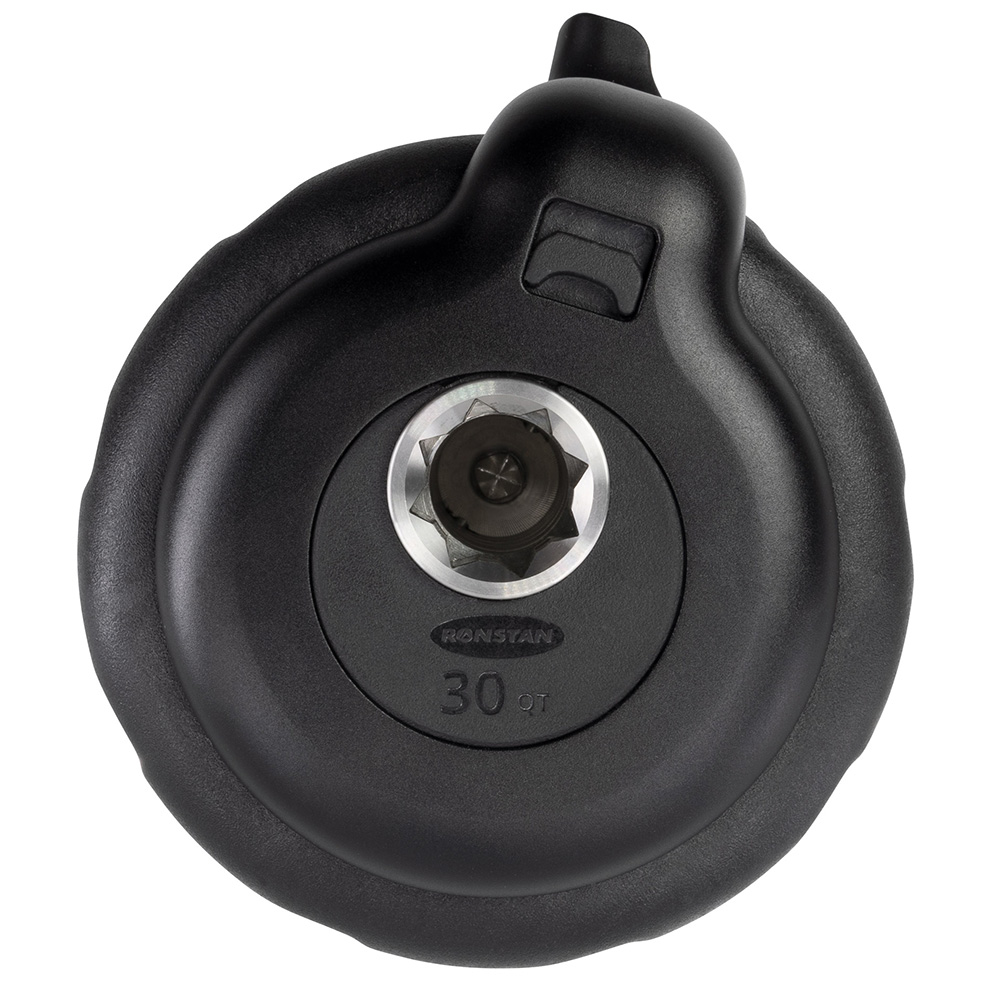

The patented QuickTrim feature enables safe line easing without removing the winch handle. A small counter-clockwise rotation of the self-tailing cover allows it to turn like a sheave as rope is eased, maintaining confident grip and control. Spring the cover back into place to resume normal self-tailing operation.
Key Features:
- Hard anodized aluminum drum and center stem for corrosion resistance
- Two-speed operation with gear ratios of 1.4:1 and 5.2:1
- Power ratio of 30.2:1 for maximum pulling efficiency
- Accepts line sizes from 7-12mm
- Maximum pulling load of 1,543 lbs (700kg)

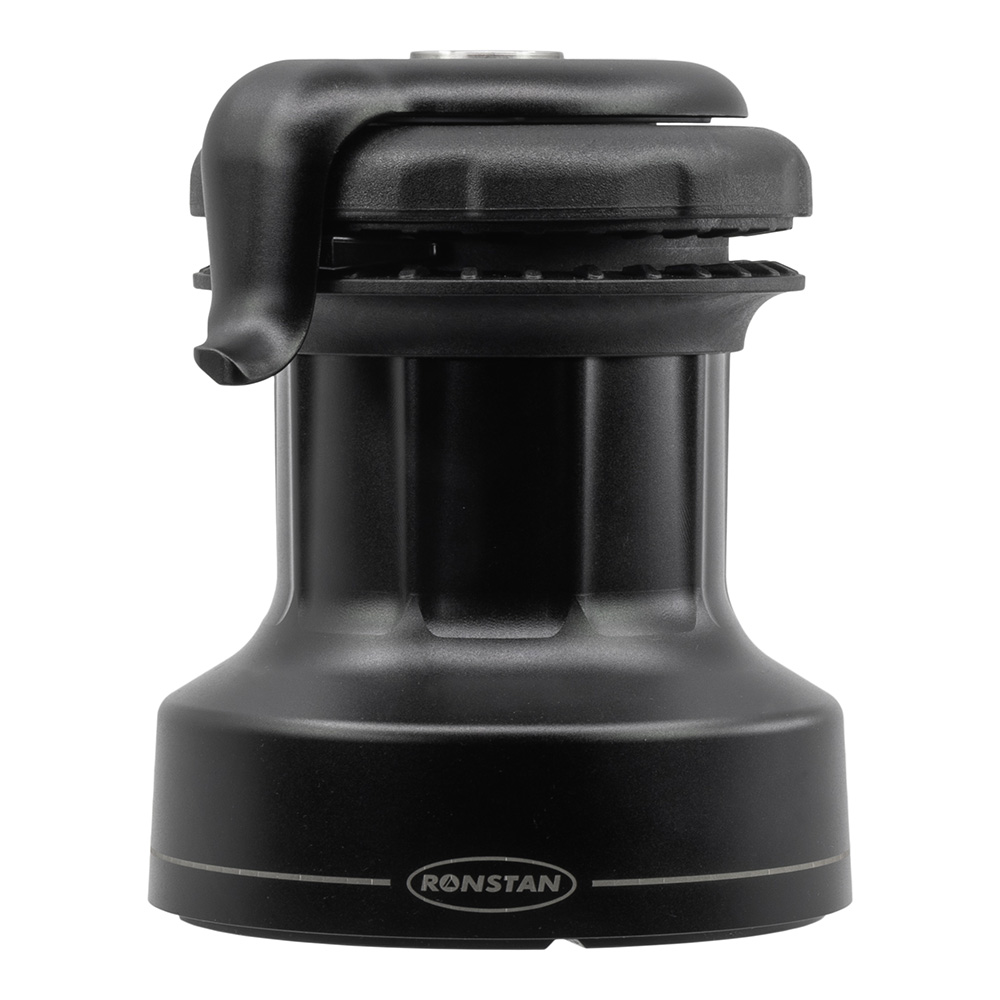

- Low profile design with 57mm line entry height
- Grade 316 stainless steel shaft and pawls

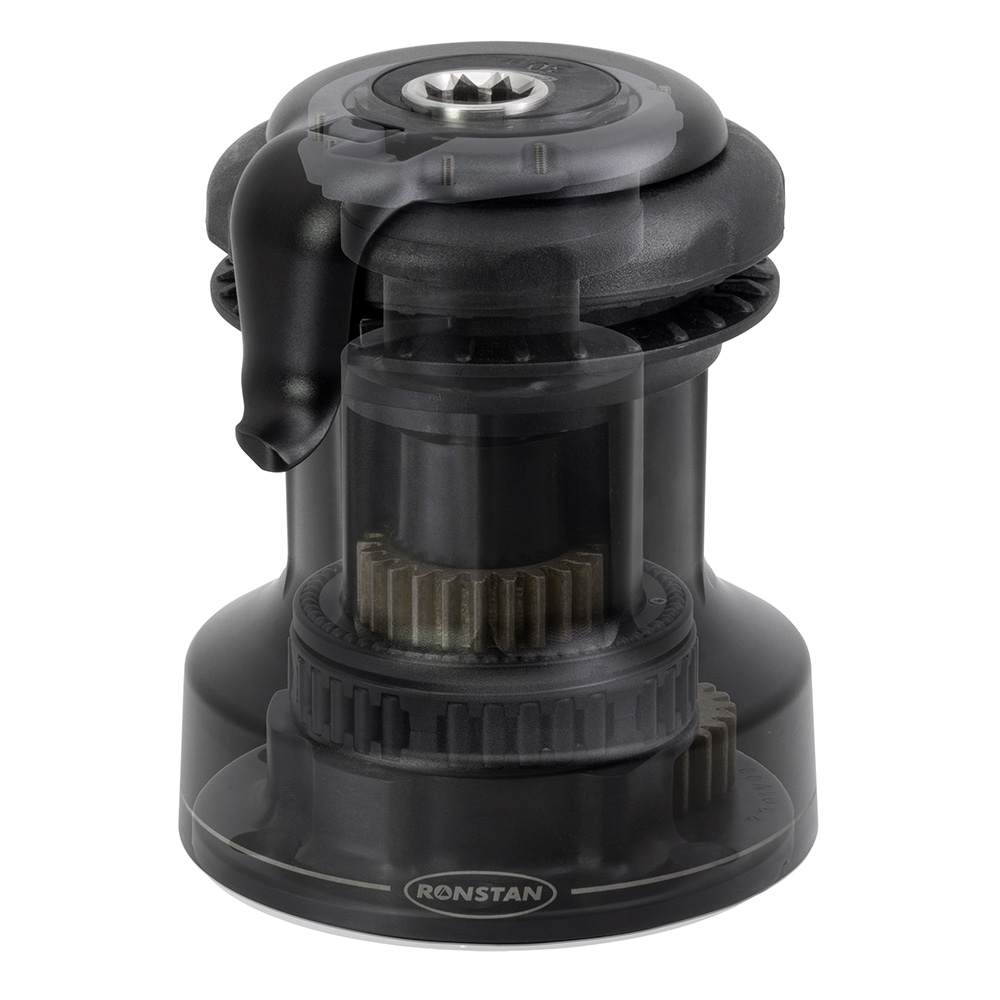

- Aluminum bronze gears with self-lubricating acetal bearings
- Glass-filled nylon self-tailer jaws for 6-10mm line
Specifications:
- Weight: 6.8 lbs (3.1kg)
- Drum diameter: 86mm (3.4 inches)
- Base diameter: 136mm (5.4 inches)
- Height: 166mm (6.5 inches)
- Power ratio 1st speed: 8.3:1
- Power ratio 2nd speed: 30.2:1
