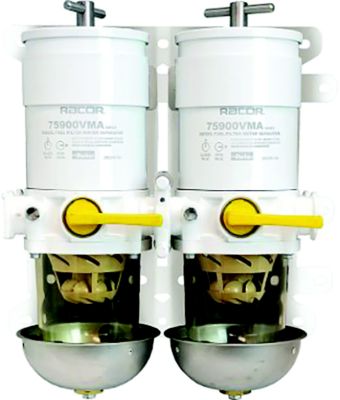

Racor 75900VMA10 Turbine Series Dual Marine Fuel Filter Water Separator 10 Micron

The Racor 75900VMA10 is a professional-grade dual fuel filter/water separator designed for marine diesel engine applications where reliability is critical. This V-Series Turbine assembly features two independent 900-series filter units with integrated shut-off valves, allowing simultaneous operation for maximum flow capacity or isolated servicing without engine shutdown.

Key Features:

• Maximum flow rate of 180 GPH (681 LPH) for high-performance diesel engines
• Three-stage filtration system effectively removes water, dirt, rust, algae, and other contaminants
• Large-handled integral shut-off valve on each unit eliminates need for manifolds and upstream valves
• Two 1-5/16"-12 UN-2B inlet ports and two outlet ports allow flexible installation configurations
• Clear water collection bowls with stainless steel heat shields for visual contamination monitoring
• UL-approved and USCG accepted for marine applications
• Includes two 10-micron Aquabloc Synergy filter elements (2040V-10) with 98% efficiency rating
• Fire-tested drain plugs and marine-grade construction for engine room environments

Advanced Filtration Technology:

The Racor Turbine Series utilizes proprietary Aquabloc Synergy media—a waterproof, rustproof engineered material with pleated and corrugated design that maximizes surface area. The three-stage process includes centrifugal separation (turbine spins off large particles and water), coalescence (small water droplets combine into larger drops), and final filtration through the 10-micron element. This system prevents costly injector damage and extends the operational life of downstream fuel system components.

Dual Configuration Advantages:

Use both filters simultaneously for higher flow capacity, or operate on one filter while servicing the other. The rotary valve allows quick switching between filters, making this ideal for commercial vessels and long-range cruising where uninterrupted engine operation is essential. Requires 5 inches of top clearance for filter element replacement.

What's Included:

• Dual 900VMA turbine filter assembly with mounting bracket
• Two 10-micron Aquabloc Synergy filter elements (2040V-10)
• Two 3/4" female NPTF adapters
• Port plugs
• Installation hardware
