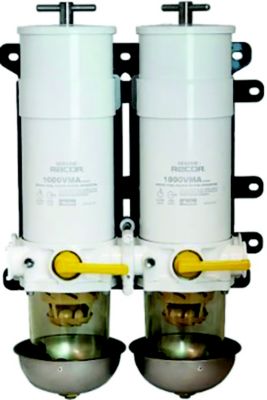

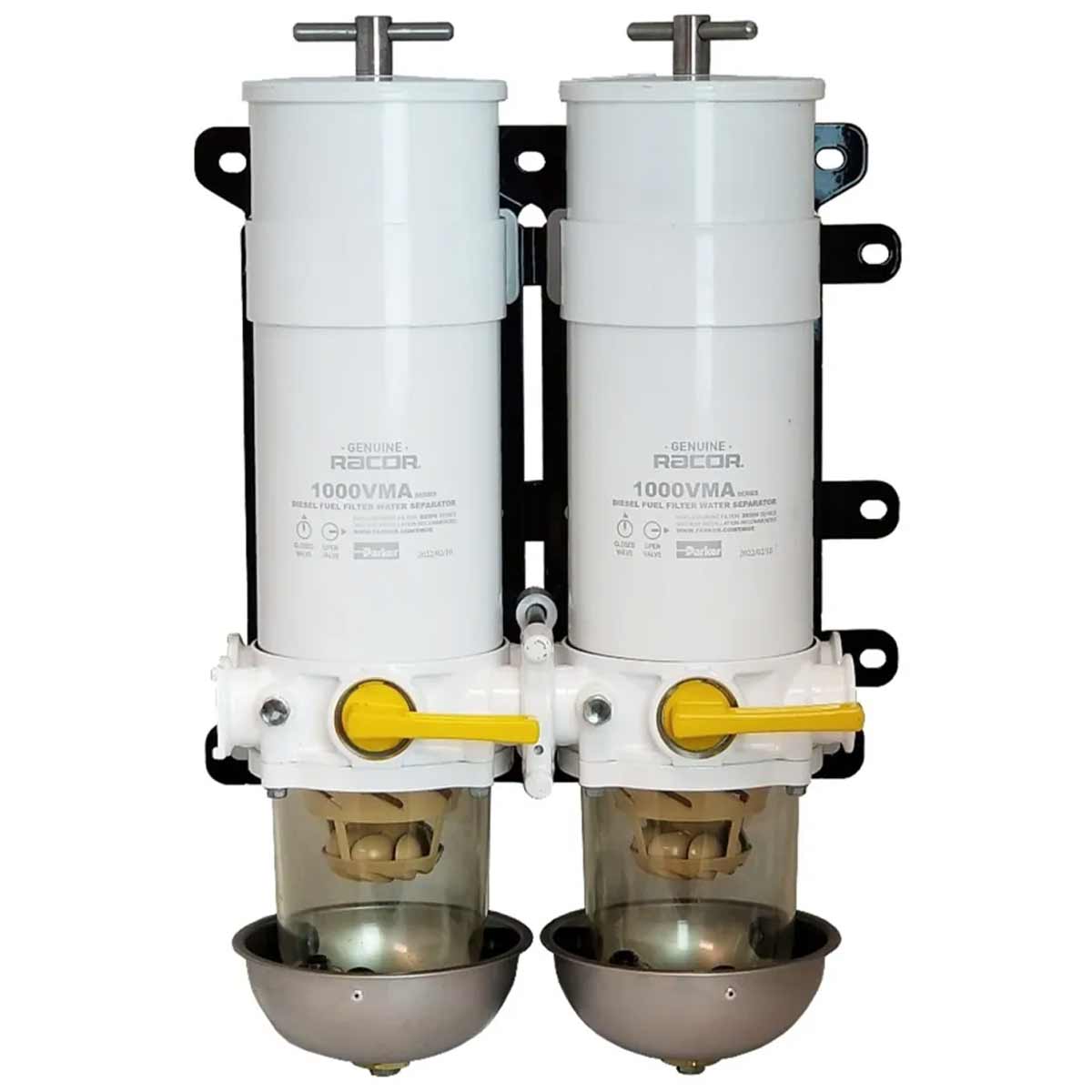

Racor 751000VMA10 Turbine Series Dual Marine Fuel Filter Water Separator 10 Micron

The Racor 751000VMA10 Turbine Series Dual Fuel Filter/Water Separator delivers professional-grade diesel fuel filtration and water separation for marine applications. This UL-listed and USCG-accepted assembly features an advanced V-Series design with integrated shut-off valves, eliminating the need for external manifolds and upstream valves in your fuel delivery system.

Advanced V-Series Design Features:

• Dual filter configuration allows simultaneous operation or isolated servicing without engine shutdown
• Maximum flow rate of 360 GPH (1362 LPH) for high-demand marine diesel engines
• Integrated large-handle shut-off valve on each unit for easy individual filter isolation
• Two inlet and two outlet ports (1-5/16"-12 UN-2B) allow flexible installation configurations
• Lower fuel flow restriction compared to previous generations
• 10 micron Aquabloc Synergy filter elements with 98% efficiency rating

Three-Stage Filtration System:

• Stage 1: Turbine centrifuge separates large solids and water droplets
• Stage 2: Coalescing chamber causes small water droplets to bead up and fall to collection bowl
• Stage 3: Aquabloc engineered media filters algae, rust, dirt and particulates

Marine-Grade Construction:

• Clear water collection bowls with stainless steel heat shields for visual inspection
• Fire-tested drain plugs for enhanced safety
• Waterproof and rustproof Aquabloc media extends filter life
• Includes two 3/4" NPTF adapters and port plugs

The 751000VMA10 uses 2020V series replacement elements and requires 10 inches of top clearance for filter element replacement. Maximum operating pressure is 15 PSI. This dual turbine assembly provides the ultimate protection for diesel engine fuel systems in marine environments where reliability is critical, including protection against contamination from dirt, rust, algae, asphaltenes, varnishes, and water condensation.
