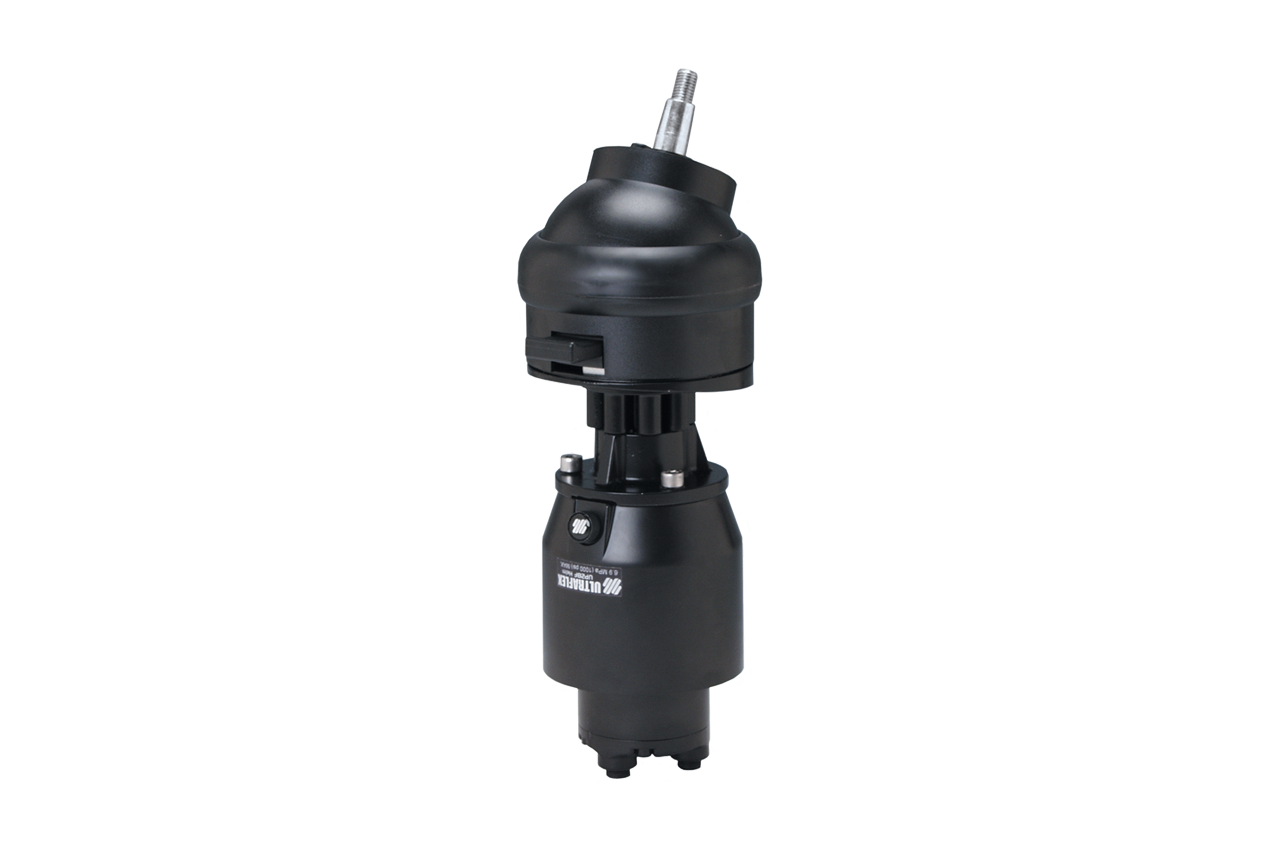

Uflex UP28T Tilt Mount Hydraulic Helm Pump 1.7 Cu In

The Uflex UP28T Tilt Mount Hydraulic Helm Pump is a high-performance marine steering component designed for reliable boat control. This compact helm pump features a 1.7 cubic inch (28cc) displacement with a 5-piston design, providing smooth and responsive steering for outboard and sterndrive applications.

Key Features:

• 1.7 cu in displacement with 5-piston ball bearing piston race for smooth operation
• X52 tilt mechanism with 48° tilt range and five locking positions for comfortable helm positioning
• Integral relief valve for over-pressure protection (70 Bar/1000 PSI)
• Built-in lock valve for positive rudder lock and secure steering control
• Durable cast iron rotor for extended service life
• Stainless steel 3/4" tapered shaft with easily accessible seals for maintenance
• Includes 90° adjustable fittings for 3/8" hydraulic tube
• Maximum steering wheel diameter: 16 inches (406mm)
• Compatible with competing cylinders, hoses, fittings, and hydraulic oil

This tilt mount helm pump is constructed from corrosion-resistant materials for long-lasting marine use. The UP28T-X52 replaces the older UP28T-N model and fits standard Ultraflex tilt mount rotary and rack and pinion steering systems. Optional remote fill adapter (Kit F) available separately for easier system bleeding and maintenance.
