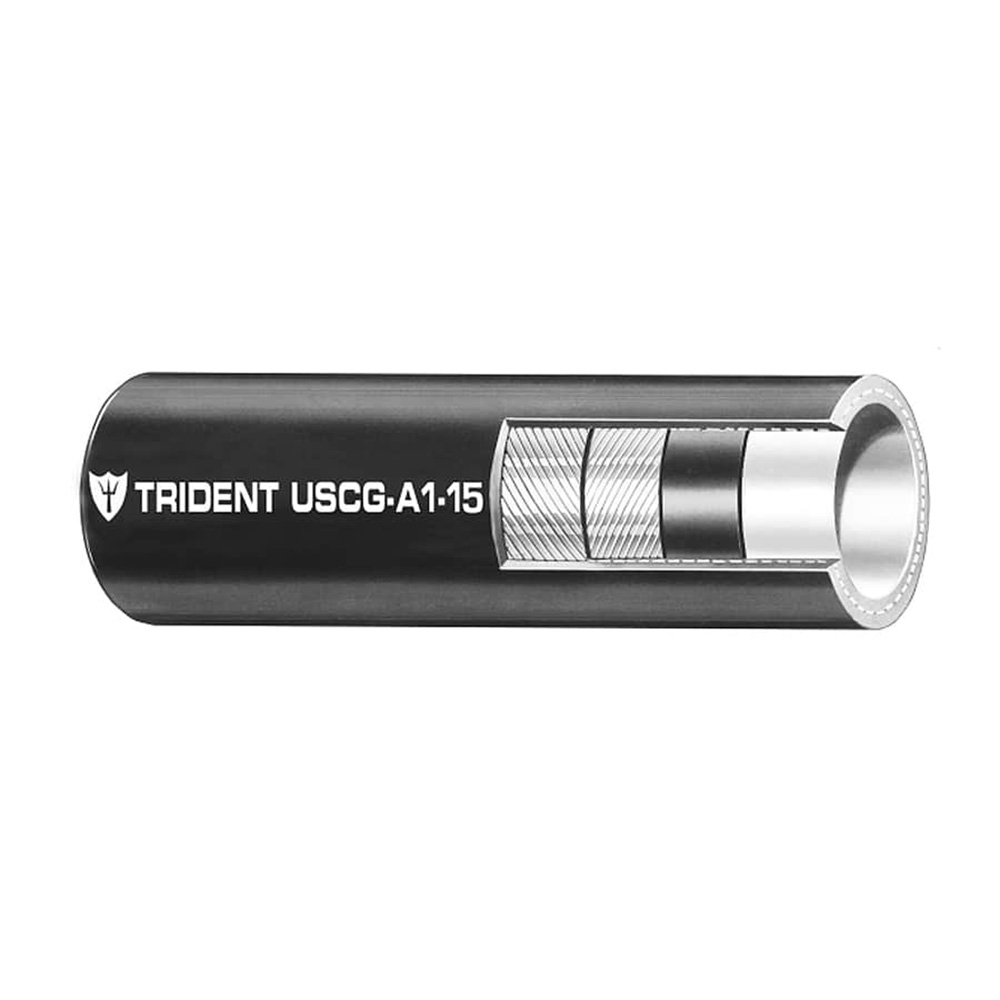

Trident Marine 365-0386 Barrier Lined Marine Fuel Hose 3/8" x 50' Type A1-15

The Trident Marine 365-0386 is a premium 3/8-inch inner diameter marine fuel hose designed for gasoline and diesel applications. This 50-foot boxed hose features a proprietary barrier liner technology that prevents direct fuel contact with the rubber, significantly reducing fuel permeation and extending service life.

Key Features:

• Barrier liner construction with nylon internal barrier and NBR tube prevents fuel degradation
• Compatible with gasoline (including ethanol blends up to E85) and diesel (including biodiesel blends up to B100)
• Two-spiral polyester reinforcement provides excellent durability and flexibility
• NBR/PVC blend cover offers superior resistance to fuel, fire, aging, heat, cold, and ozone
• 2-inch bend radius for easy routing in tight spaces
• 100 PSI working pressure, 400 PSI burst pressure
• Temperature range: -20°F to 212°F (-28°C to 100°C)
• Low permeation rate of less than 10 g/m²/24 hrs (CE10)

Applications: Suitable for marine fuel distribution, return lines, vent lines, and transfer applications on boats with inboard, outboard, or stern drive engines.

Certifications: Exceeds ABYC H-24 & H-33, SAE J1527, ISO 7840, USCG Type A1-15 standards. CARB Executive Order RM-17-008 and EPA Certified low permeation Type A1-10. NMMA Type Accepted and CE certified.

Specifications: Inner diameter 3/8" (9.5mm), outer diameter 0.681" (17.3mm), weight 15.6 lbs per 100 feet. Comes in convenient 50-foot boxed length.
