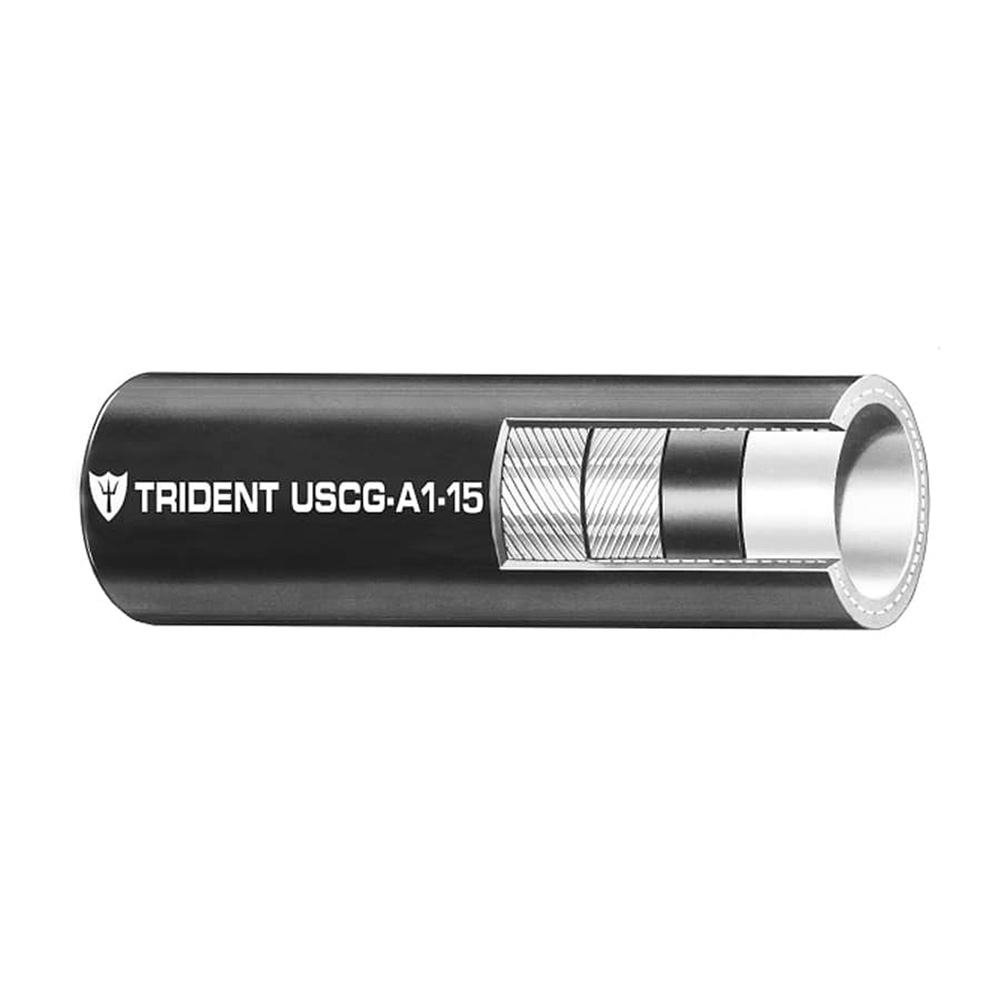

Trident Marine 365-0560-FT Type A1-15 Barrier Lined Marine Fuel Hose 5/16 Inch

The Trident Marine 365-0560-FT is a Series 365 Barrier Lined A1-15 marine fuel hose designed for both gasoline (including ethanol blends up to E85) and diesel (including biodiesel blends up to B100). This hose features a unique internal nylon barrier liner that prevents fuel from direct contact with the rubber, enhancing resistance to permeation, aging, fire, heat, cold, and ozone.

Key Features:

• 2-spiral reinforced construction with barrier liner on inside surface of tube
• 5/16 inch inner diameter with 0.611 inch outer diameter
• 100 PSI working pressure rating
• Temperature range: -20°F to 212°F (-28°C to 100°C)
• Excellent flexibility and bendability for various marine fuel system applications
• 5-year warranty, CARB and EPA compliant
• Exceeds ABYC H-24 & H-33, SAE J1527, ISO 7840, USCG Type A1-15 standards

Constructed with NBR/PVC blend cover and polyester 2-spiral reinforcement. This low permeation fuel hose is sold by the foot from 250-foot reels, making it ideal for marine fuel distribution, return, vent, and transfer applications.
