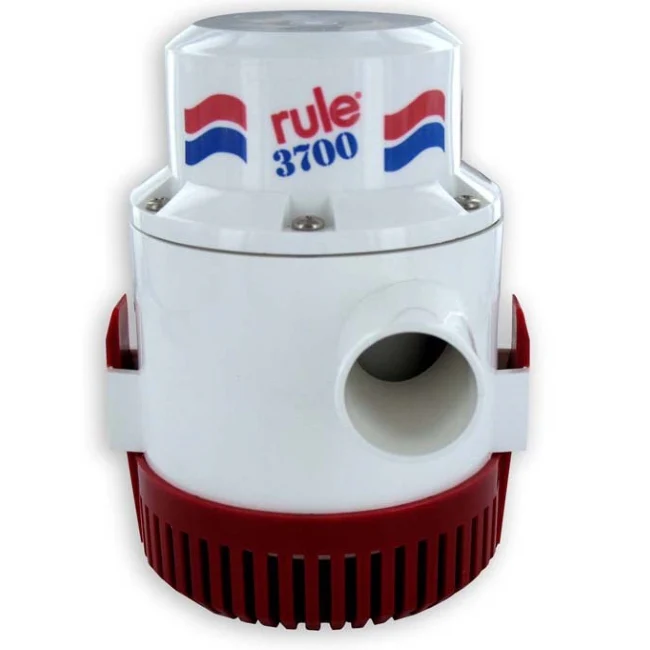

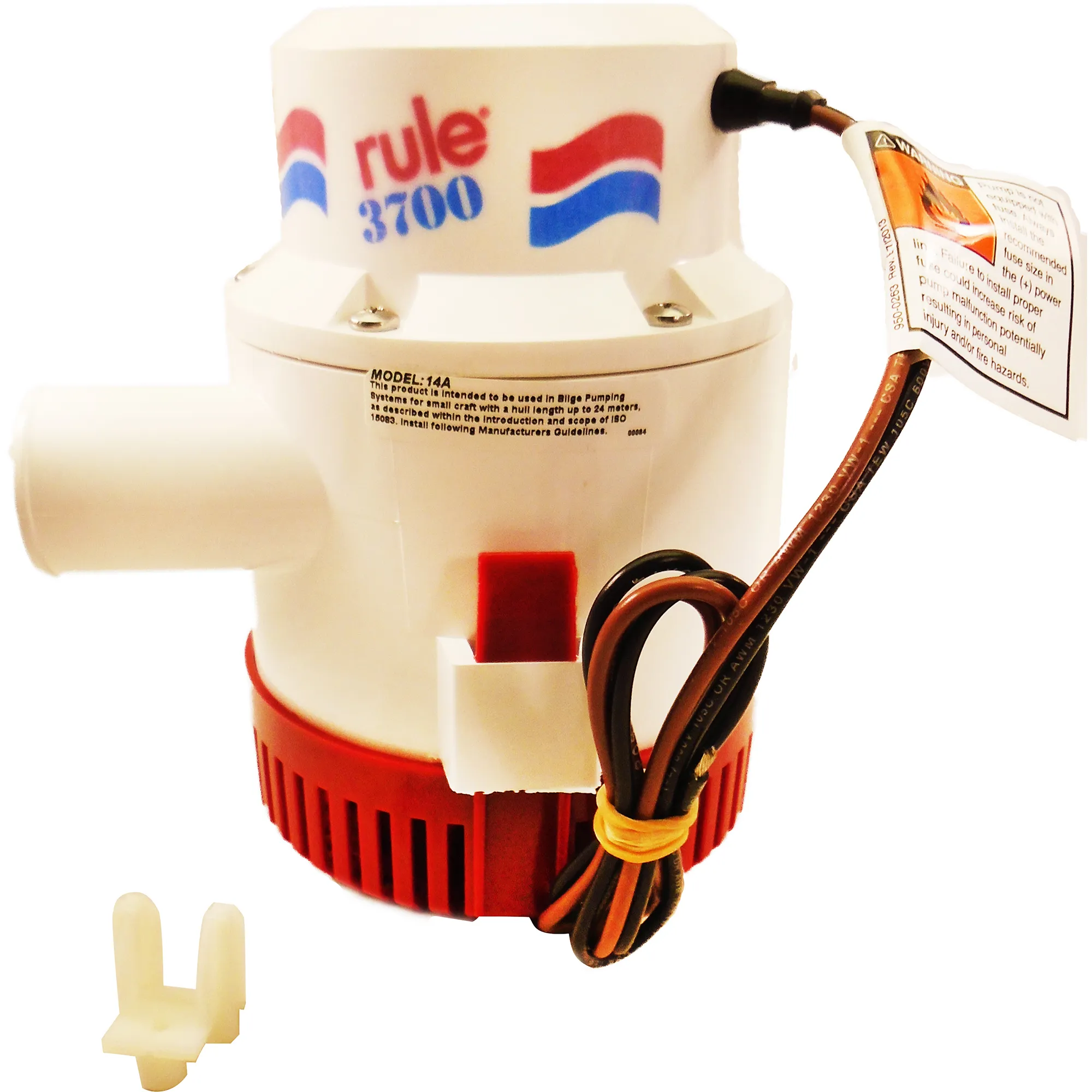

Xylem 14A Heavy Duty 3700 GPH Non-Automatic Bilge Pump 12V

The Xylem 14A is a heavy-duty 3700 GPH bilge pump engineered to commercial standards for both commercial and pleasure boat use. This non-automatic model requires a separate float switch or panel-mounted switch for operation (sold separately), giving you full control over pump activation.

Key Features:

• High capacity flow rate of 3700 gallons per hour (14,010 liters per hour)
• Removable motor cartridge design allows easy cleaning of strainer and impeller area when clogged
• 1-1/2 inch discharge outlet with hose barb fitting
• 12V DC operation with 15.5 amp current draw
• Completely submersible with ignition protection for safe use on gasoline-powered vessels
• Rust and corrosion protected construction for long-lasting marine durability
• Silent, vibrationless operation with compact, energy-efficient motor
• Able to run dry without motor burn-out
• Snap-lock strainer base for easy maintenance
• Stainless steel shaft and marine-grade sealed wiring
• Anti-airlock protection and moisture-tight seals

Technical Specifications:

• Voltage: 12V DC
• Maximum Current Draw: 15.5 Amps
• Recommended Fuse: 25 Amp
• Dimensions: 7-1/4" H x 4-7/8" W
• Port Size: 1-1/2 inch discharge outlet
• CE and ISO 8849 certified, NMMA listed, meets ABYC specifications
• 3-year limited warranty

This pump is part of Rule's trusted Cartridge Series, known for trouble-free operation and reliability in demanding marine environments. The removable motor cartridge is a valuable feature that allows you to carry a spare motor for added security and enables quick cleaning when debris accumulates. Replacement motors are sold separately for convenient field servicing.

Performance Note: Like all centrifugal bilge pumps, capacity is rated at open flow. Actual output decreases with lift height—approximately 87% of rated capacity at 3 feet of lift, 75% at 6 feet, and 62% at 9 feet. Output is also affected by discharge hose length, elbows, and hose type.
