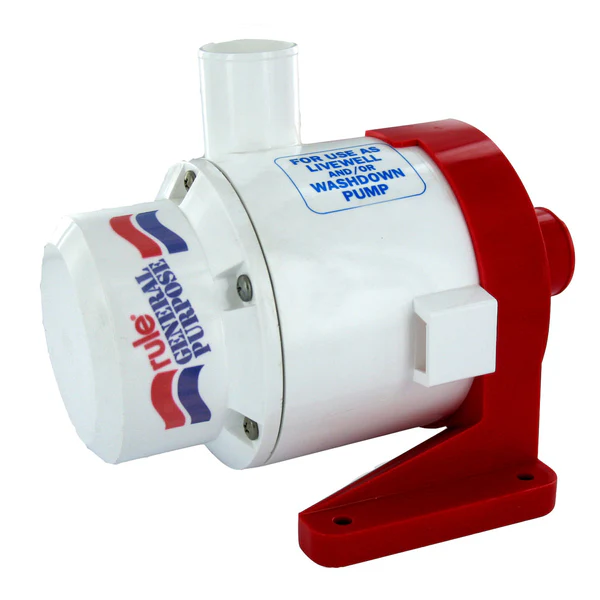

Xylem 17A General Purpose Centrifugal Pump 3800 GPH 12V

The Xylem Rule 17A is a general purpose centrifugal pump designed for use as a washdown pump and/or to circulate water to livewell tanks. Heavy duty construction for use on commercial or pleasure boats. This 12V electric centrifugal impeller pump delivers 3,798 gallons per hour of water at low pressure.

Key Features:

• 12 volts DC operation with maximum current draw of 15.5 amps
• 1-1/2 inch (38mm) inlet and 1-1/2 inch (38mm) discharge outlet
• Totally submersible with output port that can be oriented in 3 different directions
• Compact, efficient long-life motor
• Rust and corrosion proof construction
• Silent and vibration-free operation
• Recommended fuse size: 25 amp

Important Installation Notes:

• Must be mounted below the waterline
• Does not deliver high pressure and is not self-priming
• Maximum recommended discharge head: 3 meters
• Requires flooded inlet line (non-self-priming)

This general purpose pump excels in applications requiring high water flow at low pressure, making it ideal for washdown systems and livewell circulation on both commercial and recreational marine vessels. The durable plastic body ensures long-lasting performance in harsh marine environments.
