RVP Products 8430-3861 Coleman-Mach J-Box Control Box Assembly

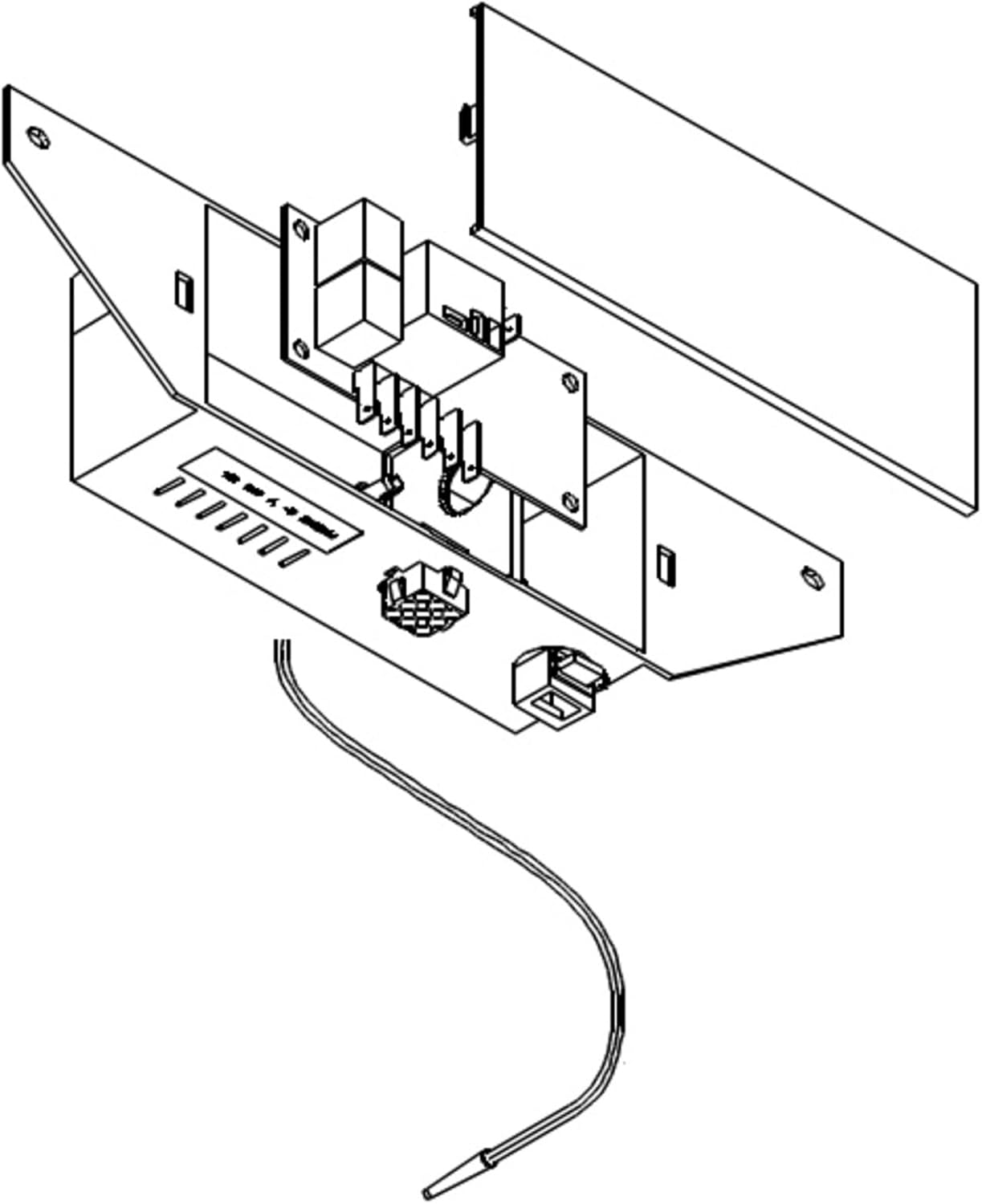

The Coleman-Mach 8430-3861 J-Box Assembly is a ceiling assembly circuit board designed for Coleman Mach 8330, 8430, and 7330 model air conditioners, and includes the terminal board and circuit board. This control box serves as the critical link between the air conditioner and thermostat, facilitating communication and coordinated operation by accepting both 120V and 12V wiring for the power requirements of the air conditioner and thermostat.

Key Features:

• Cool-only control box assembly with terminal board and circuit board
• Compatible with Coleman Mach 8330, 8430, 7330, 3000, and 4000 model air conditioner ceiling assemblies
• Efficiently distributes power to various system components and relays information between thermostat and air conditioner
• Replaces previous part number 8430-3851
• OEM original equipment for reliable performance

This junction box assembly is an essential component for maintaining proper operation of your Coleman-Mach RV air conditioning system, ensuring effective climate control and system reliability.
