Pacer Performance TDT06F-4RS DT Deutsch Plug Repair Kit 14-18 AWG 4 Position

The Pacer Performance DT Deutsch Plug Repair Kit provides all the components needed to repair or assemble a 4-position DT series connector for 14-18 AWG wire applications. This complete kit uses larger size 16 contacts with 13-amp continuous capacity, designed for reliable wire-to-wire connections in demanding automotive, marine, and powersports environments.

Key Features:

• Complete repair kit includes all parts needed to assemble a connector plus extra terminals
• Wedge locks ensure proper contact alignment and retention
• Hand-insertable and removable contacts for easy field repairs
• Redundant silicone seals provide superior moisture protection
• Glass fiber reinforced plastic housing for exceptional durability
• Cavity plugs included to seal unused circuits

Technical Specifications:

• Number of Cavities: 4 position
• Contact Size: 16 (13 amp continuous capacity)
• Wire Gauge: 14-18 AWG (uses size 16 contacts for 14 AWG applications)
• Configuration: Rectangular receptacle with sockets
• Operating Temperature Range: -55°C to 125°C (-67°F to 257°F)
• Ingress Protection: IP68 and IP6K9K rated for dust and water resistance
• Compliances: EU RoHS/ELV, UL-94 Recognized

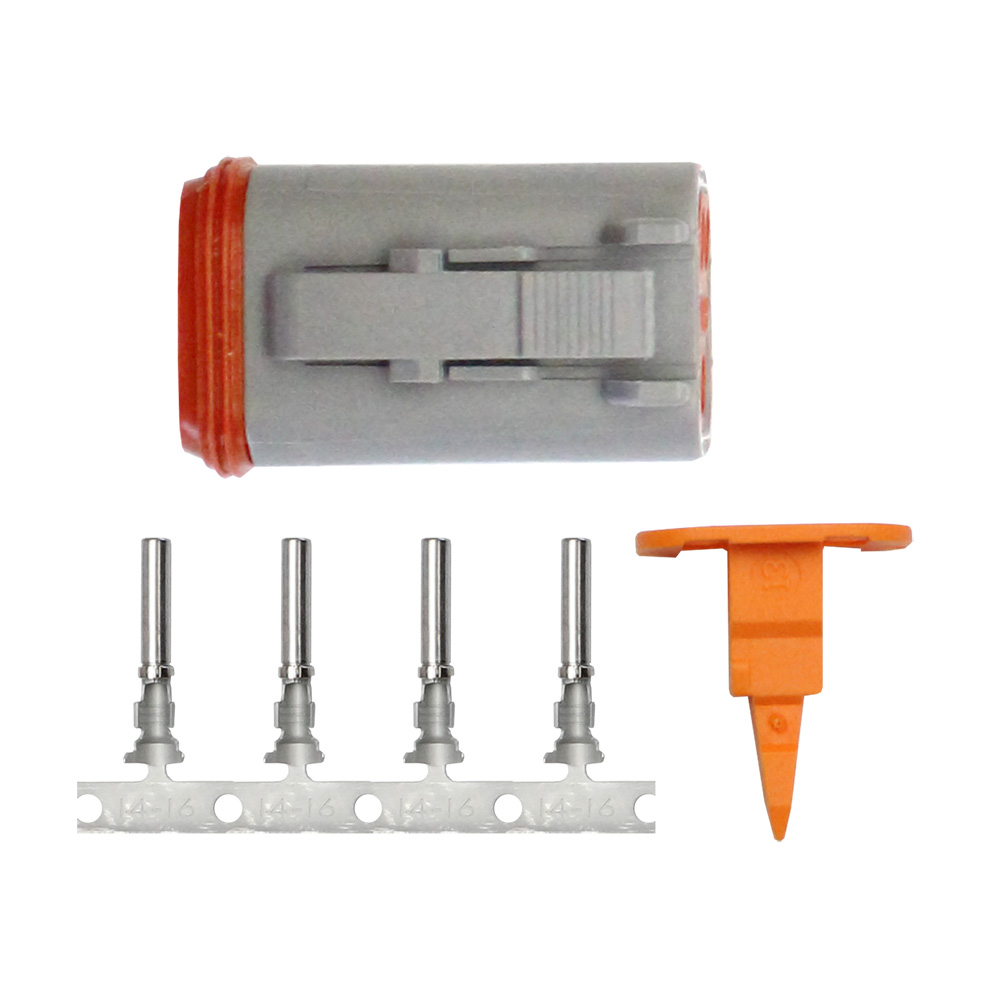

Kit Contents:

• (1) 4-position plug housing
• (1) 4-position wedge lock
• (5) socket terminals (includes 1 extra)
• (2) cavity plugs for sealing unused positions

The DT series connector system offers field-proven reliability for enclosed wire-to-wire applications, making it ideal for electrical repairs on vehicles, boats, RVs, and powersports equipment where moisture resistance and vibration tolerance are critical.
