Pacer Performance TDT06F-6RS DT Deutsch 6-Position Plug Repair Kit 14-18 AWG

The Pacer Performance DT Deutsch Plug Repair Kit provides a complete solution for repairing or building 6-position DT series connectors for 14-18 AWG wire applications. This comprehensive kit uses larger size 16 contacts designed for 13-amp continuous capacity, making it ideal for heavy-duty automotive, marine, and powersports electrical connections.

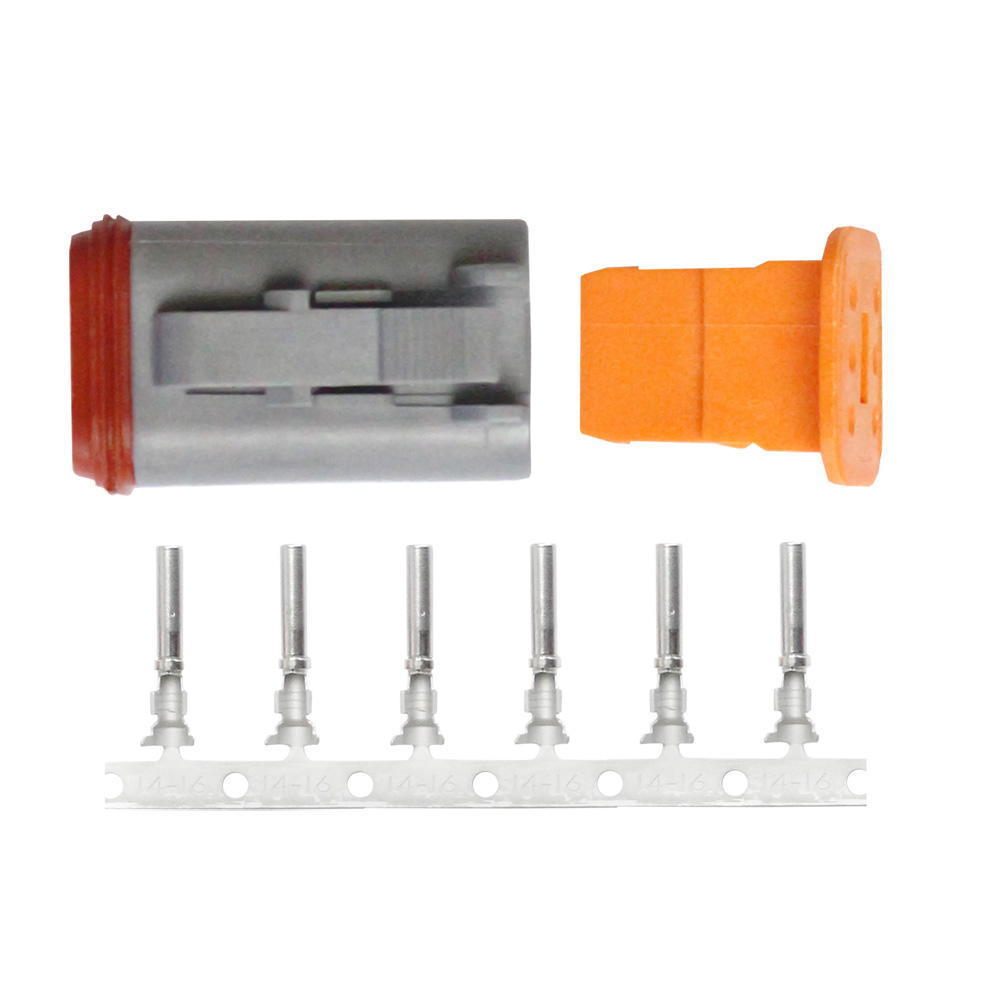

Complete Kit Contents:

• 1 six-position rectangular plug housing
• 1 six-position wedge lock for contact retention
• 8 socket terminals (includes 2 extras)
• 3 cavity plugs to seal unused circuits

Key Features:

• Hand-insertable and removable contacts for easy field assembly
• Wedge lock system ensures positive contact alignment and retention
• Redundant silicone seals provide superior environmental protection
• Glass fiber reinforced plastic housing for durability
• IP68 and IP6K9K ingress protection rating
• Operating temperature range: -55°C to 125°C (-67°F to 257°F)

Technical Specifications:

• Number of Positions: 6
• Contact Size: 16 (13 amp continuous capacity per circuit)
• Wire Gauge Compatibility: 14-18 AWG (uses size 16 contacts optimized for 14 AWG)
• Connector Type: Receptacle/socket configuration
• Compliances: EU RoHS/ELV, UL-94 Recognized

The DT series connector system offers field-proven reliability for wire-to-wire applications in harsh environments. The enclosed design with multiple sealing points ensures protection against water, dust, and contaminants, making it suitable for underhood automotive applications, marine electronics, and off-road vehicle electrical systems.
