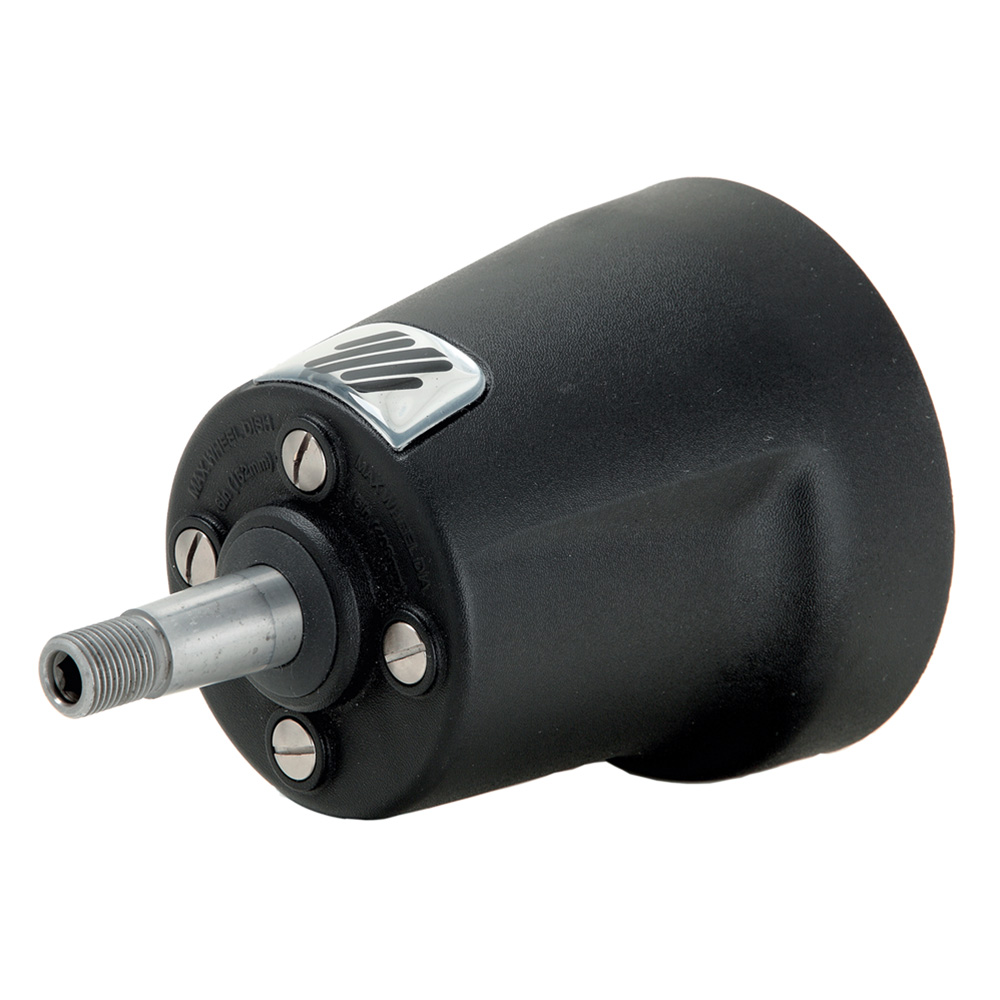

Uflex UH32-F Masterdrive 32CC Front Mount Hydraulic Helm

The Uflex Masterdrive UH32-F is a professional-grade 32CC front mount hydraulic helm designed for reliable marine steering systems. This single-station helm unit provides precise steering control for boats equipped with single-cylinder hydraulic steering setups.

Key Features:

• 32CC (1.95 cubic inch) displacement per revolution for responsive steering
• Front mount configuration for versatile installation options
• Built-in relief valve for system protection and safety
• 3/4" tapered shaft compatible with standard marine steering wheels
• Corrosion-resistant painted body construction for marine environments
• Waterproof design ensures reliable operation in wet conditions
• Compatible with wheels up to 16" (406mm) in diameter

Specifications:

• Mounting Type: Front Mount
• Application: Single Cylinder Systems
• Number of Stations: 1
• Displacement: 32CC (1.95 cu. in.) per revolution
• Maximum Wheel Diameter: 16" (406mm)
• Shaft: 3/4" tapered

The Masterdrive series is also available in 40CC displacement and tilt mount versions. For dual station installations, refer to the MD2 Kit. The tilt mount version (if needed) is compatible with Uflex X66-40613 M tilt mechanism.
