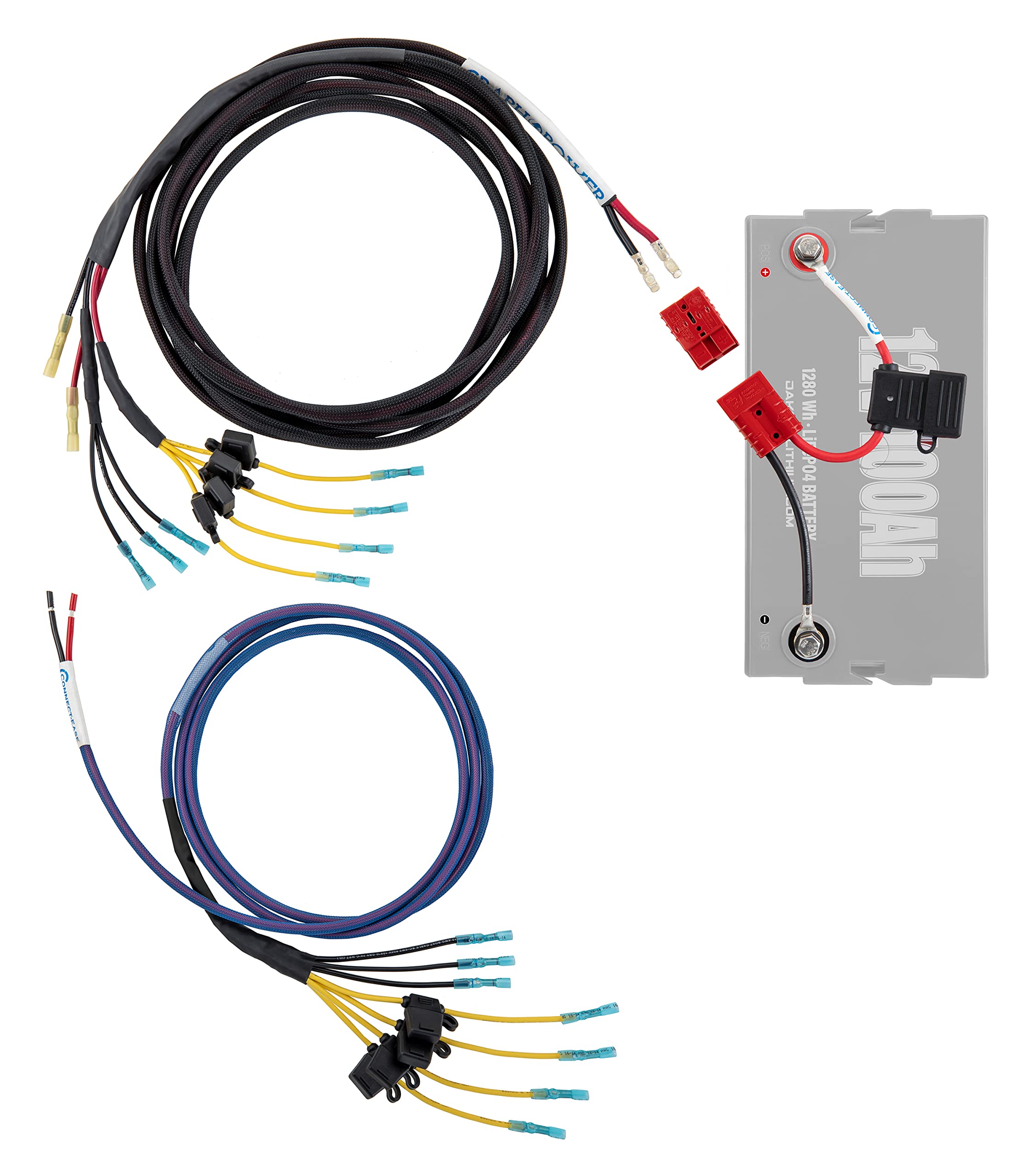

The Connect-Ease Graph Power Pro is a professional-grade marine electronics wiring harness kit designed specifically for 19-22 foot console boats. This plug-and-play system was engineered to solve the connections and power issues associated with rigging and running sophisticated fishing electronics, providing clear, clean power and direct connections.
Key Features:
- Pro Console Backbone: 16 feet of 8 gauge sheathed marine-grade wire with 4 fused connections
- Pro Bow Backbone: 13 feet of 8 gauge sheathed marine-grade wire with 4 fused connections
- 30 Amp fused quick-snap connection at the battery—no switch needed
- Your choice of 3 or 5 amp fuses at the graph connections to meet manufacturer recommendations
- Bullet connections and sheathed housing for hassle-free installation and snaking through tight spaces
- Lithium battery compatible
Universal Compatibility:
GRAPH POWER is designed to work with all manufacturers of fresh- and saltwater marine electronics, including Humminbird, Garmin, Lowrance, and more. Powers up to 8 marine electronics devices including fish finders, GPS units, NEMA boxes, pucks, and forward-facing sonar systems.
Superior Construction:
Connect-Ease uses the best marine-grade connections and heat-shrinkable crimped connections that are waterproof, reject RF interference, and stay connected on big water and waves. The multi-layered protection system ensures crystal-clear sonar imaging by eliminating voltage drop and RF noise that can degrade electronics performance.
This professional wiring solution provides separate power runs for console-mounted and bow-mounted electronics, ensuring each device receives optimal voltage directly from your battery for maximum performance and screen clarity.
