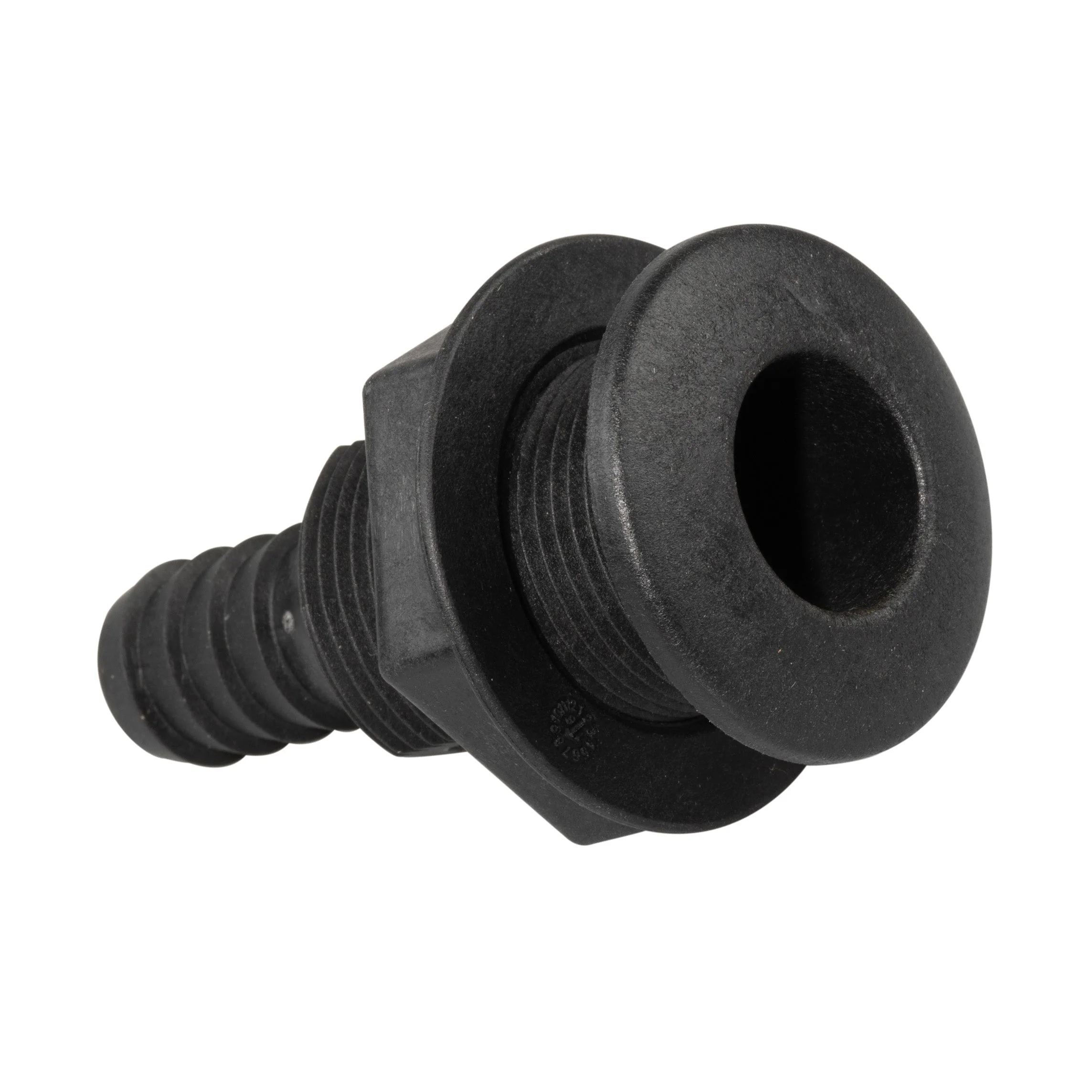

White Cap Industries 3801B 3/4" Nylon Straight Thru-Hull with Barb

The White Cap Industries 3801B is a 3/4" straight thru-hull fitting with barb, constructed from durable glass-filled nylon. This marine-grade fitting features 316 stainless steel and nylon construction, providing excellent corrosion resistance for below-waterline applications on boats and marine vessels.

Key Specifications:

• Hose Size: 3/4"
• Flange O.D.: 1-7/8"
• Thread Length: 1-1/2"
• Barb Length: 1"
• Overall Length: 3-1/8"
• Cut Out: 1-1/4"
• Maximum Hull Thickness: 1"

Features:

• Glass-filled nylon construction for strength and durability
• 316 stainless steel components for superior corrosion resistance
• Available in straight or 90° configurations
• Barbed design for secure hose attachment
• Ideal for livewell systems, bilge pumps, washdown systems, and other marine plumbing applications

This thru-hull fitting is designed for reliable performance in harsh marine environments, combining the strength of glass-filled nylon with the corrosion resistance of 316 stainless steel hardware.
