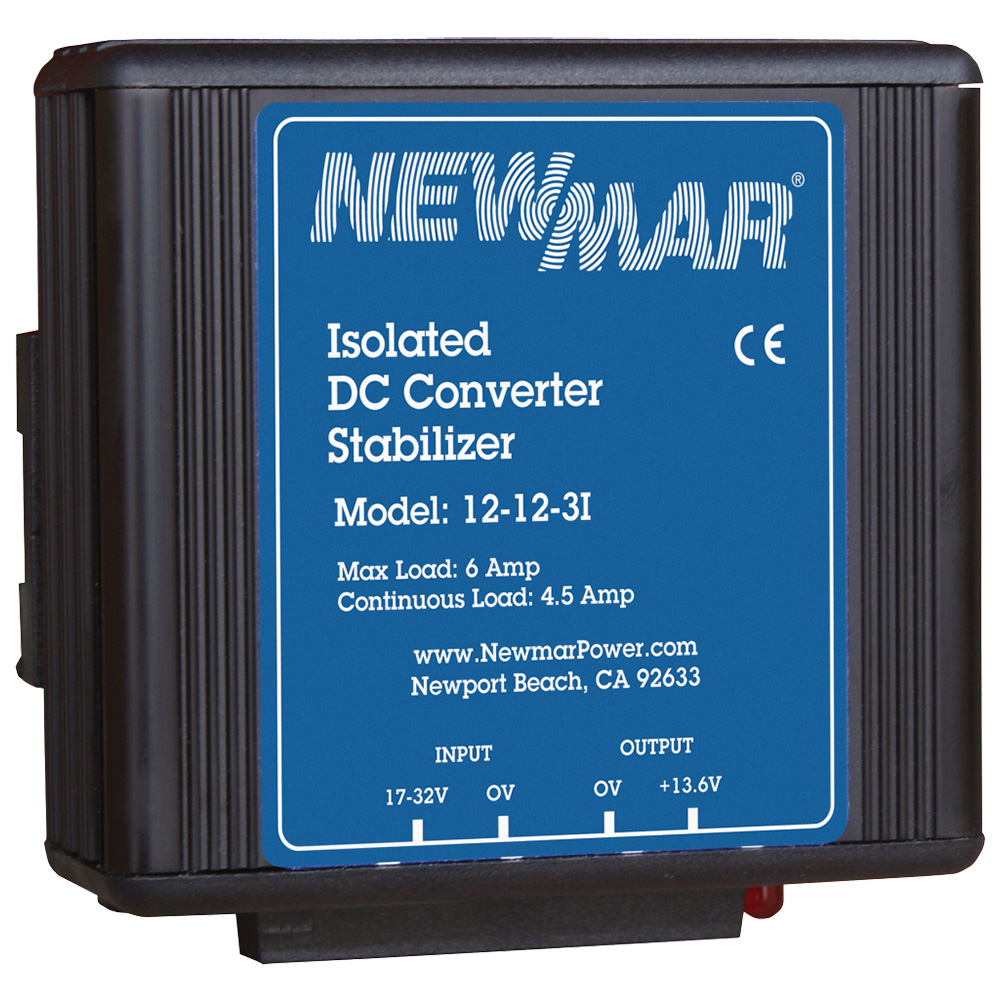

NewMar 12-12-3I DC-DC Power Stabilizer Converter 12V 3A

The NewMar 12-12-3I is a precision DC-DC power stabilizer designed to feed sensitive electronics with consistent, regulated voltage regardless of battery condition. This stabilizing converter provides continuous, precisely regulated 13.6V output over the entire range of a battery's usable voltage (10-16V input), preventing fluctuating input voltage that can cause equipment shutdown, diminished performance, or damage to sensitive circuitry.

Key Features:

• Operates electronics at optimal input voltage, even from nearly drained batteries
• Total input/output isolation virtually eliminates conducted line noise
• Permits connection of negative ground gear to positive or floating ground systems, or vice versa
• Boosts voltage to compensate for voltage drops in long wire runs from batteries
• Eliminates voltage drops during momentary high current drain, such as during engine start
• Can be modified for use as a battery charger for maintaining batteries at great distances from primary voltage source
• Rugged anodized aluminum heat sink case ideal for marine applications

Technical Specifications:

• Input Voltage: 10-16 VDC
• Input Current: 4A maximum
• Output Voltage: 13.6 VDC
• Output Current: 3A continuous, 3A intermittent
• Ripple: 150 mV peak-to-peak maximum
• Regulation: 1% line/load
• Switching Frequency: 40 kHz
• Efficiency: 85% typical
• Idle Current: Less than 100 mA (including power indicator light)
• Isolation: 250 VDC (output/chassis and input/chassis)
• Dimensions: 3.5" H x 3.5" W x 1.75" D
• Weight: 1 lb

Duty Cycle Ratings:

• Intermittent: 20 minutes maximum on time, 20% duty cycle with current limit set at approximately 105% of intermittent rating
• Continuous: 24 hours, 100% duty cycle
• Operating Temperature: 0-50°C (derate linearly from 100% at 40°C to 50% at 50°C; thermal shutdown at 70°C case temperature)

Construction:

• Anodized aluminum heat sink case
• Front panel terminal block for easy wiring
• Heavy-duty mounting flange
• Conformal-coated PC board for protection against moisture and contaminants

Available Options:

• Operation as battery charger (contact factory)
• Parallel/redundant operation capability (contact factory)
• Extreme vibration mounting kit for high-vibration vehicles (specify KIT-L for 2-15 lb units, KIT-H for 16-70 lb units)
• Non-standard output voltage (contact factory)

The 12-12-3I is ideal for marine, RV, and mobile applications where stable power is critical for navigation electronics, communication equipment, and other sensitive devices. This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.
