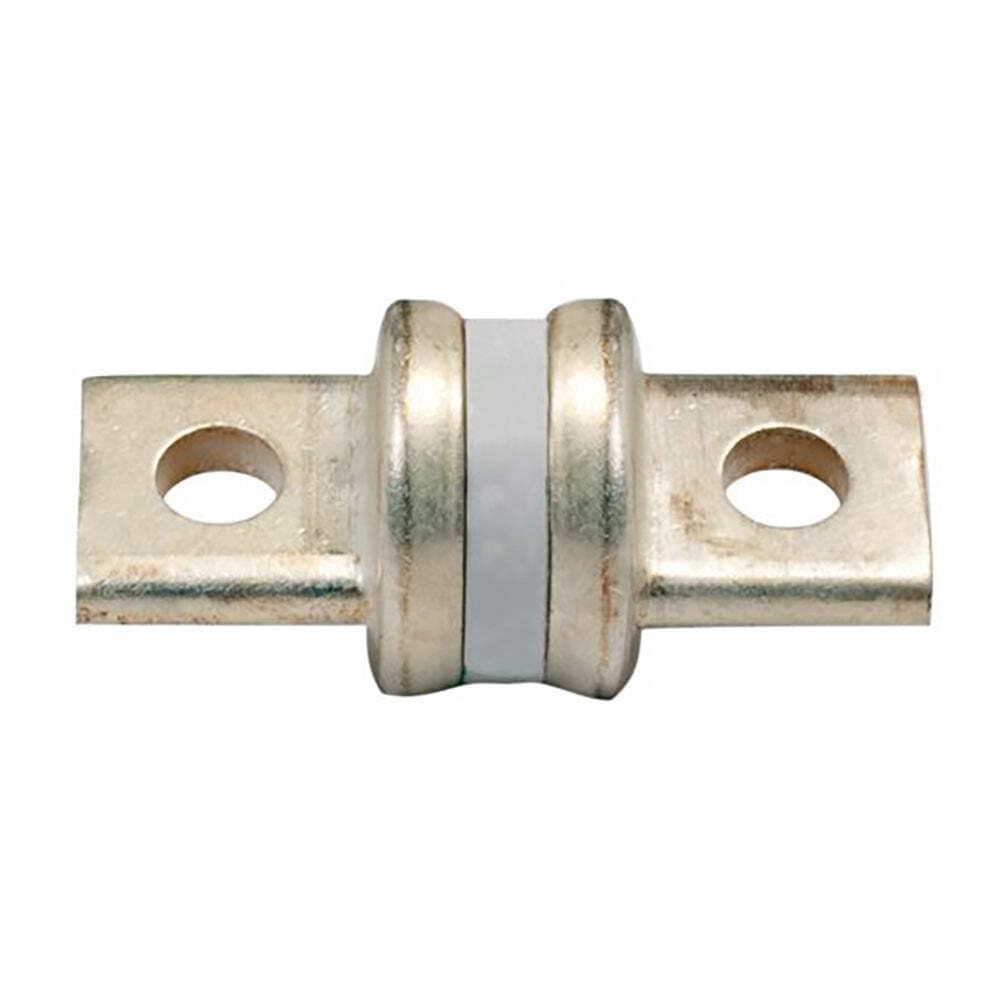

Samlex CLASS T-200 200 Amp Class T Replacement Fuse

The Samlex CLASS T-200 is a 200-amp Class T replacement fuse designed for use with Samlex power inverter systems and electrical distribution equipment. This individual replacement fuse provides overcurrent protection for high-amperage DC circuits commonly found in marine, RV, and solar power installations.

Key Features:

• 200-amp current rating for high-power applications
• Class T fuse design with fast-acting overcurrent protection
• Compatible with Samlex CFB2-400 fuse block assembly
• Compact dimensions for space-efficient installation
• UL recognized component for safety compliance

Applications:

• Power inverter protection and safety
• DC electrical system overcurrent protection
• Battery bank circuit protection
• Solar power system fusing

Specifications:

• Amperage Rating: 200 amps
• Fuse Type: Class T fast-acting
• Voltage Rating: 300V DC / 600V AC
• Interrupt Rating: 200kA AC
• Dimensions: 3" L x 1.25" W x 1.25" H
• Weight: 0.2 lbs

Class T fuses are current-limiting, fast-acting fuses that provide superior protection for power distribution equipment. This replacement fuse ensures your Samlex inverter system maintains proper overcurrent protection for safe, reliable operation.
