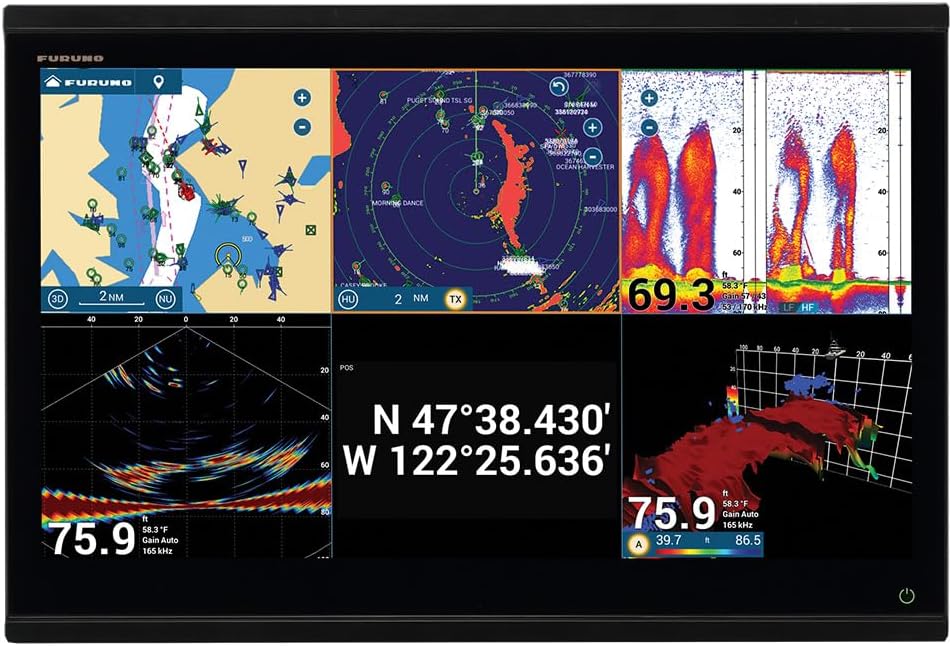

Furuno TZT22X 22" TZtouchXL Multi-Function Display with TouchScreen

The Furuno TZT22X is a premium 22-inch wide-screen multi-function display designed for serious boating enthusiasts who demand professional-grade navigation and fish-finding capabilities. Featuring an edge-to-edge all-glass display with exceptional clarity from all viewing angles, this TZtouchXL MFD combines powerful performance with intuitive operation to enhance both the functionality and style of any helm station.

Advanced Processing Power and Intuitive Interface:

Powered by a hexacore processor, the TZT22X delivers lightning-fast response times and can split the large 21.5-inch screen into up to six different windows simultaneously. The intuitive edge-swipe interface puts all essential features within reach—never more than a swipe and tap away from your most-accessed functions. With ten customizable Page Builder configurations, you can tailor your display layout to match your specific boating needs.

TZ MAPS Chart Technology:

The TZT22X features TZ MAPS, one of the most detailed charting systems available. Users have complete control over chart content including vector and raster charts, satellite imagery, and advanced bathymetric data. Purchase and update charts directly from the MFD when connected to the internet. BathyVision technology provides incredibly detailed bathymetric mapping with resolution down to 3 inches between contours—three times better than competing systems—creating the ultimate fishing charts when overlaid with custom depth shading.

AI Routing and Safety Features:

TZ MAPS unlocks intelligent AI Routing that automatically plans routes while considering your vessel's draft and navigational obstacles. When paired with an NXT radar, Risk Visualizer provides 360-degree visualization of potential collision risks with dynamic icons for high-risk targets, while the AI Avoidance Route function can automatically calculate safe routes around hazards and send them directly to compatible Furuno NavPilot autopilots.

Key Features:

• 21.5-inch wide color TFT multi-touch IPS LCD display with 1920 x 1080 Full HD resolution
• Bright 900 cd/m² screen with 16.7 million colors for chart plotting
• Hexacore processor for rapid system response and multi-window operation
• Compatible with TZ MAPS, MM3 Vector, and CMOR cartography
• Stores 30,000 user points, 100,000 track points, and 200 planned routes
• NMEA 2000 and NMEA 0183 connectivity for sensor integration
• Gigabit Ethernet LAN port for network expansion
• USB 3.0 port and HDMI video input/output capability
• Built-in WiFi (IEEE 802.11b/g/n) for wireless connectivity
• Video converter kits stream compatible sonar data directly to the display
• IP56 waterproof rating for reliable marine use
• Operating temperature range: -15°C to +55°C
• Multiple language support including English, Spanish, French, German, and more

Comprehensive Alarms and Monitoring:

The TZT22X includes essential safety alarms for anchor watch, cross-track error, depth, speed, sea surface temperature, trip distance, and fuel monitoring when connected to compatible sensors.

What's Included:

TZT22X display unit with mounting hardware and installation documentation.

Note: This product may not be returned to the original point of purchase. Please contact Furuno directly with any issues or concerns.
