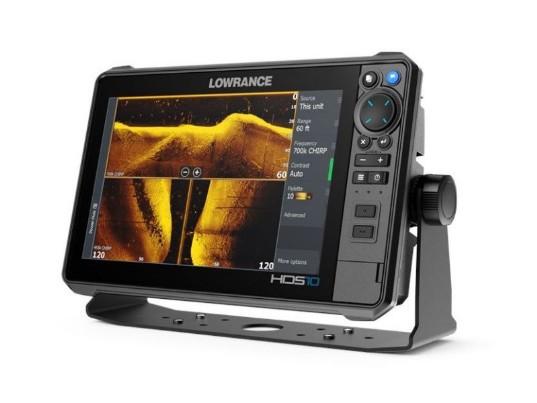

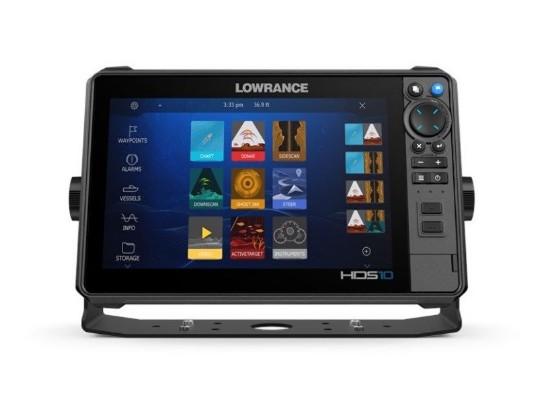

Lowrance 000-15999-001 HDS PRO 10 Fishfinder Chartplotter with C-MAP DISCOVER OnBoard

The Lowrance HDS PRO 10 fishfinder/chartplotter delivers professional-grade fish-finding technology with high-resolution ActiveTarget 2 Live Sonar support, ultra high-definition Active Imaging HD capabilities, and the latest C-MAP charts for expanded boat control from bow to stern. This model includes preloaded C-MAP DISCOVER OnBoard charts but does not include a transducer, allowing you to select the sonar system that best fits your fishing style.

Advanced Display Technology:

• SolarMAX HD touchscreen with 1280x720 resolution and over 1200 nits brightness, viewable at 80-degree angles from all directions and through polarized lenses
• 10-inch display with button-assist touchscreen interface for easy operation in any conditions
• Large programmable keys for customized quick access to your most-used features

Sonar and Imaging Capabilities:

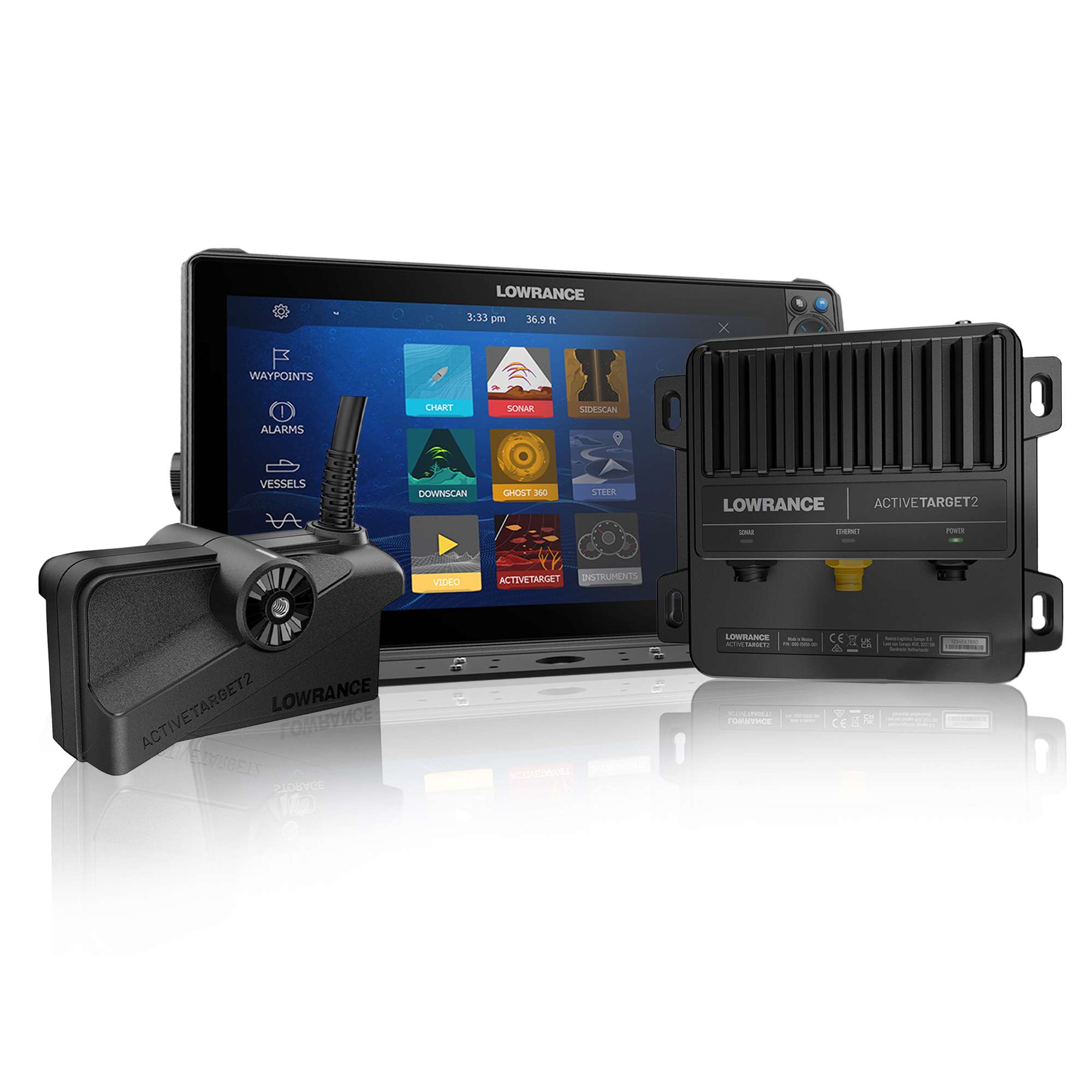

• Ready for high-resolution ActiveTarget 2 Live Sonar with 1.2MHz Active Imaging HD (requires transducer sold separately)
• FishReveal technology with SideScan view and DownScan capabilities (requires S3100 module and compatible transducer)
• Supports two ActiveTarget systems simultaneously for multiple live sonar views
• Compatible with CHIRP, SideScan, and DownScan Imaging sonar technologies

Preloaded Charts and Mapping:

• C-MAP DISCOVER OnBoard charts with 1-foot contours on over 19,000 US lakes and 9,400 Canadian lakes, plus high-resolution coastal coverage
• Real-time mapping available with C-MAP Genesis Live for custom bathymetric mapping
• Supports wide range of optional chart upgrades including C-MAP REVEAL, Navionics, and Florida Marine Tracks
• Stores up to 3,000 waypoints, 100 routes, and 100 trails with 10,000 points per trail

Boat Control and Connectivity:

• Chart overlay views for ActiveTarget Scout Mode and Ghost 360 trolling motor mode directly on the chart screen
• Touchscreen control of Power-Pole anchors, Ghost Trolling Motor, autopilot, and Lowrance Outboard Pilot
• NMEA 2000, WiFi, and Bluetooth connectivity with smartphone notifications

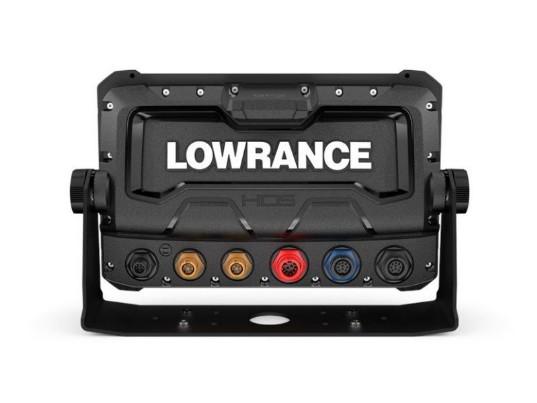

• Dual network ports and dual 9-pin xSonic sonar connections for expanded system integration
• Two microSD card slots (up to 32GB each) and 8GB internal storage

Specifications:

• Display: 10-inch with 1280x720 resolution
• Power: 10.8-17V DC input, 2.9A maximum draw at 13.8V
• Dimensions: 11.06" W x 7.6" H x 3.3" D
• Unit weight: 3.66 lbs
• Operating temperature: 5°F to 131°F (-15°C to 55°C)
• Waterproof rating: IPX7 with card door closed

Package includes the HDS PRO 10 fishfinder/chartplotter with 10-inch display and preloaded C-MAP DISCOVER OnBoard charts. Transducer, mounting hardware, and power cable sold separately.
