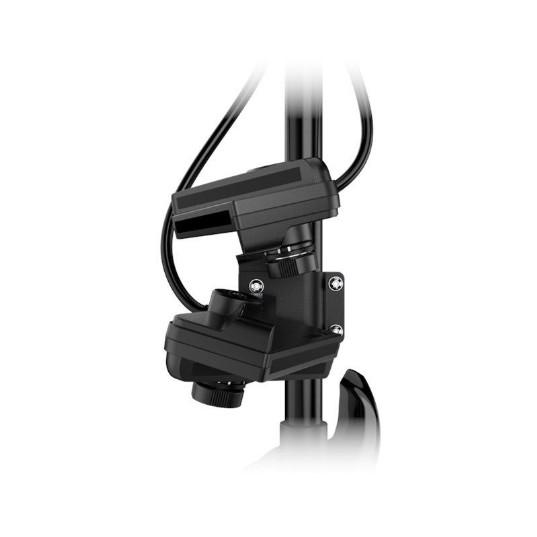

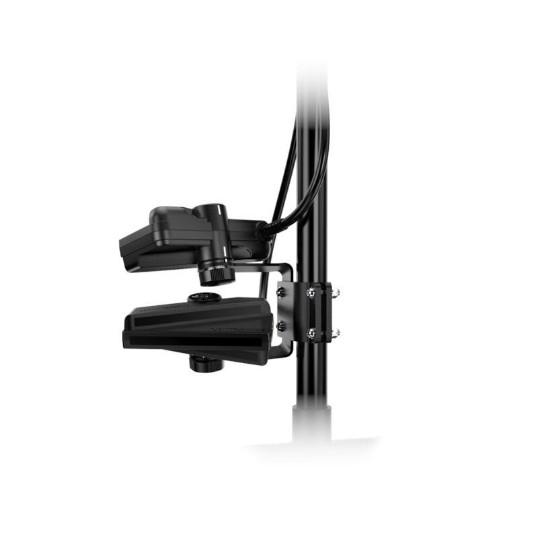

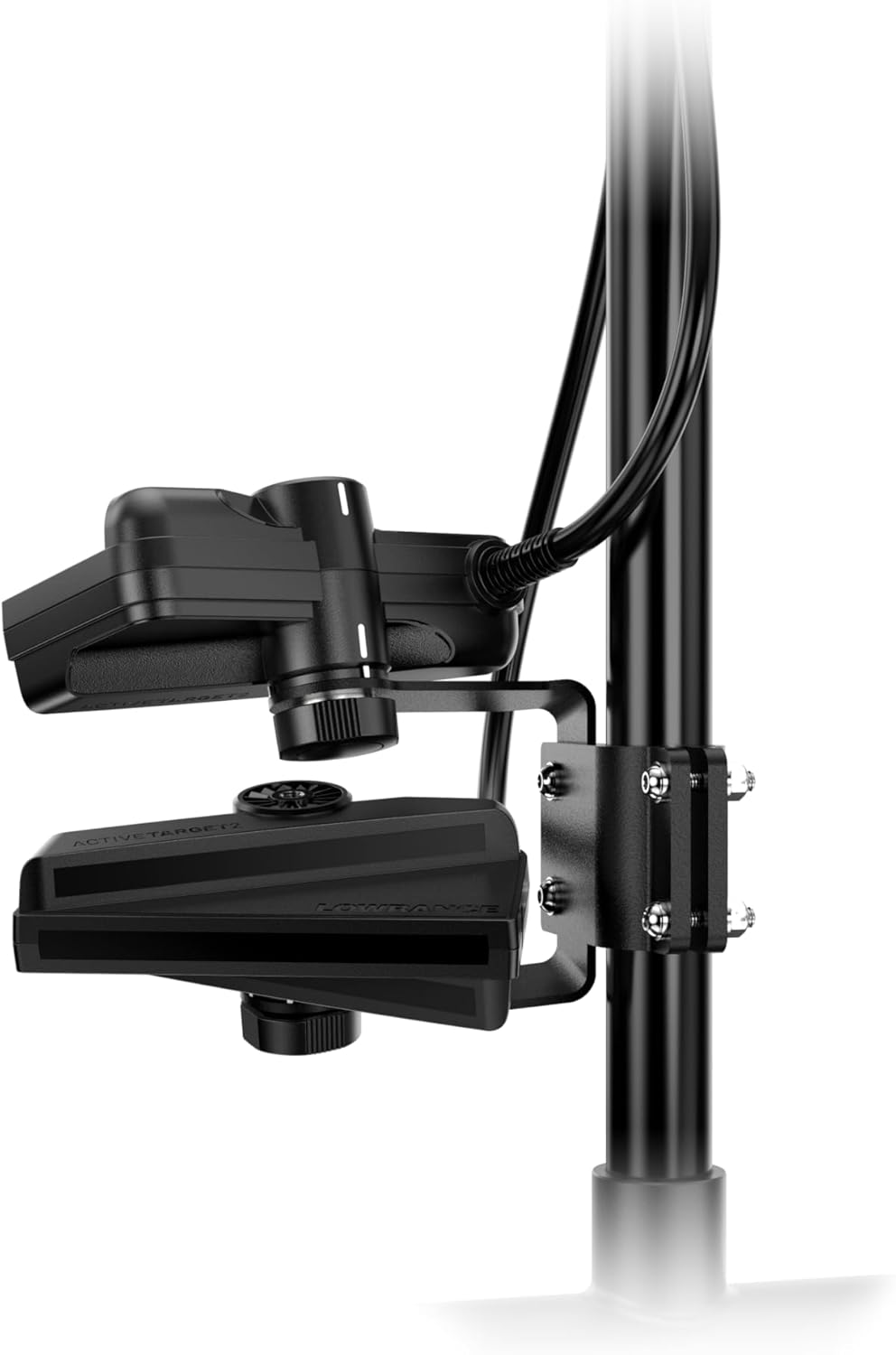

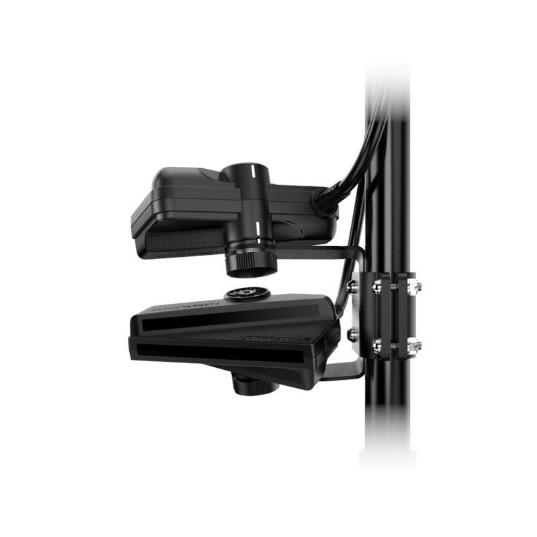

Lowrance 000-15960-001 ActiveTarget 2 Scout Wide Bracket

The Lowrance Scout Wide Bracket for ActiveTarget 2 enables an ultra-wide, overhead view of structure and fish activity in front of your boat. This specialized mounting bracket is designed specifically for Scout mode operation, allowing you to monitor bait balls and large schools of fish with enhanced coverage. When paired with a second optional ActiveTarget 2 transducer, you can enable Scout Wide views showing images out to 180 degrees for more effective fish and bait tracking.

ActiveTarget 2 Live Sonar Technology:

ActiveTarget 2 delivers the highest resolution, widest, and clearest live views of fish and structure available. Watch fish respond to your lure in real-time, allowing you to make quick adjustments that help you catch more fish. See everything from the fish striking your lure to reeling it to the surface in incredible detail.

Key Features:

• High-resolution, live-action images clearly reveal underwater activity in real time
• Widest underwater imaging for quicker interpretation and faster fish location
• Optimized image and stabilization settings deliver crisp views even in rough conditions
• Enhanced beam widths show more detailed images further from the boat
• Multiple viewing modes: Forward, Down, and Scout for complete underwater coverage
• Compatible with HDS LIVE, HDS Carbon, Elite FS, and HDS Pro displays

Technical Specifications:

• Connectivity: 100 Mbit Ethernet port
• Power Supply: 10.8-31.2 VDC
• Power Consumption: 1.5A @ 13.8VDC
• Recommended Fuse: 3A
• Operating Temperature: -15°C to 55°C (5°F to 131°F)
• Waterproof Rating: IP67
• Module Dimensions: 8.63" W × 7.56" H × 2.86" D
• Transducer Dimensions: 5.90" × 3.24" × 2.28"
• Module Weight: 4.12 lbs
• Transducer Weight: 2.67 lbs
• Warranty: 1 year standard + 4 additional years of upgrade options (5 years total)
