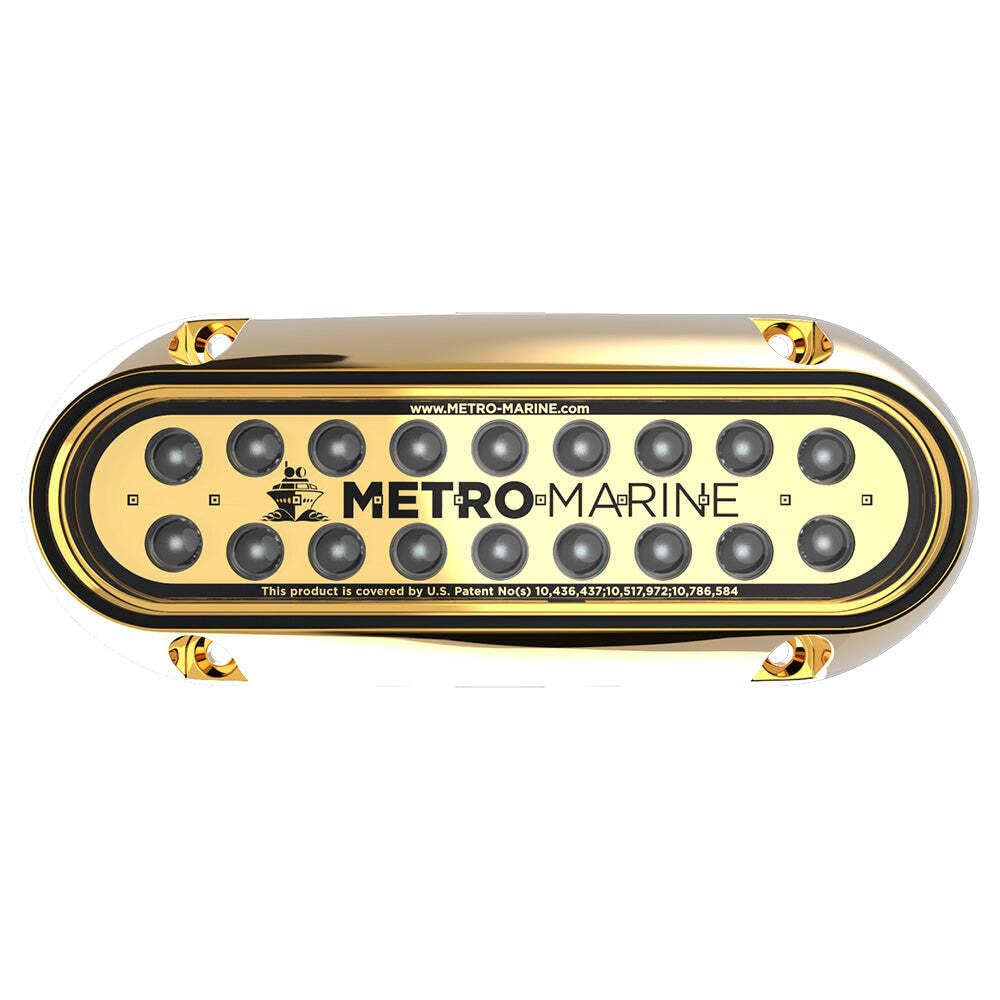

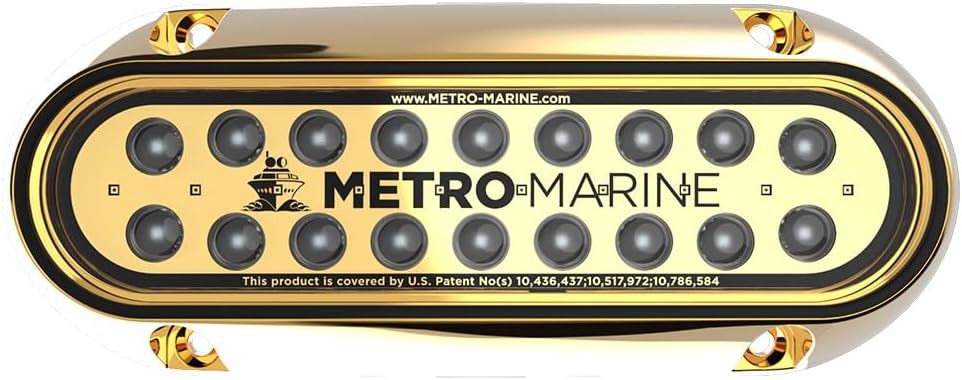

The Metro Marine F-BME1-H-A3-90 is a high-output elongated underwater lighting fixture featuring intelligent monochromatic LED technology in aqua with a 90° beam angle. Designed for marine applications, this fixture can be mounted up to 4.6 meters (15 feet) below the water's surface, making it ideal for yachts, docks, sea walls, fountains, and theme park installations.
Advanced LED Array Technology:
This fixture features 18 high-output LEDs arranged in a unique array that allows for close adjacent fixture placement while delivering fully-mixed, uniform aqua light. The 90° optical lensing makes it perfect for illuminating mid- to large-scale structures and yachts ranging from 10 meters (32 feet) to 30 meters (100 feet) in length.
Clear Lens Technology:
Metro Marine's patented UVC LED system actively prevents biofouling growth on the clear quartz lenses, keeping them crystal clear and preventing the overheating issues common with traditional underwater lighting fixtures.
Anti-Condensation Design:
Manufactured in a Class 1000 Clean Room using Metro Marine's patent-pending assembly methodology, this fixture completely eliminates internal condensation that can cause corrosion and failure in underwater lighting systems.
Marine-Grade Construction:
Built with a watertight aluminum bronze housing and silicon bronze hardware for maximum corrosion resistance and durability in harsh marine environments.
Technical Specifications:
- Beam Angle: 90°
- Input Voltage: 10-30 VDC
- Power Consumption: 45.5W
- Lens Material: Clear Quartz
- Operating Temperature: -40°F to 122°F
- Maximum Depth: 4.6 meters (15 feet)
- LED Count: 18 High-Output Monochromatic LEDs
- Color: Aqua
