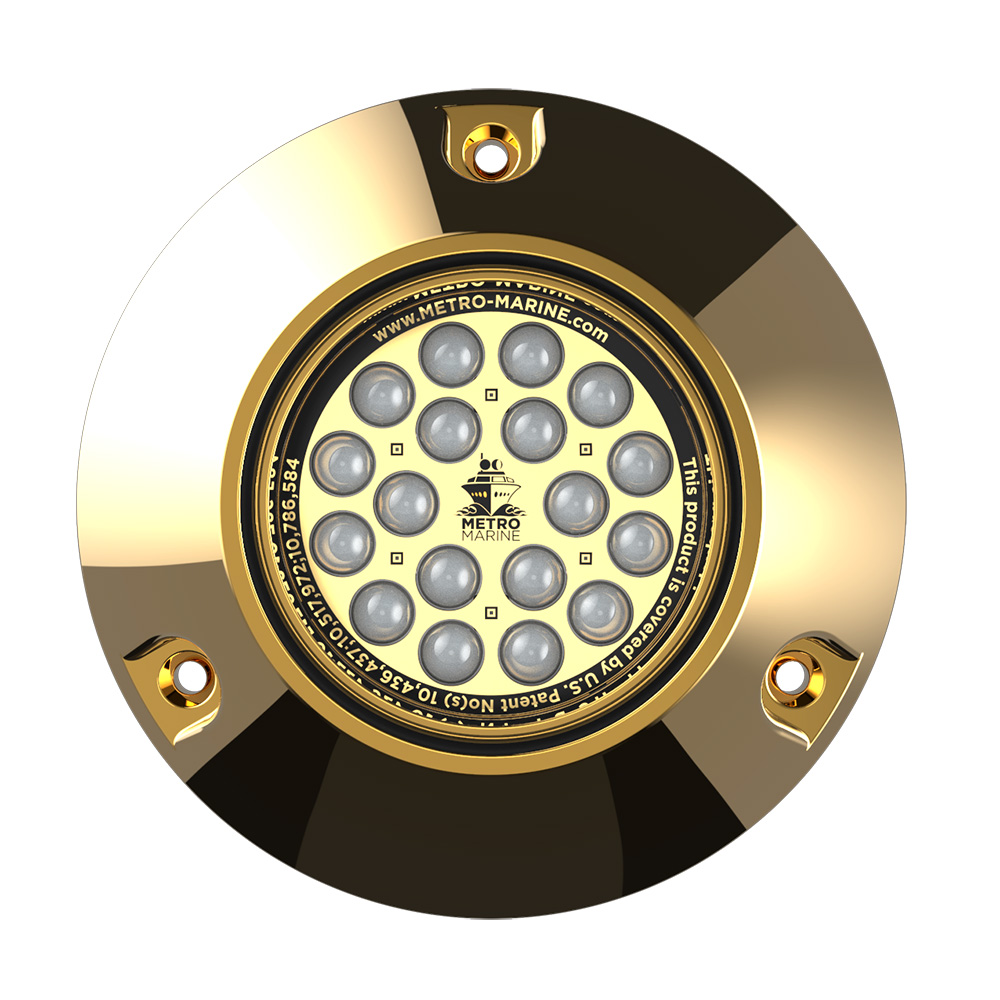

The Metro Marine F-BMR1-A3-45 is a high-output submersible underwater lighting fixture featuring intelligent monochromatic LED technology in aqua with a 45° beam angle. Engineered for marine applications, this F-Series luminaire is designed for mounting at depths up to 4.6M (15 feet) below the water's surface, making it ideal for yachts, docks, sea walls, fountains, and theme park installations.
Advanced LED Array Technology:
This fixture features a unique LED array with 18 high-output LEDs, allowing for close adjacent fixture placement where fully-mixed, uniform light distribution is critical. The 45° optical lensing makes it particularly well-suited for lighting mid- to large-scale structures and yachts ranging from 10M (32 feet) to 30M (100 feet) in length.
Marine-Grade Construction:
- Watertight aluminum bronze housing with silicon bronze hardware for superior corrosion resistance
- Clear quartz lens material for maximum light transmission and durability
- Manufactured in a Class 1000 Clean Room environment
- Patent-pending anti-condensation assembly methodology eliminates internal moisture
Patented UVC Clear Lens Technology:
Metro Marine's innovative system utilizes UVC LEDs to prevent biofouling growth on the lens surface. This patented technology keeps the lens crystal clear, preventing light blockage and fixture overheating that plague conventional underwater lighting systems.
Technical Specifications:
- Input Voltage: 10-30 VDC
- Power Consumption: 44 watts
- Beam Angle: 45 degrees
- Operating Temperature Range: -40°F to 122°F
- Fixture Diameter: 5.47 inches
- Fixture Depth: 1.12 inches
- Weight: 2.71 lbs
- Maximum Submersion Depth: 15 feet
This underwater LED luminaire delivers vibrant aqua lighting with uniform color control and high efficiency, backed by Metro Marine's legacy of innovation in optics and LED control technology.
