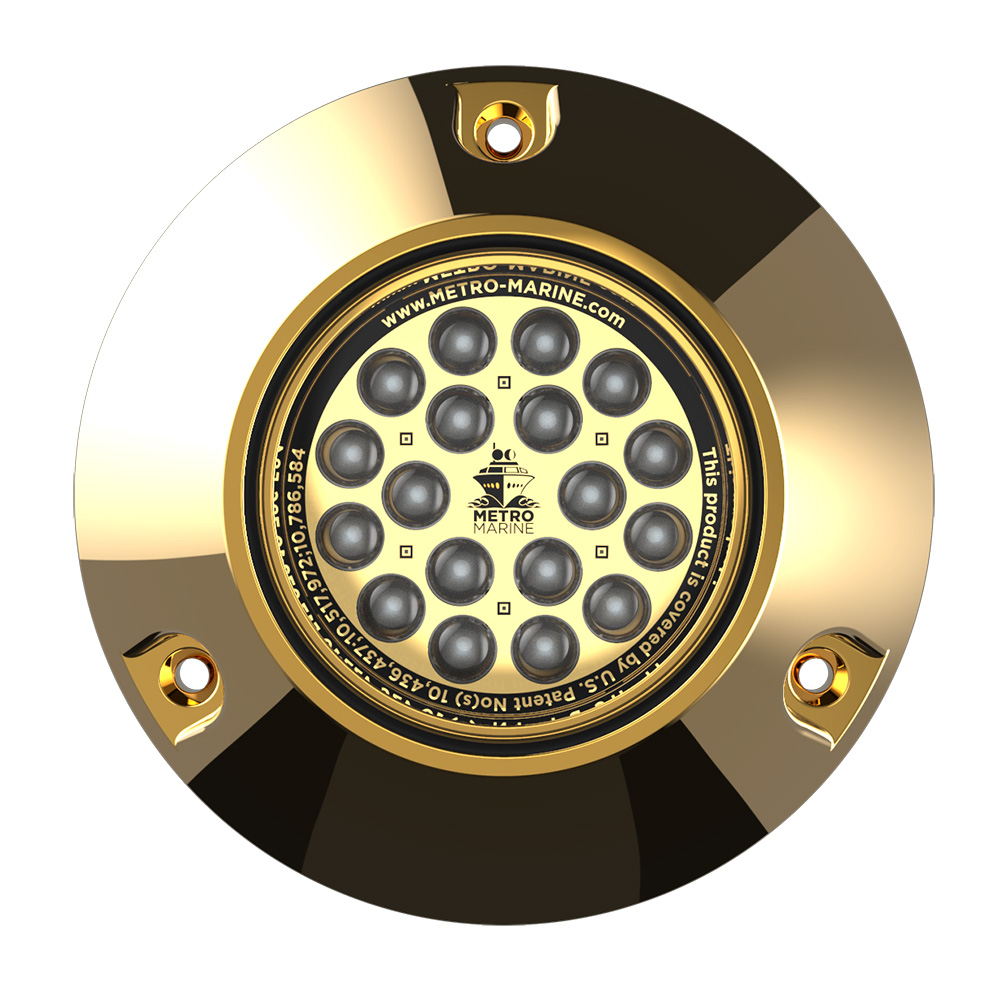

The Metro Marine F-BMR1-A3-90 is a high-output submersible underwater LED lighting fixture designed for marine applications up to 15 feet below the surface. This premium luminaire features intelligent monochromatic LED technology that delivers vibrant aqua illumination with a 90-degree beam angle, making it ideal for mid- to large-scale installations including yachts ranging from 32 to 100 feet, docks, sea walls, fountains, and theme park water features.
Advanced LED Array Technology:
- 18 high-output monochromatic LEDs per fixture for uniform, fully-mixed light output
- 90-degree optical lensing provides wide, even coverage for larger structures
- 44-watt power consumption with high efficiency operation
- 10-30VDC input voltage range for flexible power system integration
Patented Self-Cleaning Lens System:
Metro Marine's innovative UVC LED technology actively prevents biofouling and algae growth on the clear quartz lens surface. This patented system keeps the lens crystal clear indefinitely, preventing light blockage and overheating issues common with traditional underwater fixtures.
Marine-Grade Construction:
- Watertight aluminum bronze housing for exceptional corrosion resistance
- Silicon bronze hardware designed for saltwater environments
- Clear quartz lens material for superior light transmission and durability
- Patent-pending anti-condensation assembly methodology eliminates internal moisture
- Manufactured in Class 1000 Clean Room for zero condensation guarantee
Technical Specifications:
- Color: Aqua (monochromatic)
- Beam Angle: 90 degrees
- Power Consumption: 44W
- Input Voltage: 10-30VDC
- Dimensions: 5.47" diameter x 1.12" depth
- Weight: 2.71 lbs
- Operating Temperature: -40°F to 122°F
- Maximum Depth: 15 feet (4.6 meters)
The F-Series underwater lighting system represents Metro Marine's commitment to innovation in marine LED technology, combining advanced optics, intelligent control systems, and maintenance-free operation for professional-grade underwater illumination.
