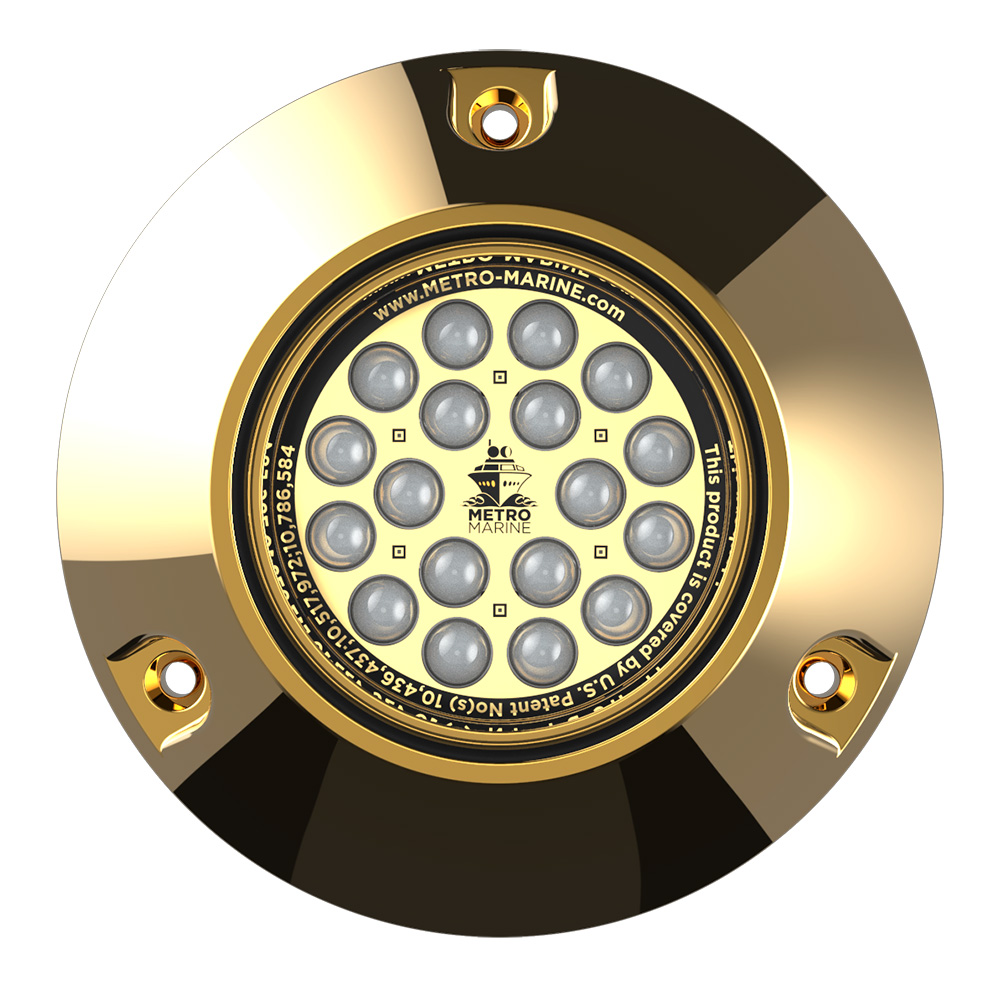

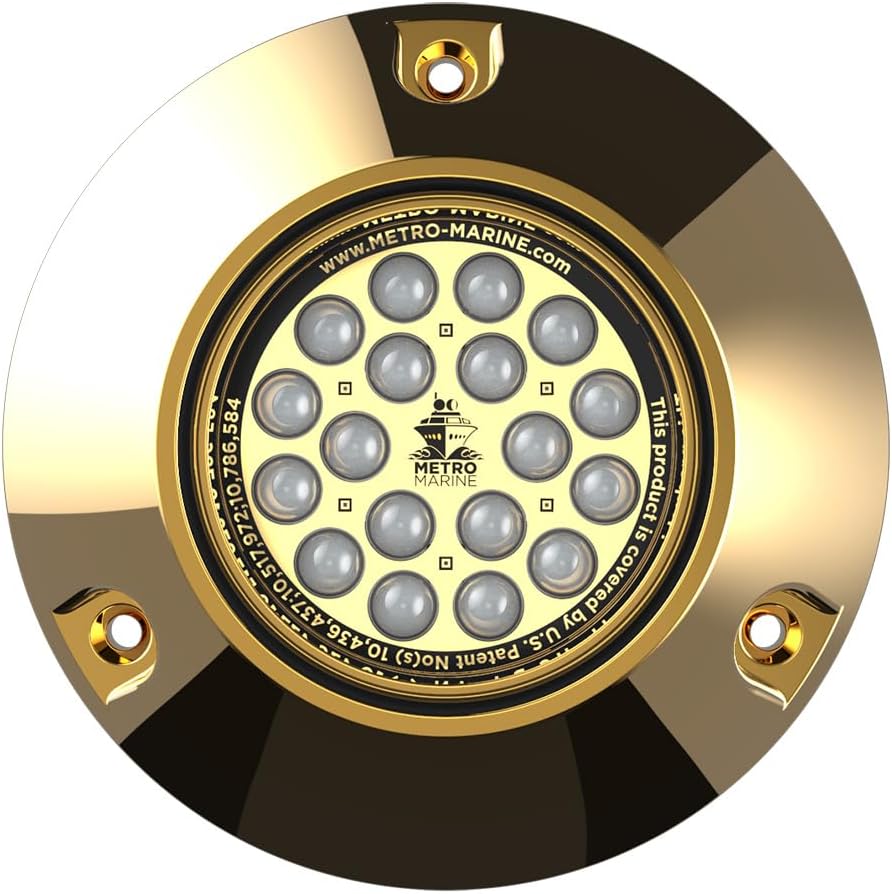

The Metro Marine F-BMR1-B3-45 is a high-output submersible underwater lighting fixture featuring intelligent monochromatic blue LEDs with a 45-degree beam angle. Designed for depths up to 4.6 meters (15 feet) below the water's surface, this luminaire delivers vibrant blue illumination ideal for yachts, docks, sea walls, fountains, and theme park installations.
Advanced LED Array Technology:
The F-Series fixture incorporates a unique LED array with 18 high-output LEDs, enabling close adjacent placement for fully-mixed, uniform light distribution. The 45-degree optical lensing makes this luminaire perfect for illuminating mid- to large-scale structures and yachts ranging from 10 meters (32 feet) to 30 meters (100 feet) with superior color uniformity and high efficiency.
Marine-Grade Construction:
- Watertight aluminum bronze housing for maximum corrosion resistance
- Silicon bronze hardware rated for harsh marine environments
- Clear quartz lens material for superior light transmission
- Operating temperature range: -40°F to 122°F
Patented Clear Lens Technology:
Metro Marine's innovative system utilizes UVC LEDs to prevent biofouling growth on the lens surface. This patented technology keeps the lenses crystal clear by eliminating the aggressive organic growth that typically blocks light output and causes fixtures to overheat.
Anti-Condensation Design:
Manufactured in a Class 1000 clean room environment, these fixtures feature a patent-pending assembly methodology that completely eliminates internal condensation. This prevents the internal corrosion that destroys conventional underwater lighting fixtures from the inside out.
Technical Specifications:
- Beam angle: 45 degrees
- Input voltage: 10-30 VDC
- Power consumption: 44 watts
- Dimensions: 5.47 inches diameter x 1.12 inches depth
- Weight: 2.71 pounds
- 18 high-output blue LEDs
This fixture is ideal for marine applications requiring reliable, long-lasting underwater illumination with minimal maintenance requirements.
