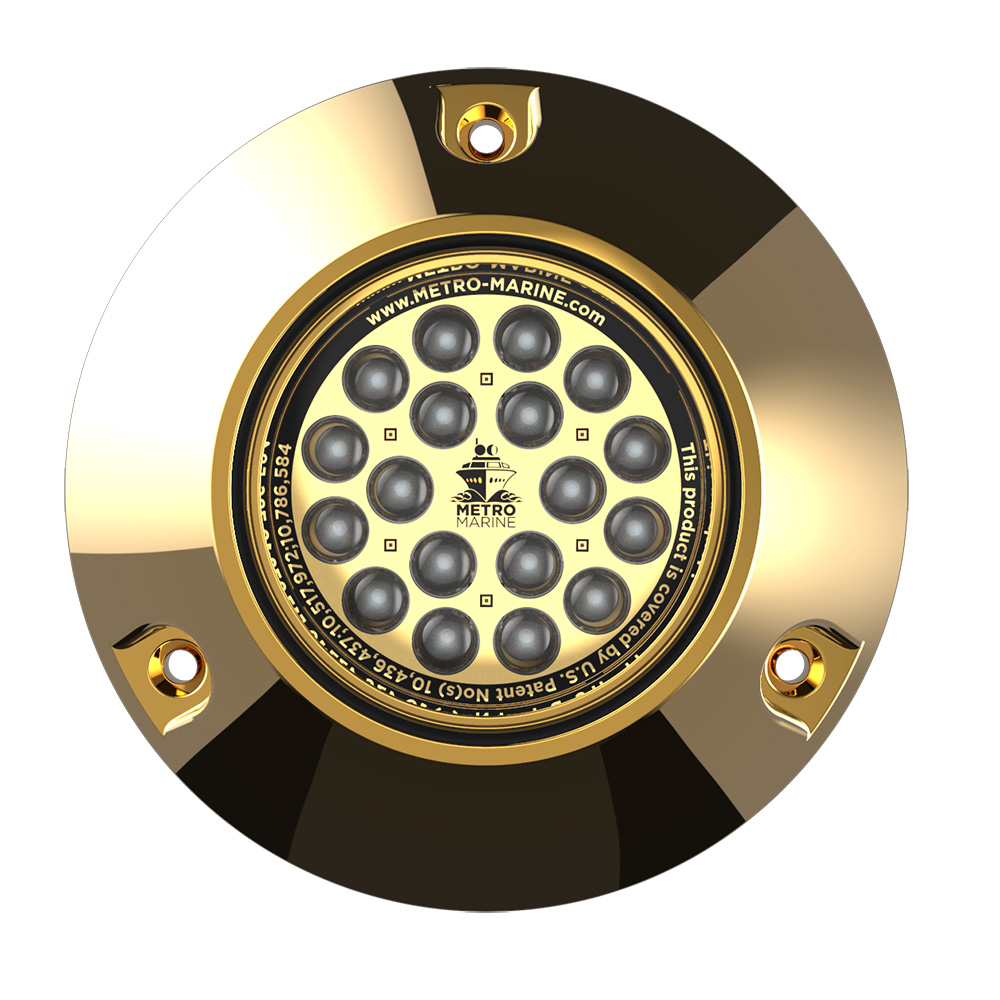

The Metro Marine F-BMR1-B3-90 is a high-output submersible underwater lighting fixture featuring intelligent monochromatic blue LEDs with a 90° beam angle. Engineered for marine environments, this fixture is designed for installation at depths up to 4.6 meters (15 feet) below the water's surface, delivering vibrant blue illumination for yachts, docks, sea walls, fountains, and theme park installations.
Superior Marine Construction:
- Watertight aluminum bronze housing with silicon bronze hardware for maximum corrosion resistance
- 18 high-output LEDs per fixture enabling close adjacent placement with fully-mixed, uniform light output
- Ideal for mid- to large-scale structures and yachts ranging from 10M (32') to 30M (100')
- Clear quartz lens material for superior light transmission and durability
Patented Clear Lens Technology:
Metro Marine's innovative UVC LED system actively prevents biofouling growth on the lens surface, keeping the fixture crystal clear and preventing the overheating issues commonly caused by algae and marine growth accumulation.
Anti-Condensation Design:
Manufactured in a Class 1000 Clean Room environment, each fixture utilizes Metro Marine's patent-pending assembly methodology that completely eliminates internal condensation, preventing the corrosion that destroys conventional underwater fixtures from the inside out.
Technical Specifications:
- Beam Angle: 90°
- Input Voltage: 10-30 VDC
- Power Consumption: 44W
- Dimensions: 5.47" diameter x 1.12" depth
- Weight: 2.71 lbs
- Lens Material: Clear Quartz
- Operating Temperature Range: -40°F to 122°F
- Maximum Depth Rating: 15 feet (4.6 meters)
This premium underwater LED fixture combines Metro Marine's legacy of optical innovation with advanced LED control technology, delivering reliable, maintenance-free performance in demanding marine environments.
