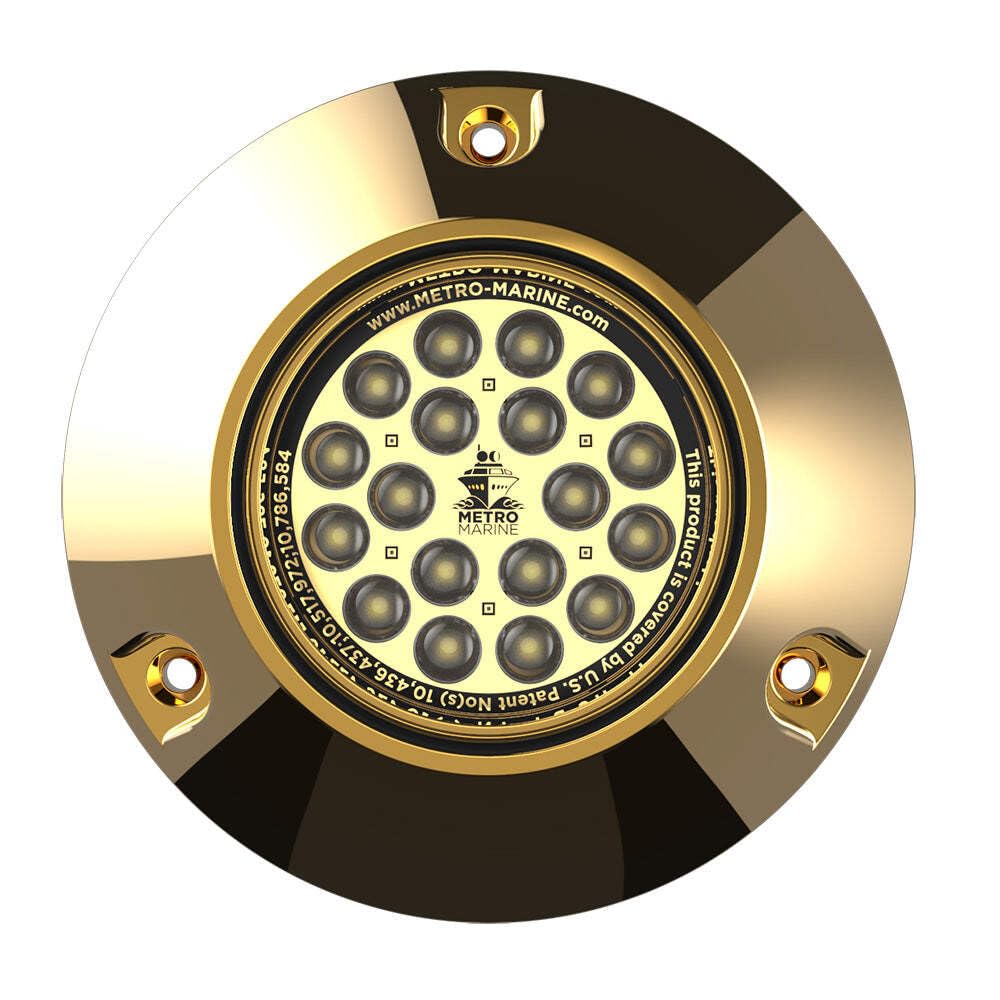

The Metro Marine F-BMR1-W3-90 is a high-output submersible underwater LED lighting fixture engineered for marine environments. Designed for installation at depths up to 4.6 meters (15 feet) below the water's surface, this intelligent monochromatic white LED luminaire delivers vibrant, uniform illumination ideal for yachts, docks, sea walls, fountains, and theme park installations.
Advanced LED Array Technology:
This fixture features a unique 18 high-output LED array that enables close adjacent fixture placement while maintaining fully-mixed, uniform light distribution. The 90° optical lensing provides excellent coverage for mid- to large-scale applications, including yachts ranging from 10 meters (32 feet) to 30 meters (100 feet) in length.
Marine-Grade Construction:
Built with a watertight aluminum bronze housing and silicon bronze hardware, the F-BMR1-W3-90 is engineered to withstand harsh marine environments. The clear quartz lens material provides superior durability and optical clarity in underwater applications.
Patented Clear Lens Technology:
Metro Marine's innovative UVC LED system actively prevents biofouling growth on the fixture lens, eliminating the light-blocking algae and organic buildup that commonly plagues underwater lighting. This patented technology keeps lenses crystal clear and prevents overheating caused by blocked light output.
Anti-Condensation Design:
Manufactured in a Class 1000 Clean Room environment, each fixture utilizes Metro Marine's patent-pending assembly methodology that completely eliminates internal condensation. This prevents the internal corrosion that can destroy underwater fixtures from the inside out, ensuring long-term reliability.
Technical Specifications:
- Beam Angle: 90 degrees
- Input Voltage: 10-30 VDC
- Power Consumption: 44 watts
- Lens Material: Clear quartz
- Operating Temperature Range: -40°F to 122°F
- Housing Material: Aluminum bronze with silicon bronze hardware
- LED Configuration: 18 high-output monochromatic white LEDs
- Maximum Depth Rating: 4.6 meters (15 feet)
