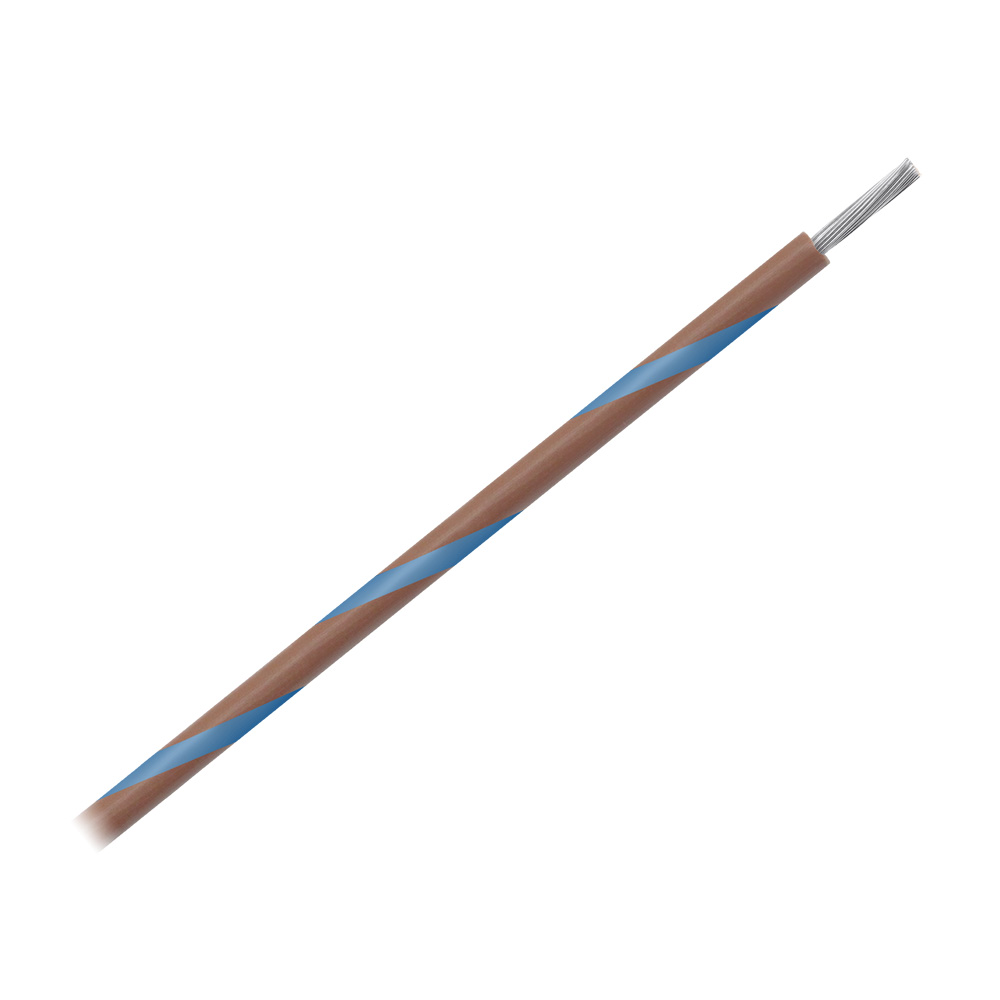

Pacer Performance WUL16BR-6-500 16 AWG Marine Wire Brown with Blue Stripe 500 ft

The Pacer Performance WUL16BR-6-500 is a professional-grade 16 AWG striped marine wire designed for reliable electrical installations in marine, automotive, and industrial applications. This 500-foot spool features brown wire with a blue stripe for easy circuit identification in complex wiring systems.

Manufactured in Sarasota, Florida, USA, this marine-grade wire is constructed with Type III Class K annealed, finely stranded tinned copper conductors per ASTM B172 standards. The tinned copper construction provides superior corrosion resistance in harsh marine environments. The highly flexible, color-coded PVC insulation jacket maintains flexibility in temperatures ranging from -20°C to 105°C while resisting acids, alkalis, abrasion, flame, gasoline, oil, and moisture.

Key Features:

• Stranded tinned copper conductors for maximum flexibility and corrosion resistance
• Brown wire with blue stripe for easy circuit identification
• Highly flexible color-coded PVC insulation
• 600-volt rated for demanding applications
• Resistant to acids, alkalis, abrasion, flame, gasoline, oil, and moisture
• Made in USA

Technical Specifications:

• Wire Gauge: 16 AWG
• Spool Length: 500 feet
• Conductor Material: Annealed finely stranded tinned copper (ASTM B172 Class K)
• Insulation Type: Flexible, color-coded PVC
• Temperature Rating: 105°C dry, 75°C wet, 60°C oil
• Voltage Rating: 600V
• Insulation Temperature Range: -20°C to 105°C

Applications:

• Point-to-point wiring in marine vessels
• Internal wiring of electrical panels and motors
• Automotive electrical systems
• RV and trailer wiring
• General marine electrical installations

Certifications and Compliance:

• UL Standard 1426 (BC-5W2)
• UL AWM 1015/1230
• UL AWM 1028/1231
• MTW rated
• CSA: TEW
• ABYC: E-8.14, E-9.14
• U.S. Coast Guard: 33 CFR Part 183
• NMMA compliant

This striped marine wire is ideal for applications requiring multiple wire runs where easy identification is critical for installation efficiency and future troubleshooting. Pacer Performance offers over 100 color and stripe combinations in 16 AWG marine wire to meet any wiring identification needs.
