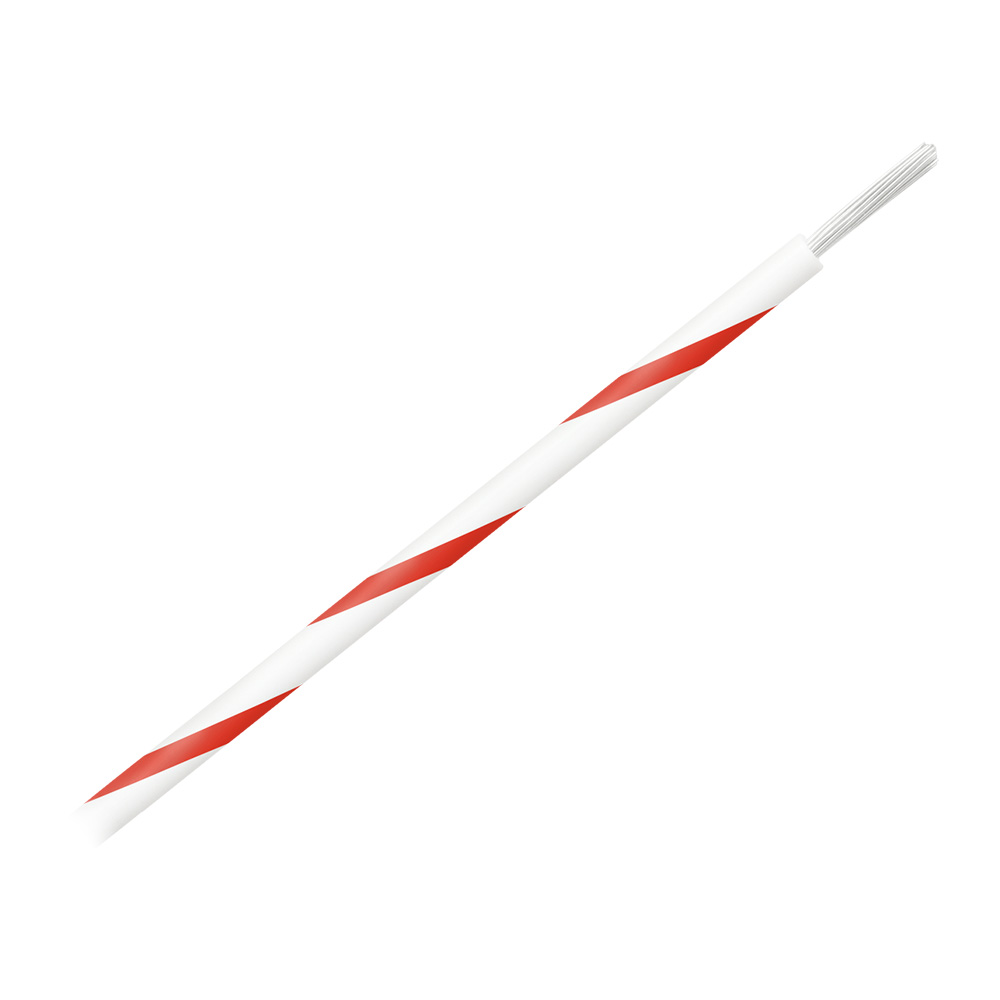

Pacer Performance WUL16WH-2-500 Marine Wire 16 AWG White with Red Stripe 500 ft Spool

The Pacer Performance WUL16WH-2-500 is a 500-foot spool of 16 AWG marine-grade wire featuring white insulation with a red stripe for easy identification in complex wiring installations. Manufactured in Sarasota, Florida, USA, this premium marine wire is constructed from Type III Class K tinned copper conductors that resist corrosion in harsh marine environments.

Key Features:

• Stranded, tinned copper conductors per ASTM B172 Class K specifications for maximum flexibility and corrosion resistance
• Highly flexible, color-coded PVC insulation with red stripe for quick wire identification
• Resistant to acid, alkali, abrasion, flame, gasoline, oil, and moisture
• Manufactured in the USA to exacting quality standards
• Temperature rated: 105°C dry, 75°C wet, 60°C oil environments
• 600-volt rating for demanding electrical applications

Technical Specifications:

• Wire Gauge: 16 AWG
• Spool Length: 500 feet
• Conductor Material: Annealed finely stranded tinned copper
• Insulation Material: Flexible PVC (-20°C to 105°C)
• Color: White with red stripe
• Voltage Rating: 600V

Applications:

• Marine electrical systems and boat wiring
• Point-to-point wiring installations
• Internal wiring of electrical panels and motors
• Automotive and RV electrical systems

Certifications & Compliance:

• UL Standard 1426 (BC-5W2)
• AWM 1015/1230 and AWM 1028/1231
• MTW and CSA TEW rated
• ABYC Standards E-8.14 and E-9.14
• U.S. Coast Guard 33 CFR Part 183 compliant
• Meets NMMA requirements

Striped marine wire is ideal for installations with multiple circuits, making troubleshooting and maintenance significantly easier. The white base with red stripe combination is part of Pacer's extensive selection of over 100 striped wire configurations, ensuring you can create a comprehensive color-coding system for any project.
