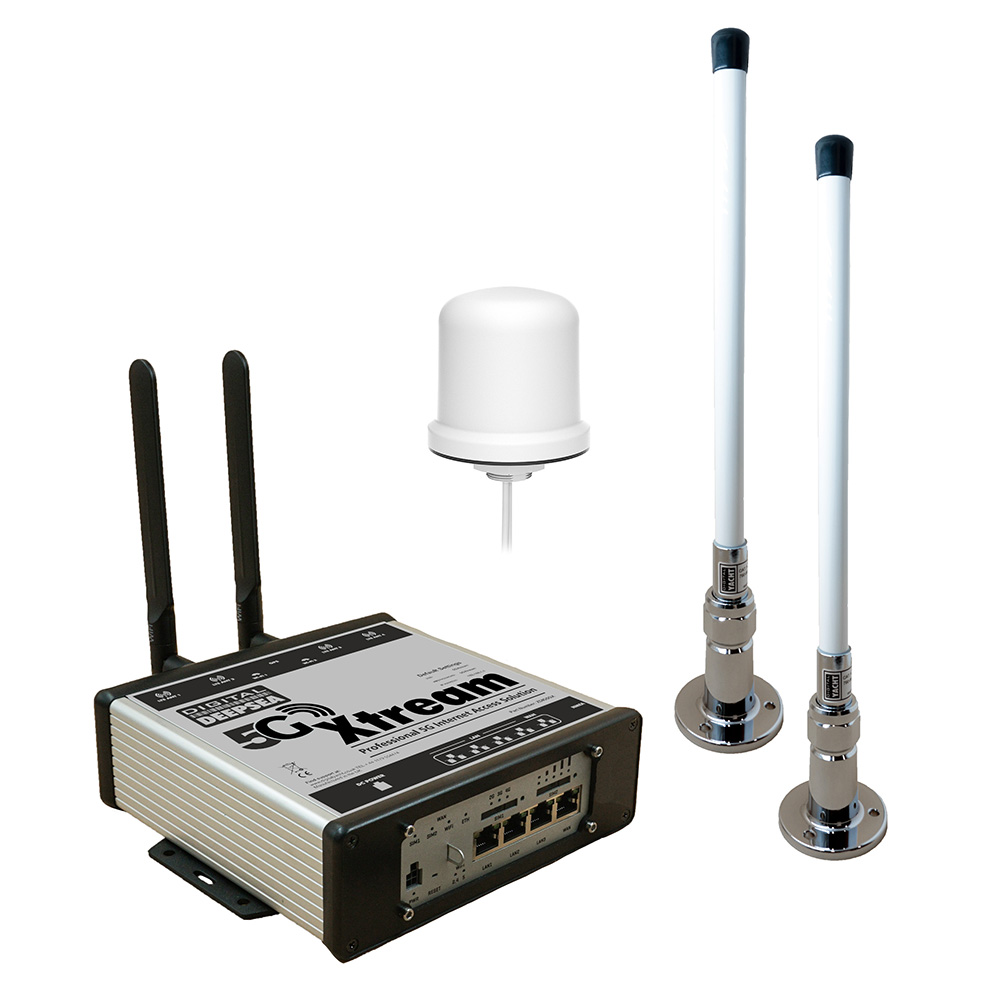

Digital Yacht ZDIG5GX 5G Xtream Marine Internet Router System with 3 Antennas

The Digital Yacht 5G Xtream offers ultra-fast 4G and 5G connectivity for boat owners, with integration for Starlink satellite systems to create the most affordable blended internet solution afloat. This advanced marine router supports 5G shoreside connection speeds up to 3.1GB/s and integrates a 4G Cat 20 modem offering connectivity up to 25 nautical miles from shore at speeds up to 2GB/s.

Advanced Antenna System:

The system uses three external antennas with dual high-gain vertical antennas and a separate compact dome for the higher 5G frequencies. This MIMO technology with separate antennas provides optimum performance. The complete kit includes two external antennas with E179F antenna bases, two 7-meter LMR200 antenna cables (N male to N male), and one 5G dual element dome antenna with pole/1-inch adapter mount and integrated 7-meter cables.

Dual SIM Capability:

The 5G Xtream supports dual SIMs with automatic failover or manual switching between operators. It features dual-band (2.4 and 5GHz) wireless connections, allowing users on board to simply search for the secure WiFi point and connect.

Professional Features:

• User management, VPNs, blacklists, and IoT applications for advanced users
• NMEA 0183/2000 data connectivity using Digital Yacht's LANLink devices
• Integrated GPS for SMS reporting of boat position, geofence, and drift alerts when at anchor or in port
• Easy web interface for accessing functionality
• Supports multiple 5G and 4G LTE bands including 5G (NSA/SA): n1, n3, n5, n7, n8, n20, n28, n38, n40, n41, n77, n78
• Four LAN 10/100 Ethernet ports, one WAN 10/100 Ethernet port, and WiFi 802.11 b/g/n/ac

Simple Configuration:

The Digital Yacht 5G Xtream is supplied as a complete solution with antennas, mounts, and cabling—all that's additionally required is a cellular SIM card. The system will automatically query the installed SIM and select the APN settings from its internal database.

What's Included:

• 5G Xtream modem unit
• DC Power/IO cable
• Two external antennas with mounting bases
• Two 7-meter LMR200 antenna cables
• One 5G dual element dome antenna with mount and integrated cables
• Two internal WiFi antennas
• One internal GPS antenna
