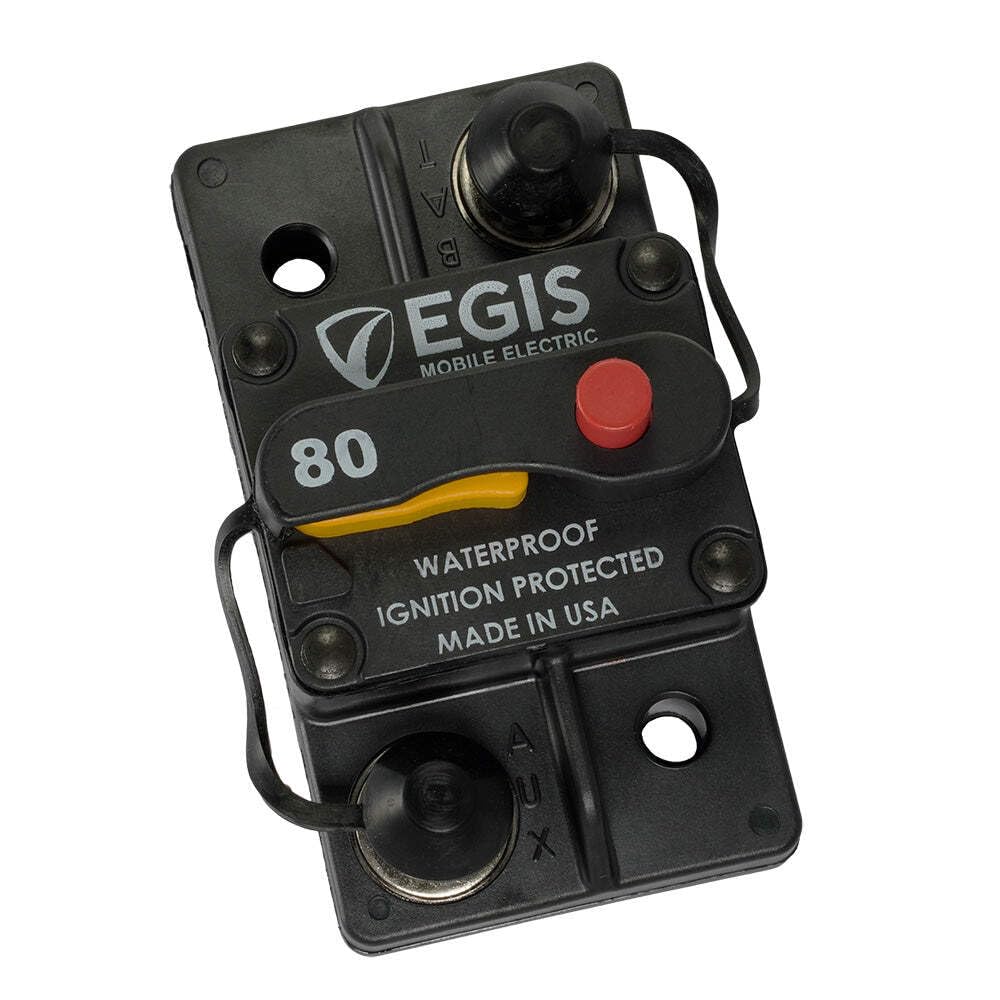

Egis Mobile Electric 4703-080 80A Surface Mount Circuit Breaker 285 Series

The Egis Mobile Electric 80A Surface Mount Circuit Breaker from the 285 Series provides reliable protection for electrical circuits against short-circuit events and over-current loads, preventing wire insulation damage and potential system failure. This compact breaker combines automatic circuit protection with manual on/off switching functionality in a single, rugged unit designed for marine, RV, and mobile power applications.

Key Features:

• IP67 sealed construction protects against dust and water intrusion for long-term reliability in harsh environments
• High voltage 48 VDC rating supports 12V, 24V, 36V, and 48V DC systems
• High interrupt current capacity safely protects circuits connected to large paralleled battery banks (5,000A at 16 VDC, 3,000A at 28 VDC)
• Exceptional electrical and manual switching endurance rated for 6,000 full-current cycles
• Integrated terminal insulators prevent inadvertent shorts to adjacent grounded surfaces
• Stainless steel hardware with serrated flange nuts provides corrosion and vibration resistance
• High-visibility ON/OFF controls with high temperature rating for all installation locations
• Allows for convenient circuit isolation and maintenance adjacent to battery systems

Technical Specifications:

• Continuous Current Rating: 80 Amps
• Maximum Voltage: 48 VDC
• Cycling Endurance: 6,000 cycles at full current
• Interrupt Current: 5,000A at 16 VDC / 3,000A at 28 VDC
• Ingress Protection: IP67
• Construction: Surface mount design
• Warranty: 4 years

Proudly manufactured in the USA from high-quality components, this circuit breaker delivers dual functionality as both a protection device and manual disconnect switch in a compact, reliable package suitable for demanding mobile and marine electrical systems.
