Egis Mobile Electric 8830-1939 XD Series Triple Flex 2 Mechanical Switch ACR with Knobs

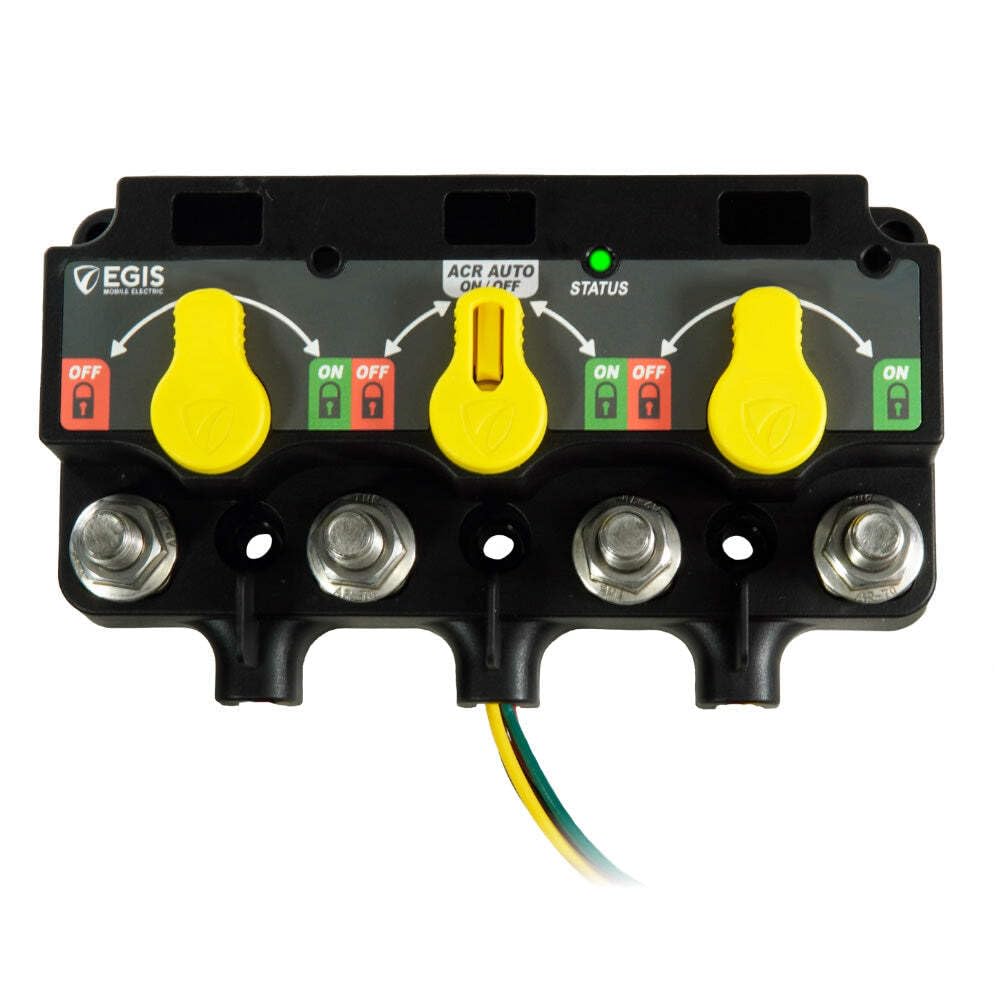

The Egis Mobile Electric XD Series Triple Flex 2 mechanical switch ACR (automatic charging relay) with knobs and a DTM connector replaces three individual high-amp relays with one compact module. This saves space, eliminates external link cable connections that can vibrate loose, and gives clear indication of how the manual controls are set and what state they have forced the relay into.

Applications:

• Designed to replace common multi-battery mechanical switching and charge management setups. Dual battery load switching through the outer relays and a central automatic charging relay that shares charge current are easily implemented.
• Expandable with link and cross-link busbars to additional dual, triple, or single XD relays, supporting 3 or 4 battery systems with standard busbar interconnect accessories.

Features:

• Sealed to IP67/IP6K9K, with high-temperature electronics and materials that allow mounting almost anywhere
• Stainless steel cable lug studs; large mounting holes accept 1/4-20 / M6 hardware
• 3-position manual override: force each relay open or closed, or leave the knob in either position to lock the relay in that condition
• Simple programming via dip switches, located under the protective cover, with a configuration guide on the reverse
• Bi-stable solenoid design with multiple solenoid assemblies, giving a 35-75% reduction in mounting space and product weight versus common electrical system layouts
• 90-95% less off-state current than competitive products and multi-device solutions
• DTM connector with pins compatible with ML Series bi-stable relays
• Front-facing LED status indicator, with a remote LED that replicates the on-device LED
• Integrated Gore-style vent regulates internal pressure to keep moisture from entering across the seals

Specifications:

• Total continuous current: 500 A
• Max cranking current: 1500 A
• Mechanical switching life: 1,000,000 cycles
• Voltage range: 8-36 VDC
• Off-state current draw: 1.3 mA
• State change current: 5 A @ 12 VDC; 3 A @ 24 VDC

Included:

• Protective cover that shields terminal studs and cable terminal edges from shorts to each other or to ground
• 40-circuit weatherproof label sheet, including blank labels for custom applications
• Stainless steel studs and self-locking flanged nuts
